www.teejet.com

FieldPilot

2. MoUNt ValVe BraCKet oN VehiCle

The mounting bracket

(P)

will be positioned on the right side of the frame of the tractor just forward of the

battery box. There are square holes punched in the tractor frame. Select the third hole forward of the battery

box to mount the valve. Attach the bracket to the frame of the tractor using the bolt

(M)

with washer

(J)

and

nut

(O)

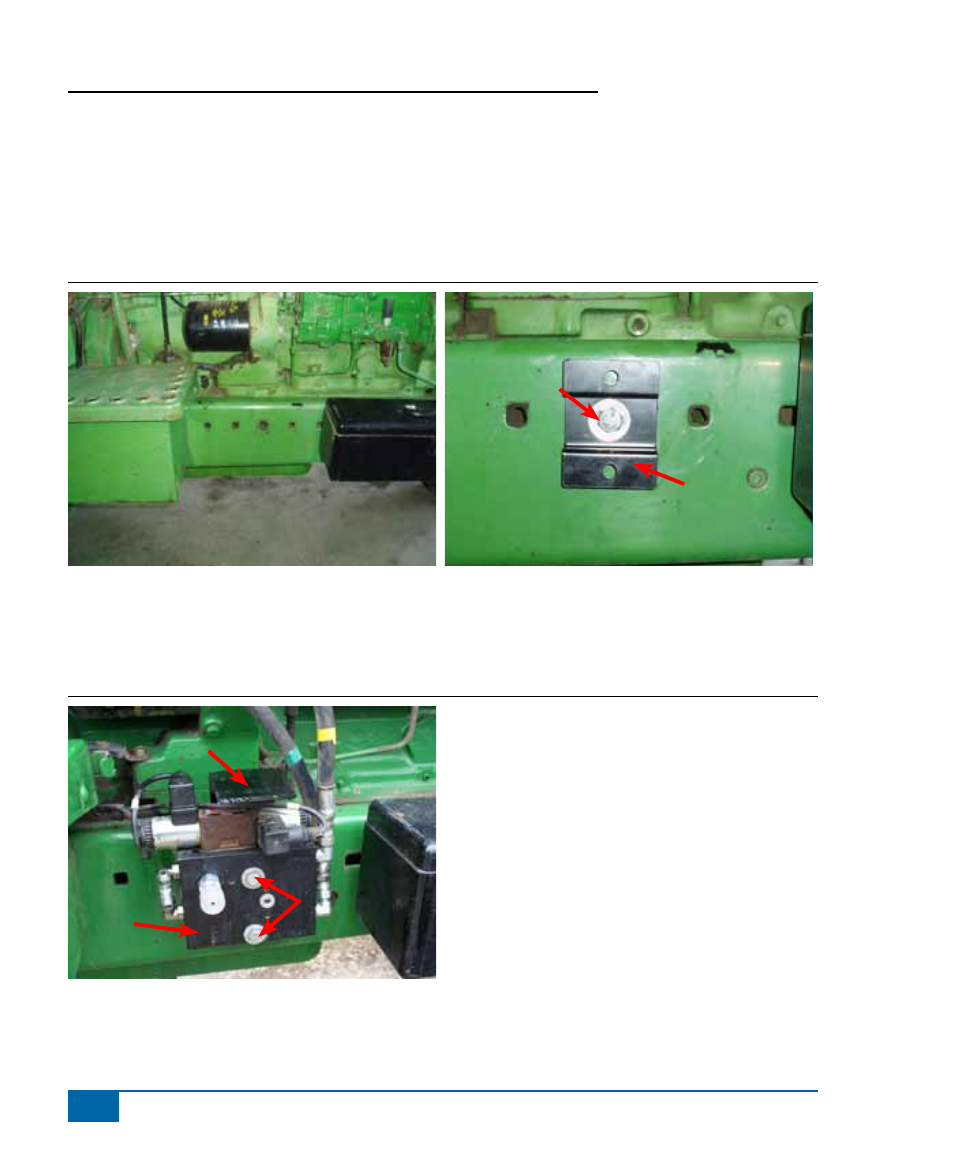

Figure 1-3: Mount Valve Bracket on Vehicle

3. iNstall the FieldPilot ValVe aNd PrrV BraCKet

Using the bolts

(K)

, washers

(C)

and nuts

(N)

, fasten the FieldPilot Valve

(E)

and bracket

(Q)

to the

bracket

(P)

Figure 1-4: Install the FieldPilot Valve and PRRV Bracket

K, C, N

M, J, o
