Page 15
www.teejet.com
14
FieldPilot
®
8. iNstall steeriNg hoses aNd adaPters
Disconnect the two steel lines that are at the firewall just below the windshield. Install run tees
(Z)
and
reconnect the original steel line to the run of the tee. Connect a hose
(S)
to each of the branches of the run
tee and route them down and connect to the A & B ports of the FieldPilot valve.

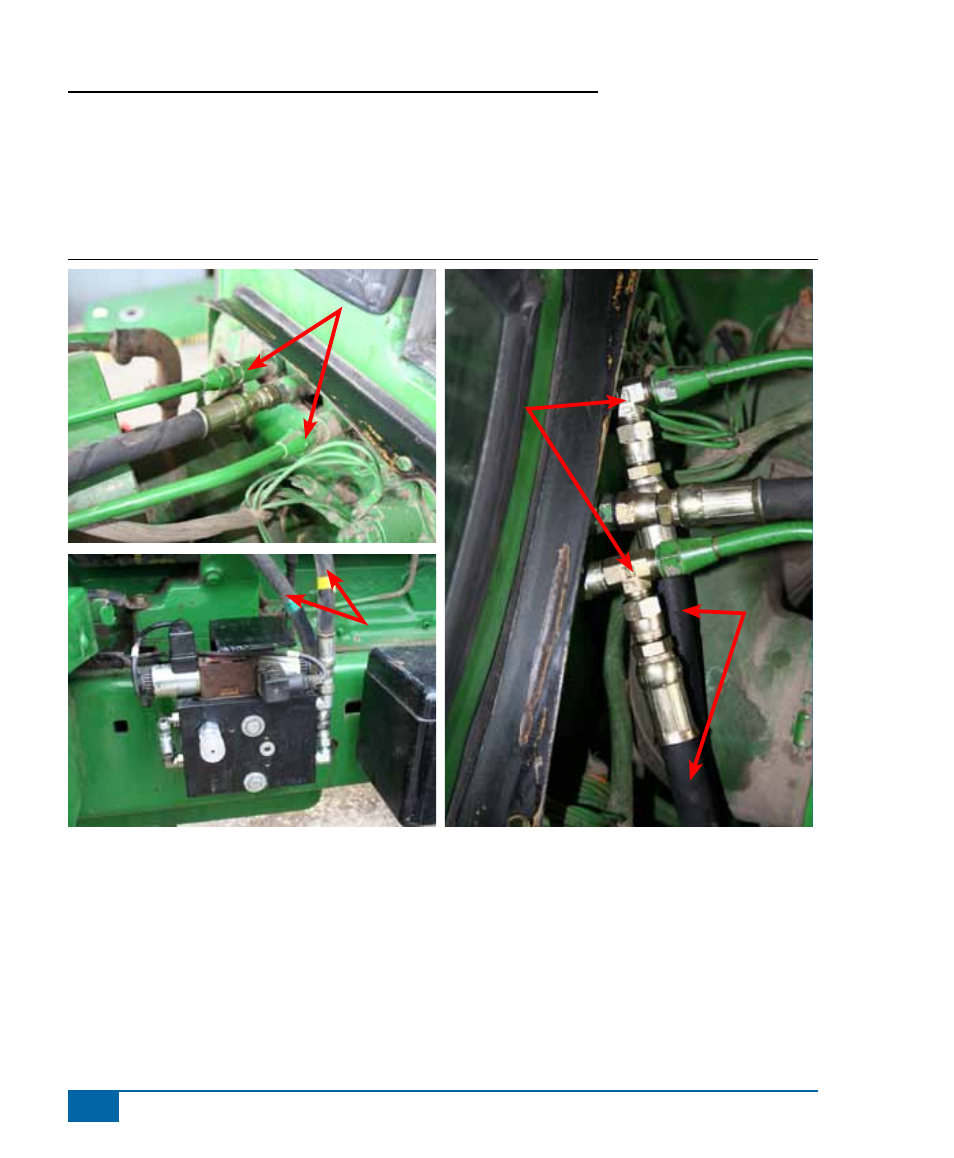

Figure 1-9: Install Steering Hoses and Adapters
disconnect
s
s
Z
