12. RECOMMENDED ELECTRONICS INSTALLATION
The Steering Control Module (SCM) should be mounted securely to the floor of the cab. A good location
is to the right of the seat near the rear of the cab. The control console can be mounted to the operator’s
preference. The GPS antenna should be mounted as far forward as possible on top of the cab on a metal
surface of at least 4” square.

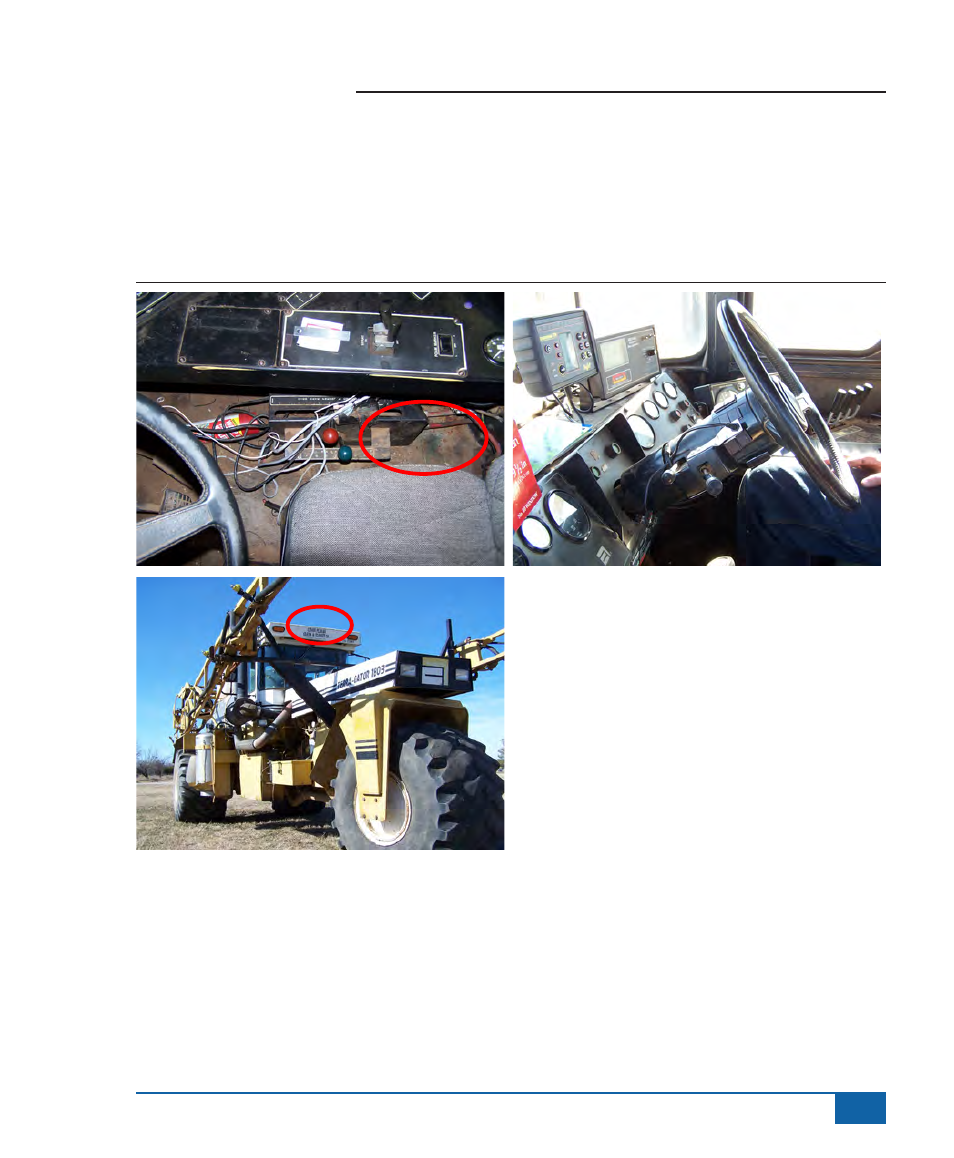

Figure 1-17: Recommended Electronics Installation
Console
GPS Antenna
