FieldPilot
®
7. FIELDPILOT VALVE HOSE CONNECTIONS
The Pressure port of the FieldPilot Valve
(E)
will be connected to the PR port on the steering pump. Refer
to the hydraulic system diagram Figure 1-1 to understand where the FieldPilot Valve
(E)
should fit in the
system.

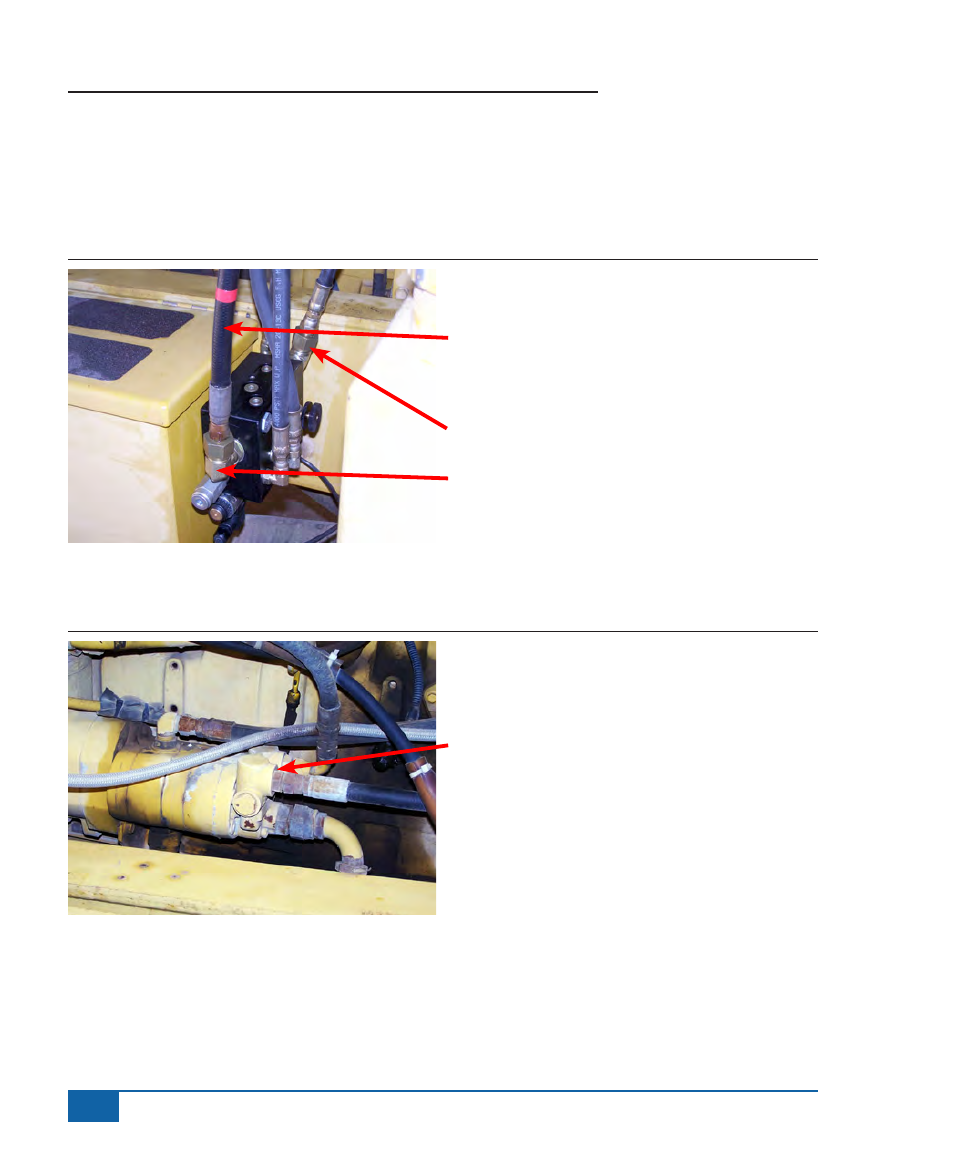

Figure 1-10: Pressure Line Connection
Hose removed from
PR port of the pump
Pressure
Excess Flow
Remove the hose from the PR port on the pump. This hose is then connected to the EF port of the FieldPilot
Valve
(E)
. Install hose
(Q)
between the PR port on the pump and the P port on the FieldPilot Valve
(E)
.
Figure 1-11: PR Port of the Steering Pump
PR port on the
steering pump
