FieldPilot

6. PREPARE PORTS ON STEERING ORBITAL VALVE

The Pressure and Tank ports on the steering orbital valve are the two ports on the top of the steering orbital

valve. The Tank port is the one closest to the firewall of the cab. The left and right steering orbital valve ports

are underneath the Pressure and Tank ports.

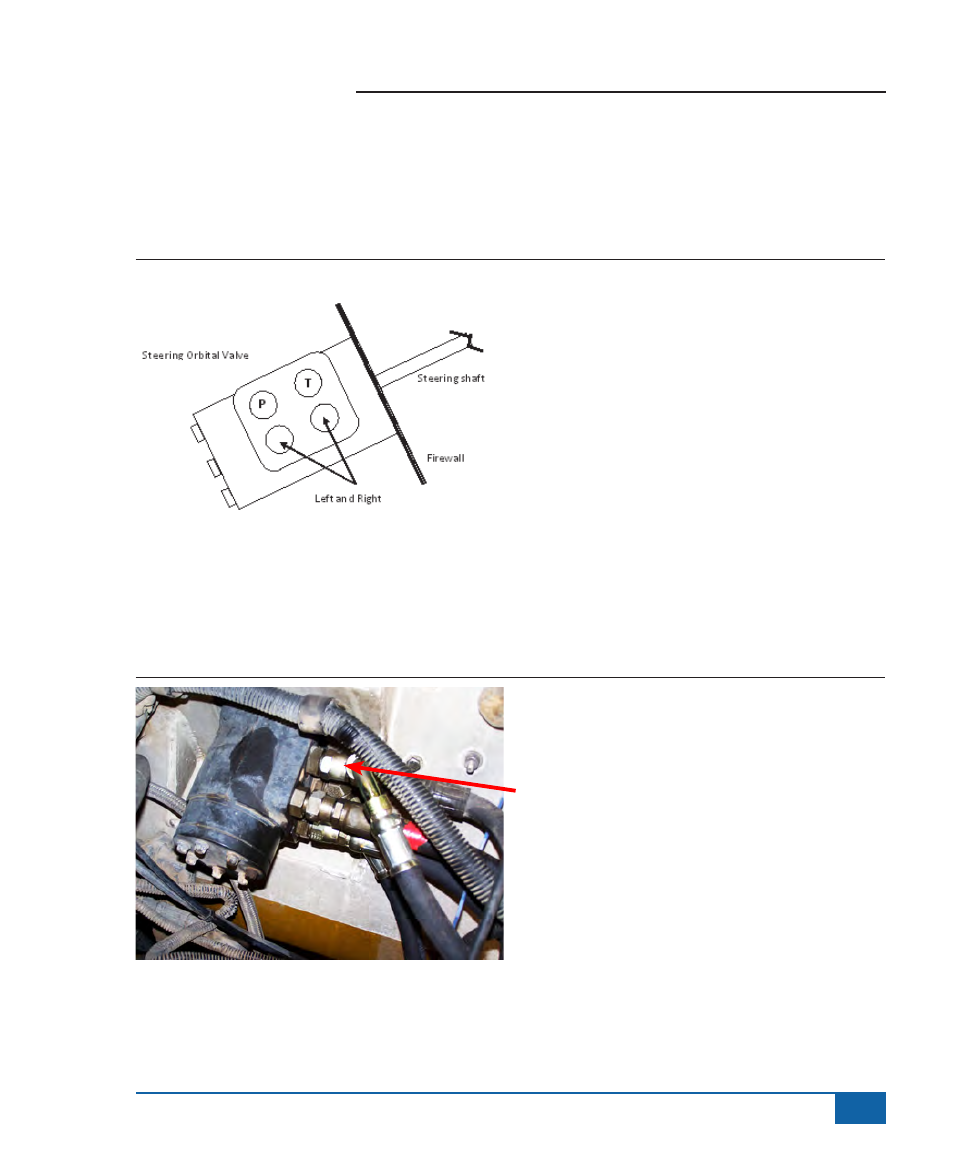

Figure 1-8: Steering Output Valve

Remove the hoses from the left and right steering ports. Place a temporary cap over these (#8 MJIC fittings)

and plugs in the ends of the hoses. Temporarily remove the hose from the T port and install a # 8 JIC Run

Tee

(R)

on the adapter fitting on the T port. Reconnect the original hose from the T port to the end of this

Run Tee.
Figure 1-9: Mounting The Counterbalance Valve

Run Tee on the

Tank Port
