FieldPilot ®
4. PREPARE COUNTERBALANCE VALVE (B) BLOCK
Make sure the valve block is clean and dust free. Work on a clean bench. Remove the plastic plugs and
install the straight fittings (T) in ports C1 and C2. Install the elbow adapter fittings (U) in ports V1 and V2.
Orient the elbow adapters so that they are pointing the opposite direction from the fittings in ports C1 and C2.
Install #8 JIC Run Tee fittings
(R) on the straight adapters in ports C1 and C2.

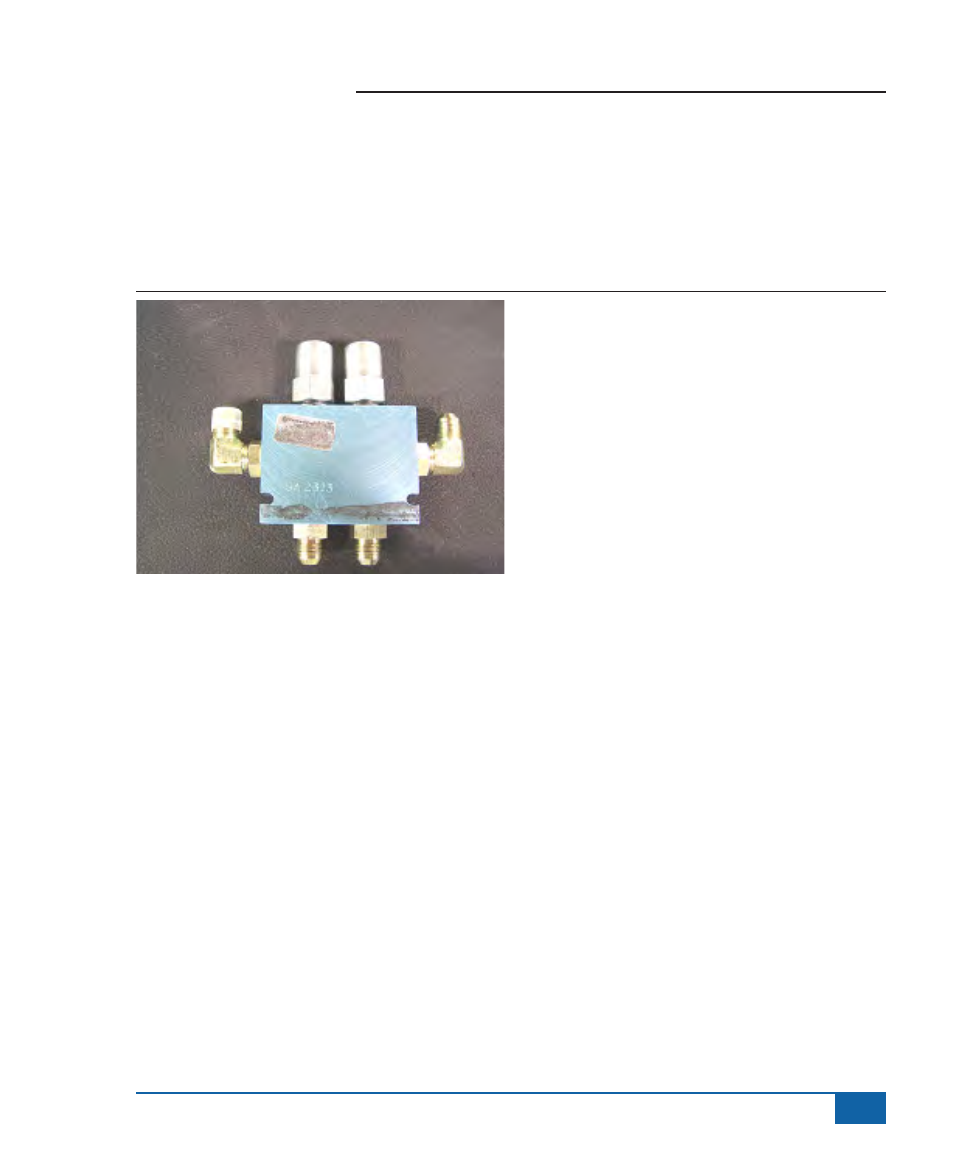

Figure 1-5: Prepare Counterbalance Valve Block
U U
T, R T, R
