5. MOUNTING THE COUNTERBALANCE VALVE
Hold the valve in position on the front of the left side of the cab. Check to be sure the hoses from both the
orbital and the FieldPilot Valve (E) will reach the correct ports on the counterbalance. Mark the bolt holes
and drill two 5/16 holes through the cab. Be sure to check for obstructions inside the cab.

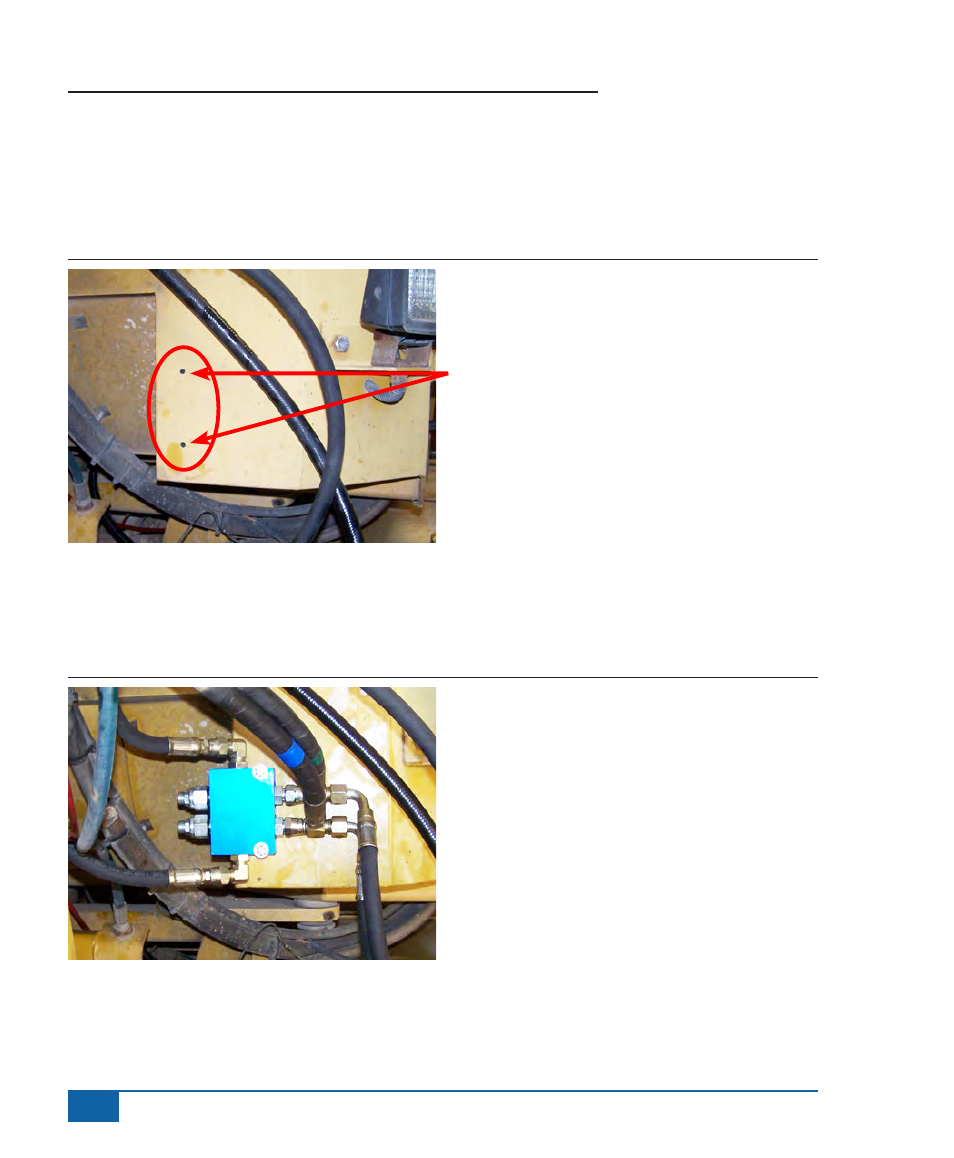

Figure 1-6: Mounting The Counterbalance Valve
Bolt Holes
Using the bolts, washers, and nuts (B , C , and D) attach the valve block to the front of the cab as shown.
Once the valve assembly is mounted, the straight fittings in C1 and C2 should be facing toward the outside of
the vehicle with the center tap of the Run Tees facing forward. The elbow adapter fittings in V1 and V2 should
be facing toward the engine compartment.
Figure 1-7: Mounting the Counterbalance Valve, Continued
