FieldPilot ®
INSTALLATION
If there are questions concerning the installation of the FieldPilot system on this vehicle, or due to
the changes in component specifications the parts supplied in the kit are not exactly as presented
in this document, please contact your dealer or TeeJet Customer service representative for
clarification before installation. TeeJet Technologies is not responsible for misuse or incorrect installation of
the system.
NOTE: BE VERY CAREFUL TO ABSOLUTELY SECURE ALL CABLES AND HOSES SO THAT THEY
DON’T INTERFERE WITH THE MANY MOVING PARTS OF THE MACHINE!
1. PREPARE THE FIELDPILOT VALVE
Make sure the valve block is clean and dust free. Work on a clean bench. Remove the plastic plugs and
install the adapters (V) in the P and EF ports. Install adapters (S) on the ends of these.
Install two adapters (T) into the T, A and B ports. Install adapters (S) on the ends of these.
NOTE: All references to left and right are stated as if the user is seated in the driver’s seat.

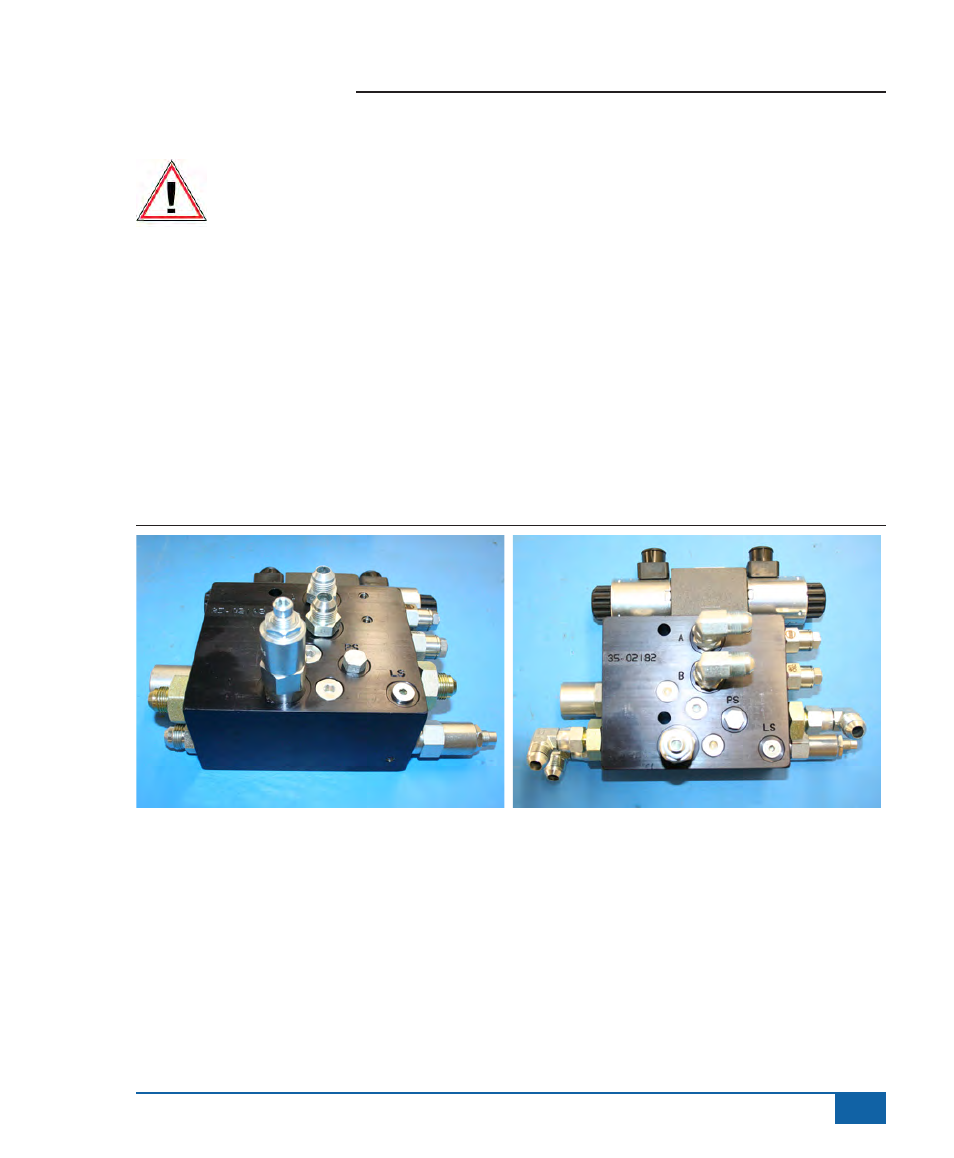

Figure 1-2: Preparing Hydraulic Control Block
V
T
T
T
V
S
S
S
S
S
