LH 1200S O

PERATORS MANUAL

LH A

GRO

9

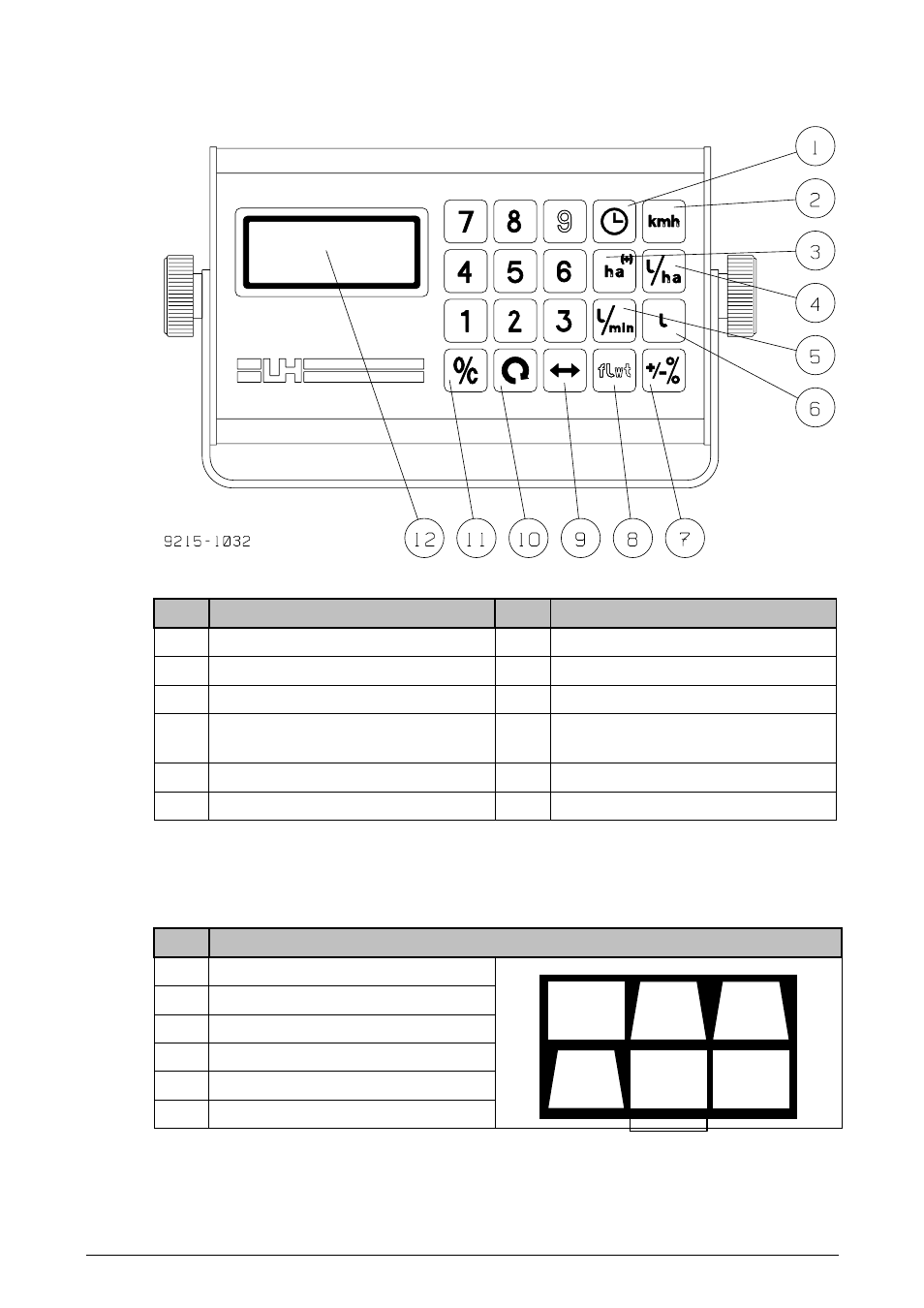

THE MONITOR

Pos. Function

Pos. Function

1

Work time

7

Flowmeter calibration

2

Forward speed

8

Flow figure encodement

3

Area trip/total counter

9

Working width encodement

4

Application rate

10 Wheel circumference

encodement

5

Litre consumption per minute

11 Delete and numerical 0 key

6

Litre counter

12 4-digit illuminated LCD-display

PLUG CONNECTIONS

Pos. Description

1 0

Volt

2 +12

Volt

3 Area

override

4 Wheel

sensor

5 Flowmeter/PTO
6

1 2 3

4 5 6
