LH 1200S O PERATORS MANUAL
LH A GRO 7
SYSTEM DESCRIPTION
The LH 1200S can be supplied with two different fitting kits. The difference
between the kits allows for greater flexibility.
The standard fitting kit (LH No. 918-123) is suitable if the monitor is only to be
used in conjunction with one implement and if you do not need to change between
several sensors.
The fitting kit with changeover switches (LH No. 916-123) is suitable if the monitor
is to be used in conjunction with several different implements. It is possible to
select between several different sensors using the changeover switches on the
junction box.

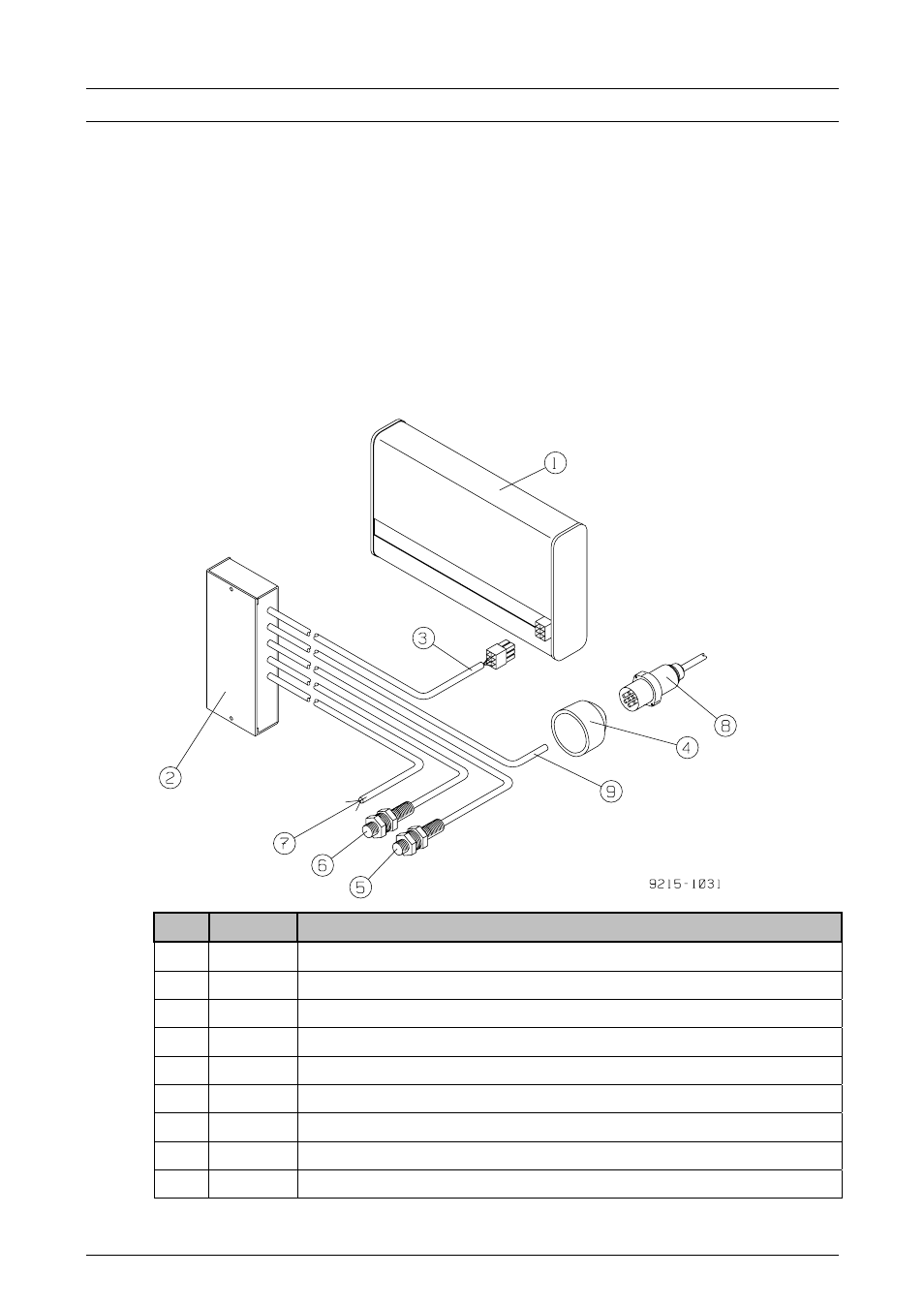

The two fitting kits itemised with part references below:
918-123 LH 1200S FITTING KIT WITHOUT SWITCHES
Pos. LH No. Description
1 915-122 LH 1200S Monitor
2 905-122 Junction box, standard
3 198-140 LH 1200S main cable
4 178-600 LH trailer plug socket, 7-pin
5 901-982 Override sensor (start/stop area counter)
6 901-982 Wheel sensor
7 900-754 Power supply cable
8 178-601 Trailer plug, 7-polet
9 956-005 Cable for trailer plug (5 x 0,5)
