7
98-05243-ENUS R2
Matrix
®
Pro
implement
Implement Setup is used to establish the various settings associated
with the vehicle’s implement.
Settings will vary depending on if a SmartCable or Section Driver
Module (SDM) is present.
Speed Out / Sense In cable
This cable is REQUIRED to start application mapping (painting the
screen).
It allows the user to operate the area applied function of the Matrix
Pro in series with a remote master connection or existing apply on/off
toggle in a single swath manner. However if the previous connections
are not available the supplied toggle switch allows area applied
functionality without the need to connect to a functional application
implement.
The cable also sends a radar speed signal to an external device.
To install your cable:
• Connect using included switch (32-50008)
OR
• Connect green wire to master 12 Volts on/off from rate controller

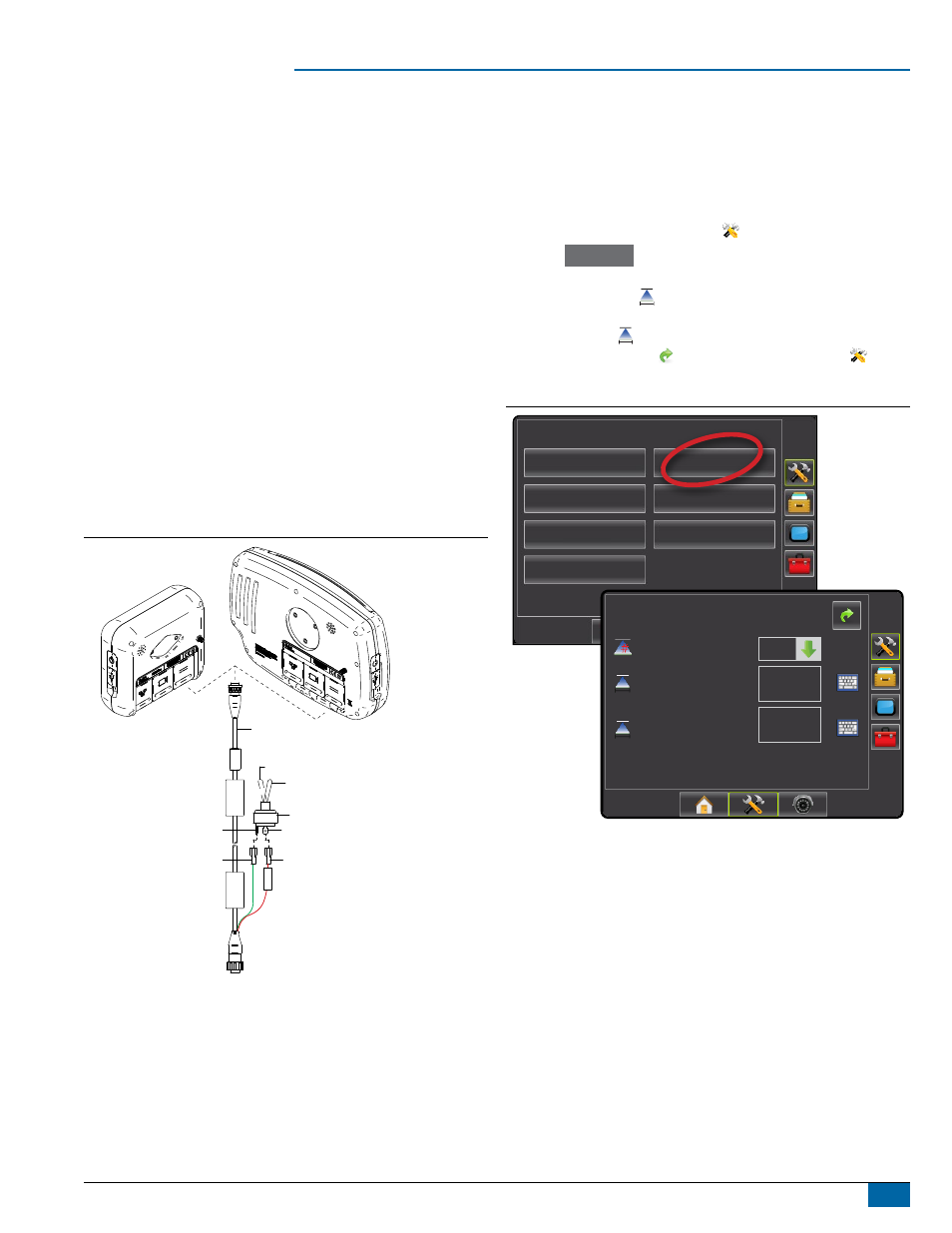

Figure 1-15: Speed Out / Sense In cable
S pe
ed
C
abl
e
45
-0
561
5
Spee
d/
St
at
us +1
2v
Connect Green
Wire
Connect Red Wire
OFF
ON
Green Wire
Sense
Red Wire (+12v)
32-50008
Switch, Master
Radar
Speed Out
45-05765 8 Pos.
Speed/Sense Cable
Matrix Pro 570G
Matrix Pro 840G
implement – Single Section Setup
Implement for a single boom is used to establish guidance width and
spray width.
NOTE: If a SmartCable or Section Driver Module (SDM) is present,
refer to “SmartCable or Section Driver Module Setup” to view
setup steps.
1. Press CONFIGURATION side tab .
2. Press
Implement
.
3. Select from:
►Guidance Width – used to enter the width between the
guidelines
►Spray Width – used to enter the width of the implement
4. Press RETURN arrow or CONFIGURATION side tab to
return to the main Configuration screen.
Figure 1-16: Implement Setup Options with No SDM
Configuration
Vehicle Implement
AutoSteer Tilt
Lightbar GPS
Video
Config->Implement
Num Sections
Spray Width
Guidance Width 60.00 ft
12.00 ft
1
