BoomPilot
®
#
Number of Boom Sections
Number of Boom Sections establishes the number of available boom
sections. If a SmartCable or Section Driver Module (SDM) is present,
1 to 6 or 1 to 15 section widths can be entered (depending on which
SmartCable or Section Driver Module (SDM) is detected). Default is 1.
1. Press DOWN arrow to access the list of options.
2. Select the number of boom sections on the implement:

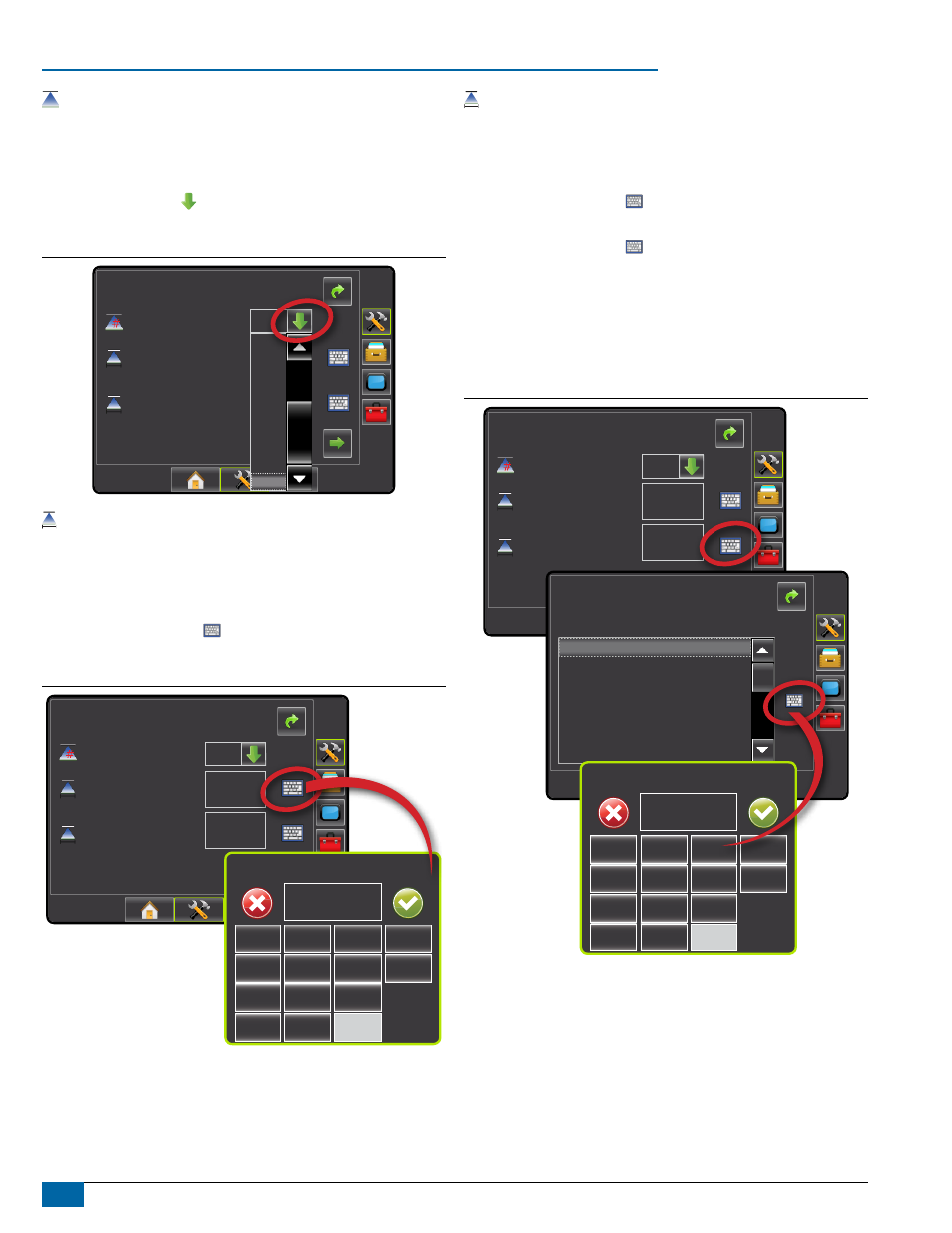

Figure 1-20: Number of Boom Sections
Config->Implement
Num Sections
Spray Width
Guidance Width
75.00 ft
75.00 ft
15
7
8
9
10
11
12
13
14
15
Guidance Width
Guidance Width establishes the width between the guidelines.
Range is 34.0 - 2952.7 inches / 0.9 - 75.0 meters. Default is 60 feet /
18.29 meters.
NOTE: This setting is required for auto steering operation.
1. Press the KEYPAD icon .
2. Use the entry screen to establish the guidance width.
Figure 1-21: Guidance Width
Config->Implement
Num Sections
Spray Width
Guidance Width
60.00 ft
180.00 ft
15
Guidance Width (ft)
1
2
3
Clear
4
5
6
<--
7
8
9
0
.
+/-
Spray Width
Spray Width establishes the width of each implement section. Range
is 0.0 - 2952.7 inches / 0.0 - 75.0 meters. Default per section is
144.0 inches / 3.66 meters. When facing forward, boom sections are
ordered from left to right along the boom.
1. Press the KEYPAD icon .
2. Highlight the section to be established.
3. Press the KEYPAD icon .
4. Use the entry screen to establish the spray width.
5. Repeat steps 2 to 4 until all sections have been established.
NOTE: When entering a boom section width, the total of all sections
must be greater than 34 inches / 0.9 meters.
NOTE: Individual boom sections can be set to different widths.
Figure 1-22: Spray Width
Config->Implement
Num Sections
Spray Width
Guidance Width
60.00 ft
180.00 ft
15
Config->Implement->Section Widths
Spray Width" 75.00 ft
Section 1 - 144.00 in
Section 2 - 144.00 in
Section 3 - 144.00 in
Section 4 - 144.00 in
Section 5 - 144.00 in
Section 6 - 144.00 in
Section 7 - 144.00 in
Section 1 Width (in)
1
2
3
Clear
4
5
6
<--
7
8
9
0
.
+/-
