BoomPilot
®
Guidance Width
Guidance Width establishes the width between the guidelines.
Range is 34.0 - 2952.7 inches / 0.9 - 75.0 meters. Default is 60 feet /
18.29 meters.
1. Press the KEYPAD icon .
2. Use the entry screen to establish the guidance width.
NOTE: This setting is required for auto steering and tilt sensor
operation.

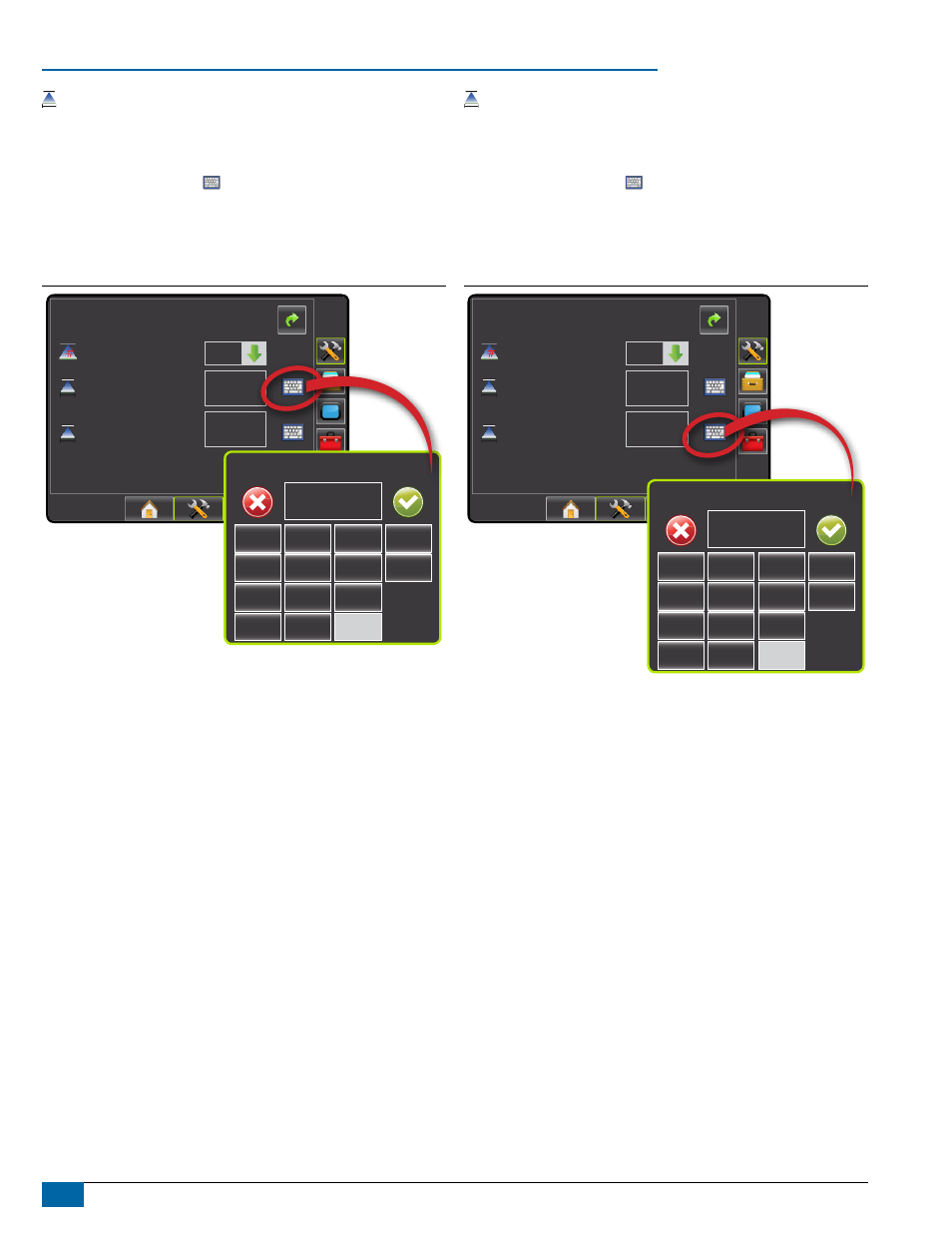

Figure 1-17: Guidance Width
Config->Implement
Num Sections
Spray Width
Guidance Width
60.00 ft
12.00 ft
1
Guidance Width (ft)
1
2
3
Clear
4
5
6
<--
7
8
9
0
.
+/-
Spray Width
Spray Width establishes the width of the implement. Range is 34.0 -
2952.7 inches / 0.9 - 75.0 meters. Default is 144.0 inches (12 feet) /
3.66 meters.
1. Press the KEYPAD icon .
2. Use the entry screen to establish the spray width.
NOTE: This setting is required for auto steering and tilt sensor
operation.
Figure 1-18: Spray Width
Config->Implement
Num Sections
Spray Width
Guidance Width
60.00 ft
12.00 ft
1
Section 1 Width (in)
1
2
3
Clear
4
5
6
<--
7
8
9
0
.
+/-
