BooMPilot ConfiGuration
The Matrix Pro is used to configure the vehicle and its implements.
To access Matrix Pro BoomPilot configuration options:
1. Press UNIT SETUP bottom tab .
2. Press CONFIGURATION side tab .
3. Select from:
►Vehicle – used to establish vehicle type, antenna height,
direction to boom and distance to boom.
►Implement – used to establish number of boom sections,
guidance width, spray width, overlap percentage, implement
delay on time and implement delay off time.

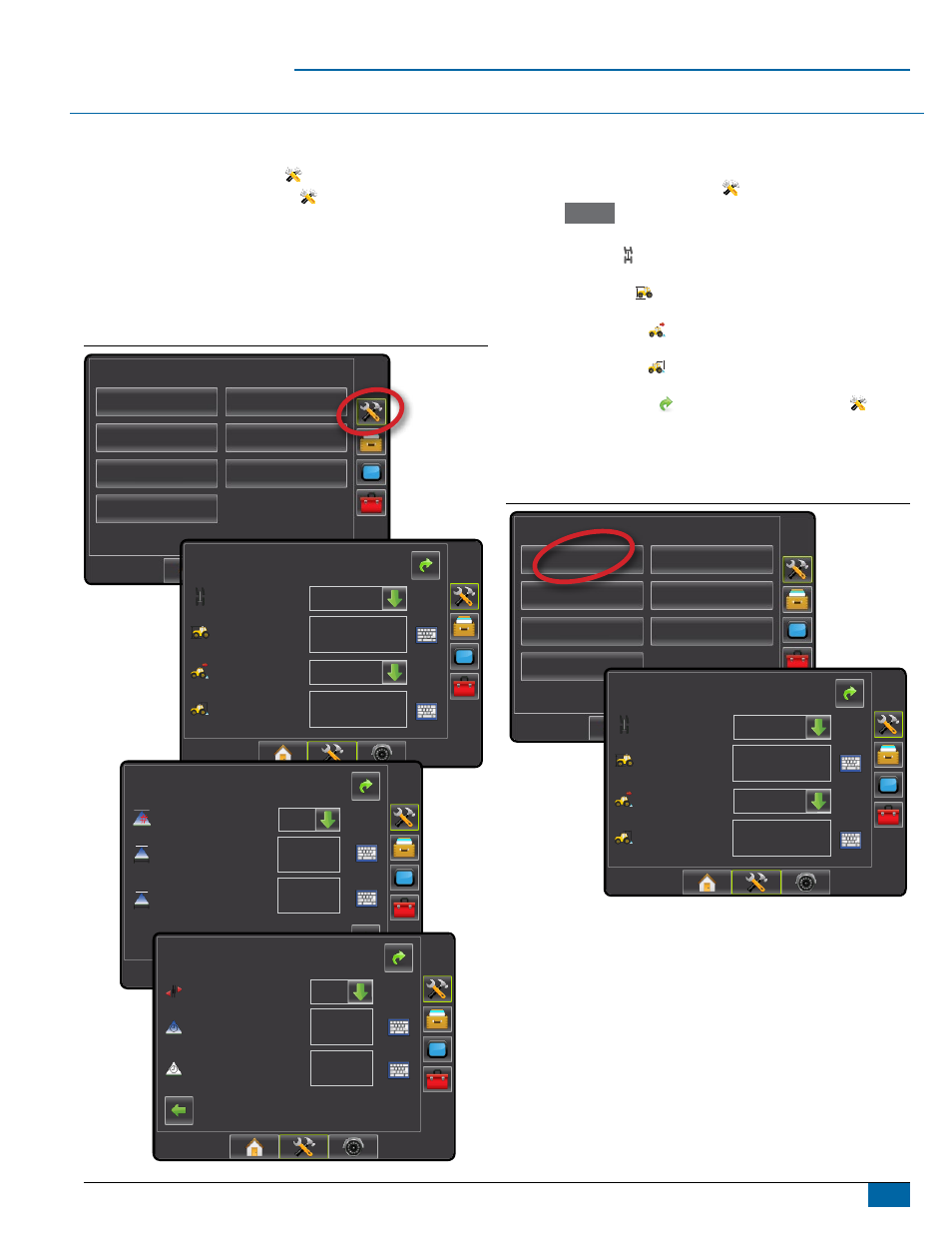

Figure 1-9: Configuration Options
Configuration
Vehicle Implement
AutoSteer Tilt
Lightbar GPS
Video
Config-> Vehicle
12.50 ft
0.00 ft
Front Wheel
Backward
Vehicle Type
Ant Height
Dir to Boom
Dist to Boom
Config->Implement
Num Sections
Spray Width
Guidance Width 75.00 ft
75.00 ft
15
Config->Implement (2)
Overlap
Delay Off
Delay On 1.00 s
1.00 s
50%
Vehicle Setup
Vehicle Setup is used to configure Vehicle Type, Antenna Height,
Direction to Boom and Distance to Boom.
1. Press CONFIGURATION side tab .
2. Press
Vehicle
.
3. Select from:
►Vehicle Type – used to select the type of vehicle steering that
most closely represents your vehicle
►Antenna Height – used to enter the height of the antenna
from the ground
►Direction to Boom – used to select whether the boom is
located behind or in front of the GPS antenna
►Distance to Boom – used to enter the distance from the GPS
antenna to the boom
4. Press RETURN arrow or CONFIGURATION side tab to
return to the main Configuration screen.
NOTE: All settings under Vehicle Setup are required for autosteer and
tilt sensor operation, as well as proper BoomPilot operation.
Figure 1-10: Vehicle Setup Options
Configuration
Vehicle Implement
AutoSteer Tilt
Lightbar GPS
Video
Config-> Vehicle
12.50 ft
0.00 ft
Front Wheel
Backward
Vehicle Type
Ant Height
Dir to Boom
Dist to Boom
