implement – SmartCable or Section driver Module Setup
Implement is used to establish number of boom sections, guidance
width, spray width, overlap percentage, implement delay on time and
implement delay off time.
NOTE: If a SmartCable or Section Driver Module (SDM) is not present,
refer to “Single Section Setup” to view setup steps.
1. Press CONFIGURATION side tab .
2. Press
Implement .
3. Select from:
►Number of Boom Sections # – used to select the number of
available boom sections
►Guidance Width – used to enter the width between the
guidelines
►Spray Width – used to enter the width of each implement
section
►Overlap – used to select the amount of overlap allowed
when the boom sections are turned on and off
►Delay On – used to enter the timing for the boom section
valves to switch on
►Delay Off – used to enter the timing for the boom section
valves to switch off
4. Press RETURN arrow or CONFIGURATION side tab to
return to the main Configuration screen.
NOTE: Press or to switch between Implement setup screens.
NOTE: Implement settings are only visible and necessary if a
SmartCable or SDM is installed. If neither is present, see
Single Boom Setup section.

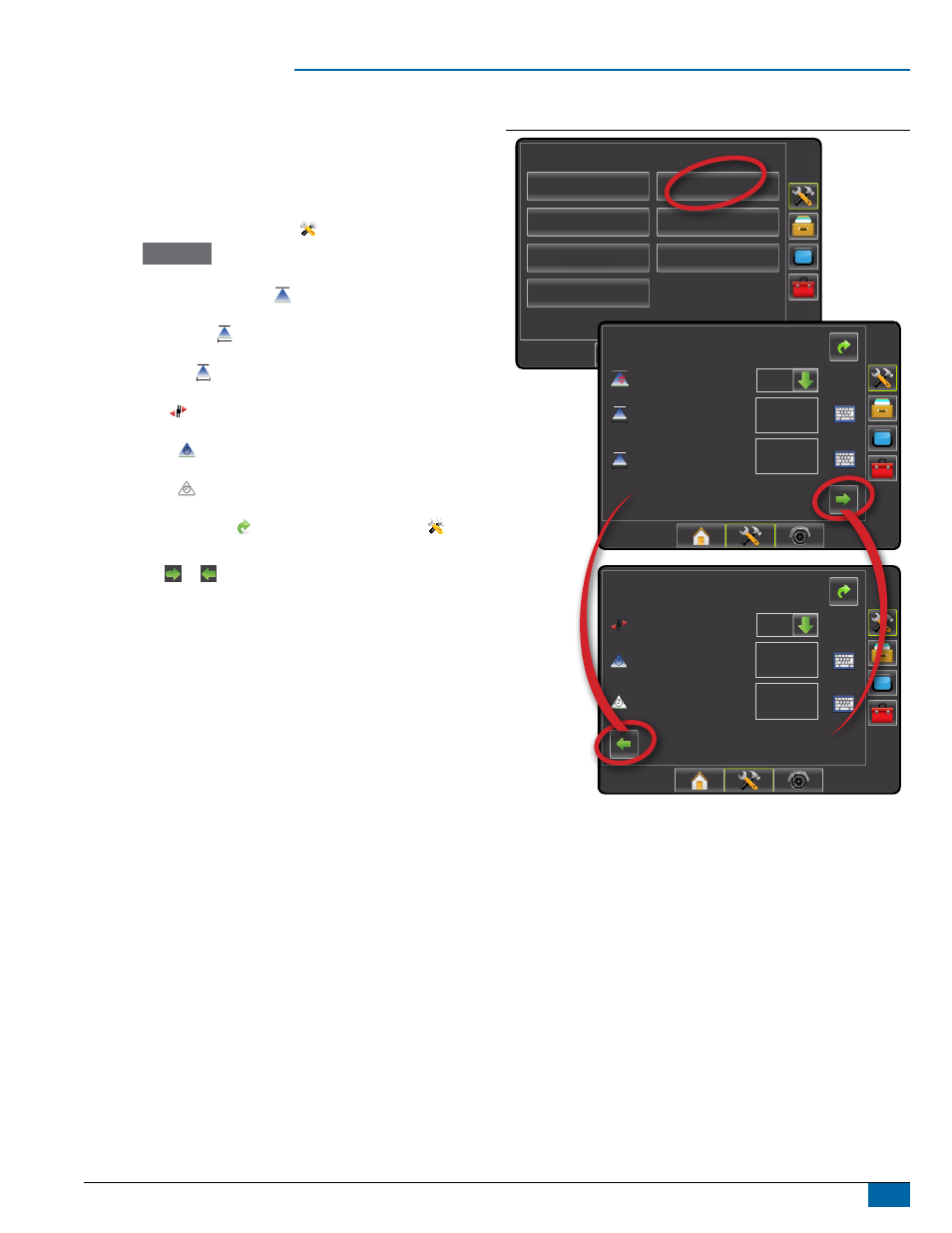

Figure 1-19: Implement Setup Options with SmartCable or SDM
Configuration
Vehicle Implement
AutoSteer Tilt
Lightbar GPS
Video
Config->Implement
Num Sections
Spray Width
Guidance Width 60.00 ft
12.00 ft
1
Config->Implement (2)
Overlap
Delay Off
Delay On 1.00 s
1.00 s
50%
