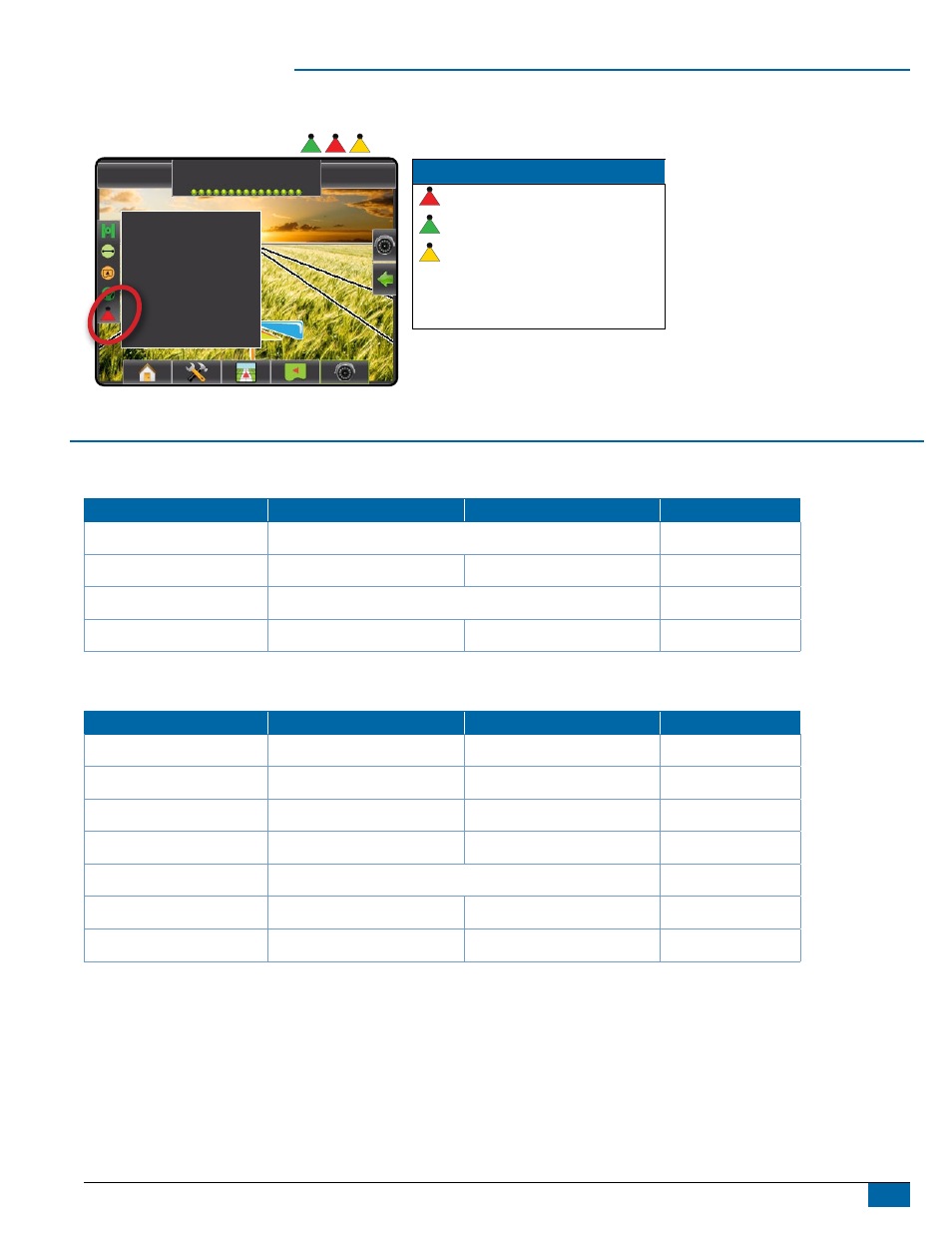

BoomPilot Status
BoomPilot Status displays information regarding the current status of the BoomPilot system.
1. Press BOOMPILOT STATUS icon to view the number of sections.
-13 7.2 mph
Mark A
Num Sections: 15
BoomPilot Status
Red = Off/Manual
Green = Automatic
Yellow = All On
No icon = Single Boom Section (no
SmartCable or SDM installed on
system)
aPPendix - faCtory SettinGS & ranGeS
Vehicle Setup Settings
Description Factory Setting Range User Settings
Vehicle Type Front Wheel
Antenna Height 12.0 ft / 3.66 m 0.0 - 32.8 ft / 0.0 - 10.0 m
Direction to Boom Forward
Boom Offset Distance 0.0 ft / 0.0 m 0.0 - 164.0 ft / 0.0 - 50.0 m
Implement Setup Settings
Description Factory Setting Range User Settings
Number of Boom Sections 1 1-15
Guidance Width 60.0 ft / 18.29 m 3.28 - 246.1 ft / 1.0 - 75.0 m
Spray Width 12.0 ft / 3.66 m 3.28 - 246.1 ft / 1.0 - 75.0 m
Boom Section Width(s) 144.0 in / 3.66 m 0.0 - 2952.7 in / 0.0 - 75.0 m
Overlap 50%
Delay Off 1.0 s 0.0-10.0 s
Delay On 1.0 s 0.0-10.0 s
