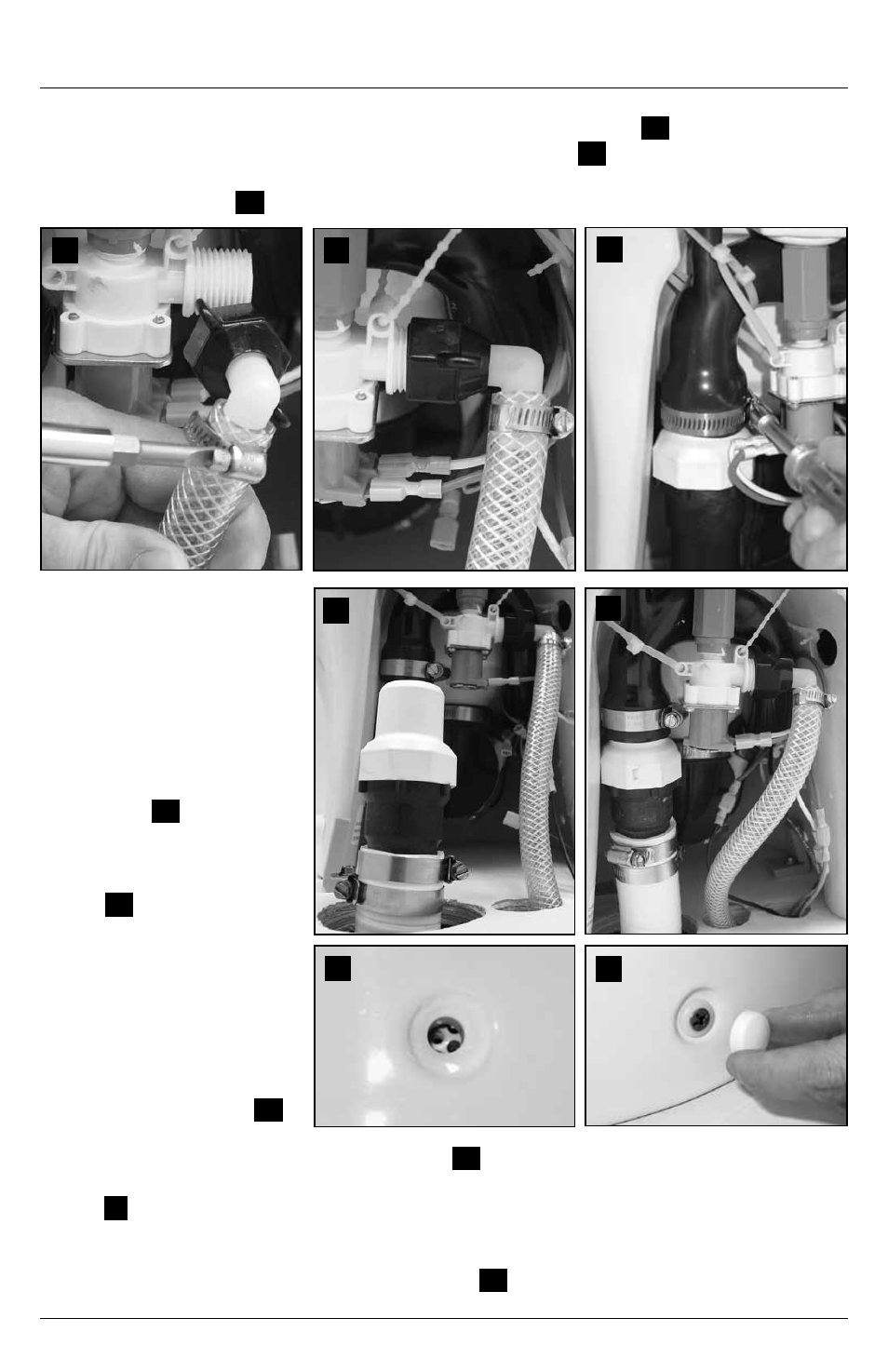

11 . Connect water valve adapter to flexible water line with hose clamp (fig .
10
) .
12 . Securely connect water valve adapter to water valve fitting (fig .
11
) .
13 . Loosen band clamp on discharge loop outlet and remove discharge adapter fitting/hose
fitting assembly (fig .
12
) .
14 . Lubricate discharge fitting
assembly and inside end of
discharge hose with liquid
dishwashing soap . Push dis-
charge fitting assembly into
discharge hose and connect
with two hose clamps . Be
sure to position hose clamp
screws 180° apart from each
other (fig .
13
) . Place toilet
near access holes .
15 . Connect flush switch panel
wires to toilet wires
(fig .
14
) according to appro-
priate wiring diagram (pp . 11-
12) . Connect ground wires
from toilet as indicated .
16 . Position toilet over floor
brackets and tilt toilet up
from back . Push discharge
assembly fitting and hose up
into discharge loop outlet,
and tighten clamp (fig .
14
) .
17 . Lower toilet down so that
floor brackets show through fastener holes (fig .
15
) .
18 . Turn on water supply and electrical power to toilet, and check for leaks . Press “Flush” switch
(fig .
4
1, page 2) . If leak occurs, tighten connection .
19 . Insert plastic adapters from Floor Bracket Kit into fastener holes . Fasten toilet to brackets with
short screws provided in kit .
20 . Cover floor bracket screws with plastic covers (fig .
16
) .
