Form P-RIH/VR, PN 272513, Page 8
92
Heater
Frame
Assy
93
97
96
95
98
94
Models RIHVN 100, RIHVL 90
Models
RIHVN 160,
RIHVN 200
85
Heater
Frame
Assy
86
90
89
88
91
87
Main Gas Orifice Chart (CODES 71, 79, 87, and 94)
76
69
70
Heater
Frame
Assy
73
71
74
75
72
77
77
Heater
Frame
Assy 78
81
79
82
80
83
Models
RIHVN 150,
RIHVL 120
Models RIHN 30, RIHN 60,
RIHL 50
Component Description
RIHN 30, RIHN 60,
RIHL 50
RIHVN 100,
RIHVL 90
RIHVN 150,
RIHVL 120
RIHVN 160,
RIHVN200
CODE P/N Qty CODE P/N Qty CODE P/N Qty CODE P/N Qty
Burner Assy (Combustion Chamber w/Tile) 69 112052 1 77 112052 2 85 112052 3 92 112052 4
Gas Manifold 70 112053 1 78 112054 1 86 112055 1 93 112056 1
Main Gas Orifice 71 - See table below. 79 - See table below. 87 - See table below. 94 - See table below.
Standard Reflector Assembly 72 112057 1 80 112058 1 88 112059 1 95 112060 1
Wire Grid (Same as Option DN2) 73 110246 1 81 110247 1 89 110248 1 96 110249 1
Protective Screen for unit w/ Std Reflector
(Same as Opt DN3)
74 115381 1 82 115382 1 90 123383 1 97 115384 1
Parabolic Reflector (Same as Opt DM2) 75 110242 1 83 110243 1 91 110244 1 98 110245 1
Heat Shield (Same as Option DO2) 76 110250 1 84 110251 1 -- -- - -- -- -
RIHN
30
RIHN
60
RIHL
50
RIHVN
100
RIHVL
90
RIHVN
150
RIHVL
120
RIHVN
160
RIHVN
200
Qty 1 1 1 2 2 3 3 4 4
P/N 113191 143574 112103 112102 112104 112102 112105 112709 112102
Size #43 #30 #46 #32 5/64" #32 #49 #36 #32

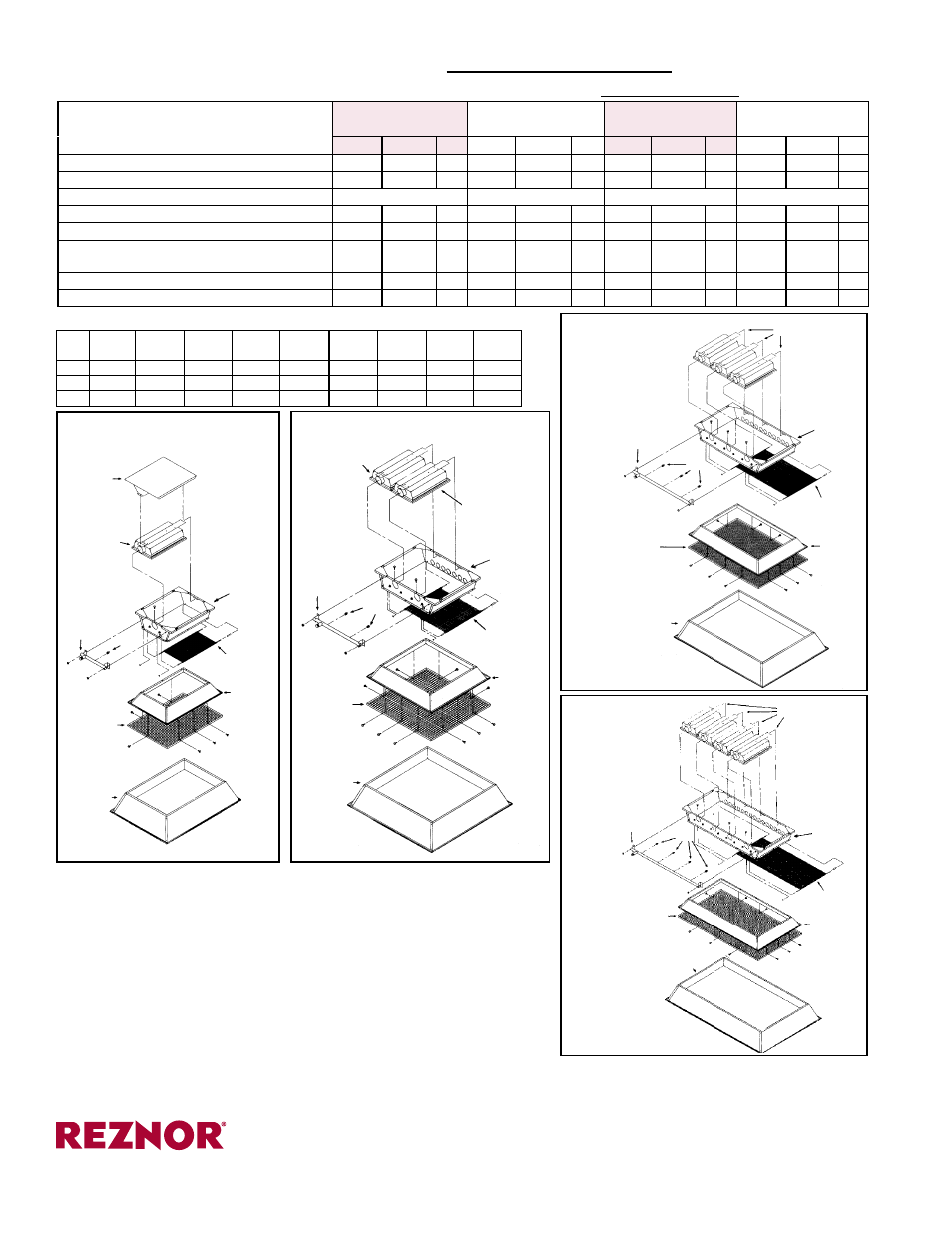

Burner, Reflector, Screen, and Heat Shield - High-Intensity Infrared Models RIH/RIHV
Replacement Parts - High-Intensity Infrared Models RIH/RIHV (cont’d)
