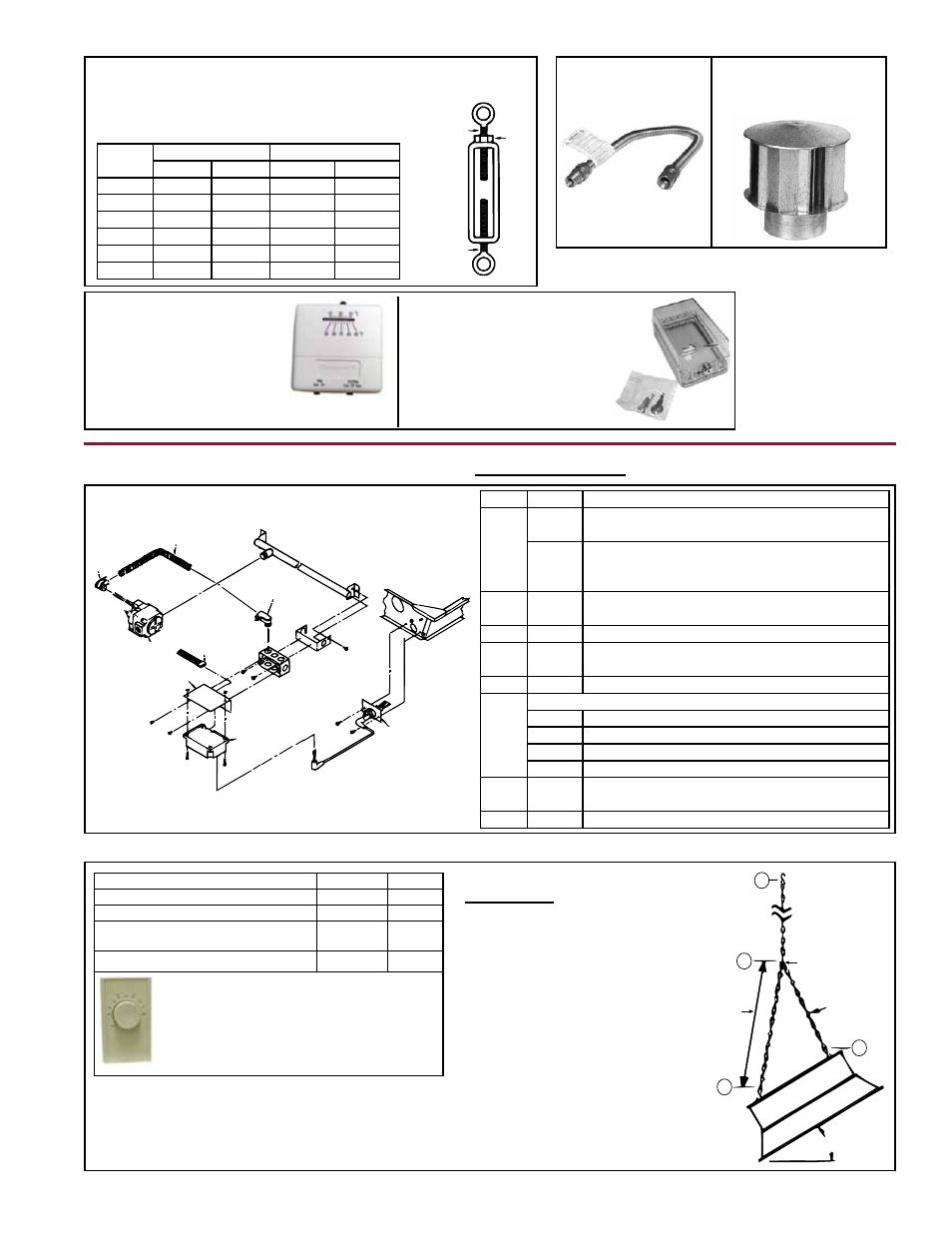

Form P-RIH/VR, PN 272513, Page 7
CODE 52 - Turnbuckle and Turnbuckle Lock Nut
Each option package includes equal quantities
of P/N 120704, Eye-to-Eye Turnbuckle of forged
carbon steel, and P/N 6554, 5/16-18 Nut (Kep).
Right
Hand
Thread
Left
Hand
Thread
Lock
Nut Straight
Length
Straight With one "L" or "U"
Opt P/N Opt P/N
20 ft CK12 121046 CK13 120701
30 ft CK13 120701 CK14 121047
40 ft CK14 121047 CK15 132517
50 ft CK15 132517 CK16 205583
60 ft CK16 205583 CK17 205584
70 ft CK17 205584 CK18 205585
1/2”, P/N 120715
3/4”, P/N 120874
CODE 53 - Flexible
Gas Connector,
Option CE3 & CE4
CODE 54 - 4” Vent
Cap (Same as Option
CC1), P/N 120738
CODE 55 - 1-Stage
Thermostat, (Same as
Option CL1), P/N 255350
24 Volt; 50-90°F Range
CODE 56 - Thermostat
Cover, W/R 29-0143 (Same
as Option CM1), P/N 91926
Clear Plastic
Locking Cover
Replacement Parts - High-Intensity Infrared Models RIH/RIHV
66
65
66
62
63
64
61
60
CODE P/N Description
60
271822 Main Gas Valve (120V) - VR4205M1324 (natural
& propane)
271823
Replacement Valve Kit - order to replace
previously used valve 1/2 0002-42-01536C01
A284, P/N 112044
61 96010 Ignition Detection Control Replacement Kit,
#0001-22-046
62 96011 Wire Harness, #132084, Pkg R10
63 112045 Ignition Detection Control Mounting Bracket,
#000K-1-016
64 112046 Ignitor, #0002-42-110
65
Conduit, 3/8" Greenfield with Anti-Short Bushings
112047 for RIHN30, RIHN60, RIHL50, #3802-95-300-01
112048 for RIHVN 100, RIHVL90, #3802-95-300-02
112049 for RIHVN 150, RIHVL 120, #3802-95-300-03
112050 for RIHVN 160, RIHVN 200, #3802-95-300-04
66 112051 Angle Connector for 3/8" Greenfield, #3802-95-
302
67 96016 Air Flow Switch, #132081-2N, Pkg R15
Controls - All RIH/RIHV High-Intensity Infrared
Models
Replacement Accessories
Thermostat (Option Cl34),
P/N 110252
115/24 Volt; 50-90°F Range;
nap Action Switch; Vertical
Mounting; Mfr #132026-1
Description Same as P/N
Chain - 50', 200 lb w/14 "S" Hooks Opt UE-1 95995
Chain Hanging Kit (See illustration.) Opt UE-2 110253
Stainless Flex Connector, 24", 7/8" OD
w/1/2 gas cock w/pressure tap
Option
UF-2
96000
Single-Stage Thermostat (below) Opt CL34 110252
A
D
B
C
Degree of Angle
Mounting
12” Length
Chain with
“S” Hooks
#5 “S” Hook
(typical)
Adjust
length
to change
mounting
angle.
Chain Hanging Kit, P/N 110253
Instructions:
1 ) Hang full length chain at desired height
and attach heater (C) with S-hooks.
2) Attach one end of the 11-inch length
chain with S-hooks to front of heater
(D).
3) Place other end of chain with
S-hook in hook (B) on the full
length chain.
4) Change degree of angle by
moving “S” hook at point B.
5) Check to be sure unit is level.
Crimp all “S” hooks closed.
