Reznor VR Parts Manuals - Manual (Page 5)

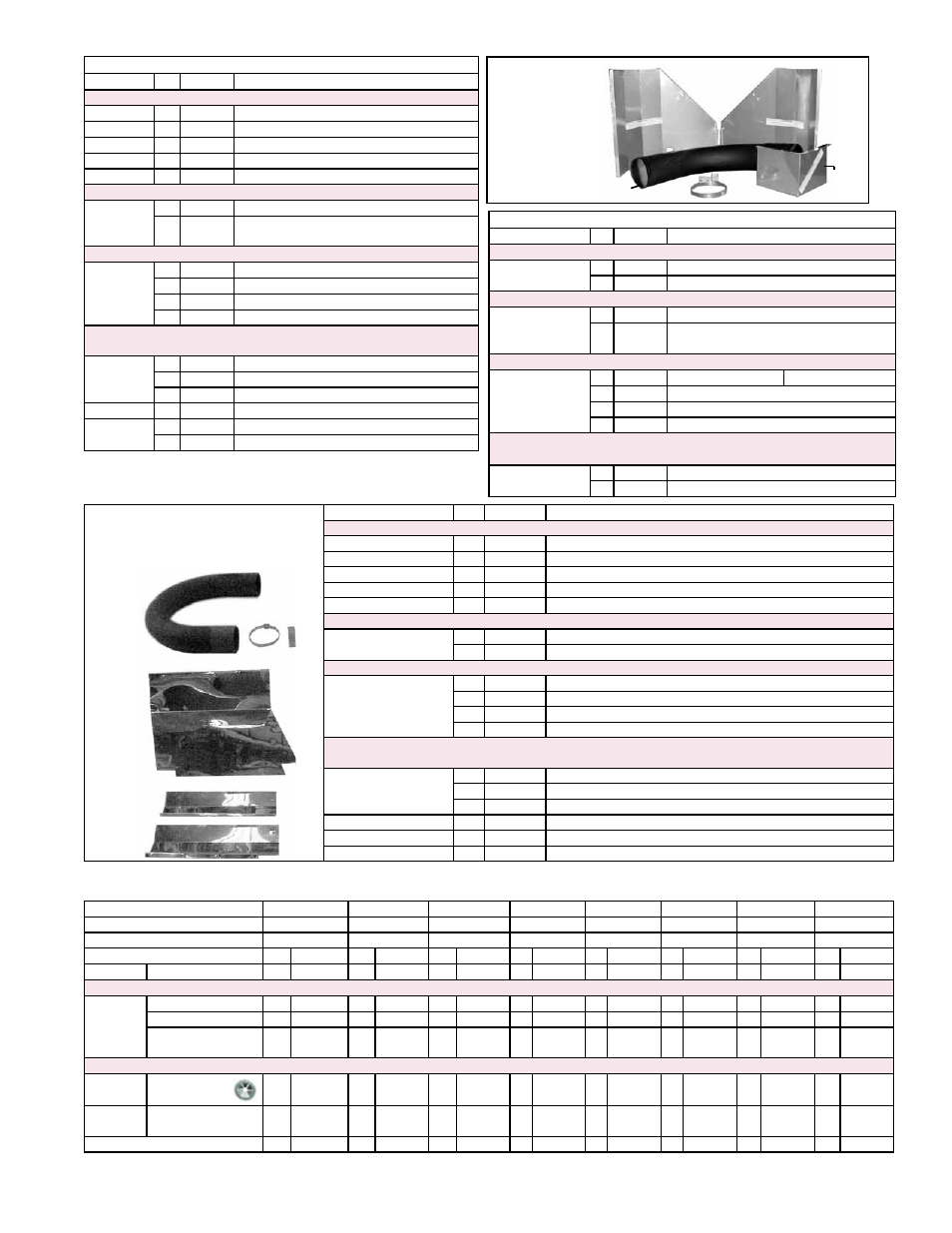

Form P-RIH/VR, PN 272513, Page 5
41A
41B
41C&D
41E
CODE 41 -
Option UC2,
“L” Tube
Package
41F
CODE 42 - Option UA1, 5-ft Tube, Pkg P/N 205207, includes:
Code Qty P/N Description
5 ft Tube and Reflector
5 ft Lengths of
CODES 32 & 38
1 205208 5-ft Heat Exchanger Tube
1 268221 5-ft Reflector
Coupling and Hardware for Tube Connection
Same as
CODE 33
1 205546 Compression Coupling
2 37661 #10x1/2" Self-drilling Screws (parts bag
below)
Wire Retainer, Hanger Bar, Tube Bracket, U-Bolt
Same as
CODES 35A,
35B, 36, & 37
1 209321 Reflector Retainer Replaces 205543
1 209322 Hanger Bar
1 205586 Reflector Bracket
1 131785 U-Bolt w/Brass Nuts (in parts bag)
"5-ft" Tube Kit Hardware Bag, P/N 205721, includes items below plus
the items above that indicate they are shipped in the parts bag:
Same as
CODE 39
2 196336 Clip-on, Receptacle Nut
2 11813 #10x1/2" Sheetmetal Screws
CODE 41 - Option UC2, Package P/N 205217, includes:
CODE Qty P/N Description
" L" Tube and Reflector Parts
41A 1 205218 "L" Heat Exchanger Tube
41B 1 268219 "L" Reflector Side
41C 1 268225 "L" Reflector Half Right
41D 1 268226 "L" Reflector Half Left
41E 1 120677 "L" Tube Reflector Bracket (in parts bag)
Coupling and Hardware for Tube Connection
Same as
CODE 33
1 205546 Compression Coupling
2 37661 #10x1/2" Self-drilling Screws (shipped in
parts bag below)
Wire Reflector Retainer, Hanger Bar, Tube Bracket, and U-Bolt
Same as
CODES
35A, 35B,
36 & 37
1 209321 Wire Reflector Retainer (Replaces 205543)
1 209322 Hanger Bar
1 205586 Reflector Bracket
1 131785 U-Bolt w/Brass Nuts (in parts bag below)
"L" Tube Kit Hardware Bag, P/N 205723, includes items below plus
items above that indicate they are shipped in the parts bag:
15 113275 Screws, #10-32 x 1/2" long
15 26490 Nuts, Kep #10-32
2 113807 Washers
41F 1 120716 1/2" Stainless Worm-drive Clamp
Same as
CODE 39
2 196336 Clip-on, spring steel Receptacle Nut
2 11813 #10x1/2" Sheetmetal Screws
CODE 43 - Option UB3, “U”
Tube Package P/N 205211,
includes:
43A
43B
43C&D
43F
43E
CODE 43 Qty P/N Description
"U" Tube and Reflector Parts (See NOTE on page 4 about replacement reflectors.)
43A 1 205212 "U" Heat Exchanger Tube
43B 1 268222 Reflector Top
43C 1 268223 Reflector Right Side
43D 1 268224 Reflector Left Side
43E 1 120677 "U" Tube Reflector Bracket (shipped in parts bag below)
Coupling and Hardware for Tube Connection
Same as CODE 33
1 205546 Compression Coupling
2 37661 #10x1/2" Self-drilling Screws (shipped in parts bag below)
Wire Reflector Retainer, Hanger Bar, Tube Bracket, and U-Bolt
Same as CODES
35A, 35B, 36, & 37
1 209321 Wire Reflector Retainer (Replaces P/N 205543)
1 209322 Hanger Bar
1 205586 Reflector Bracket
1 131785 U-Bolt with Brass Nuts (in parts bag below)
"U" Tube Kit Hardware Bag, P/N 205722, includes items below plus the items above that indicate
they are shipped in the parts bag:
14 113275 Screws, #10-32 x 1/2" long
14 26490 Nuts, Kep #10-32
2 113807 Washers
43F 1 120716 1/2" Stainless Worm-drive Clamp
Same as CODE 39 2 196336 Clip-on, spring steel Receptacle Nut
2 11813 #10x1/2" Sheetmetal Screws
Option CD19 CD13 CD14 CD15 CD16 CD17 CD18 CD20
Length 5 ft 10 ft 20 ft 30 ft 40 ft 50 ft 60 ft 70 ft
Kit P/N 205738 205732 205733 205734 205735 205736 205737 205739
Components Qty P/N Qty P/N Qty P/N Qty P/N Qty P/N Qty P/N Qty P/N Qty P/N
Side Shield 1 268227 2 268227 4 268227 6 268227 8 268227 10 268227 12 268227 14 268227
Wire Reflector Retainer, Hanger Bar, Tube Bracket and U-Bolt
Same as
CODES
35A, 36,
& 37
Reflector Retainer 1 209321 2 209321 4 209321 6 209321 8 209321 10 209321 12 209321 14 209321
Reflector Bracket 1 205586 2 205586 4 205586 6 205586 8 205586 10 205586 12 205586 14 205586
U-Bolt w/brass nuts
(in parts bag below) 1
131785 2 131785 4 131785 6 131785 8 131785 10 131785 12 131785 14 131785
Side Shield Hardware Bag
CODE
44A
Pushnut, TRW
#250015
4 125848 4 125848 8 125848 12 125848 16 125848 20 125848 24 125848 28 125848
Same as
CODE 39
Clip-on spring steel
Receptacle Nut
2 196336 2 196336 4 196336 6 196336 18 196336 10 196336 12 196336 14 196336
#10x1/2" lg Sheetmetal Screw 2 11813 2 11813 4 11813 6 11813 18 11813 10 11813 12 11813 14 11813
CODE 44 - Optional Side Shield (option selection based on length & number of side shield sections)
