Reznor HEEDU Parts Manuals - Manual (Page 8)

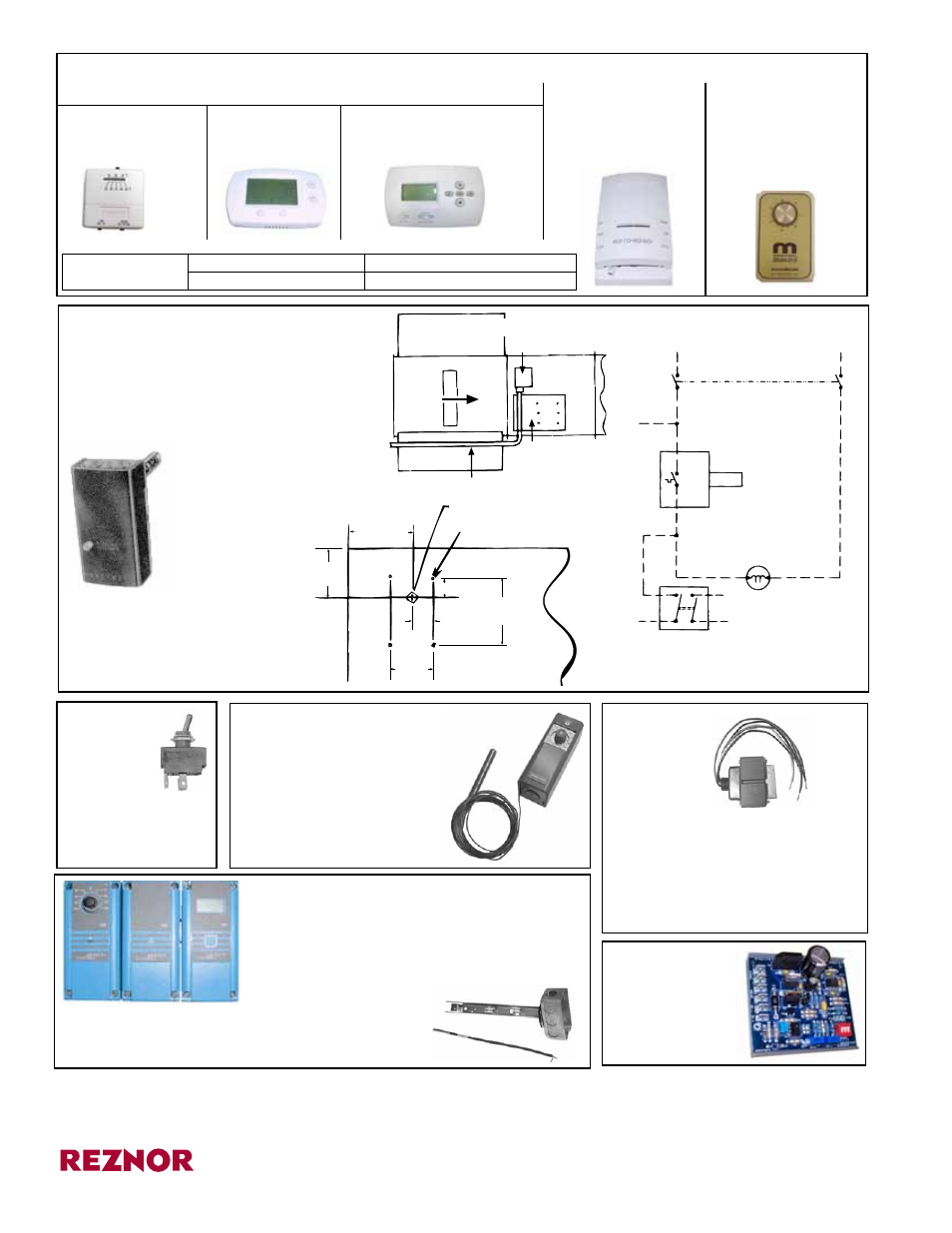

Form P-EEDU, P/N 263547R1, Page 8
Other Components
www.ReznorHVAC.com; 800-695-1901
©2014 Reznor LLC, All rights reserved.
Trademark Notes: Reznor ® is registered in at least the United States. All
other trademarks are the property of their respective owners.
06/14 (Serial No. Date Code BNF) Form P-EEDU (Version A.1)
A B C
A = Temperature Selector, P/N 115848, J/C A350A-1C
B = Stage Adder Module, P/N 115849, J/C S350AA-1C
C = Display Module, P/N 115852, J/C D350AA-1C
P/N 103355, 115/24/40VA, Basler
#BE141650-WAA (replaces P/N 60368);
P/N 103497, 208/230/24/ 40VA, Basler
#BE21539001 (replaces P/N 60369);
P/N 103498, 460/24/40VA, Basler
#BE23975001 (replaces P/N 60370)
Control
Transformer
Two-Stage Electronic Ductstat Modules
(Used in Options AG15 and AG16)
Ductstat Sensor Holder,
P/N 115850
DPST
Control
Switch,
P/N 101902
Two-Stage Ductstat, P/N 41700,
Honeywell (Used in Option AG3)
Fan Control and Gasket Kit,
P/N 57960 (Same as Option CQ1)
HOT COM
120V or 230V
power supply
Line Switch
Fan
Line
Fan
Load
RATING
120V - 14 - F.L.
120V - 84 - L.R.
230V - 7 - F.L.
230V - 42 - L. R.
Blower Motor or Starter Coil
To Gas
Conrol
Circuit
Components:
Fan Control, Honeywell Model
L4064A1347 - P/N 147611
Gasket, #1621 - P/N 57962
Recommended
dial setting for
most conditions
is 130°F ON
and 100°F OFF.
Airflow
Ductwork
inspection panel
Fan Control
Field-supplied electric conduit
for line voltage to blower
Fan Control Wiring
Fan Control Location
May be used as a functional
replacement for Columbus
Electric fan control used on
EEDU Series prior to 6/96.
4” (102mm)
3”
(76mm)
3-5/32”
(80mm)
1-29/32”
(48mm)
1” (25mm)
61/64”
(24mm)
Drill a 3/16" hole for sensor
Drill four 1/8" holes for screws
Fan control is rated for maximum motor size
3/4 HP, 1Ph @ 115 or 230 VAC. Larger motors
or 3 Ph require use of contactor or starter.
Maxitrol Signal
Conditioner
(used in Gas
Control Option
AG21),
P/N 134170
*Bulb Holder, P/N 100260
Cable Strap, P/N 16227
* If P/N 41700 is Essex
brand, the bulb holder
is P/N 104156.
Ductstat Sensor, P/N 115851
(used in Gas Control
Options AG3, AG8,
AG9, AG15 & AG16)
(W.D. 145977)
Fan Control
Mounting Holes
1-Stg Heat/Cool 24V
50-90°F, P/N 255350
(Same as CL1)
2-Stg Heat/Cool
24V, P/N 220630
(Same as CL22)
1-Stg Programmable Heat/
Cool, Digital 24V, P/N
220632 (Same as CL52)
2-Stg Programmable
Heat/Cool, Digital
24V, P/N 221038
(Same as CL33)
Electronic Modulating
Room Override for
Makeup Air, 60-85°F)
24V, P/N 24857
(Same as CL9)
Thermostats and Accessories
Thermostat Guard
with locking cover
Fits CL1, CL22, CL52, CL9 257464 (Same as Option CM1)
Fits CL33 257463 (Same as Option CM1B
®
