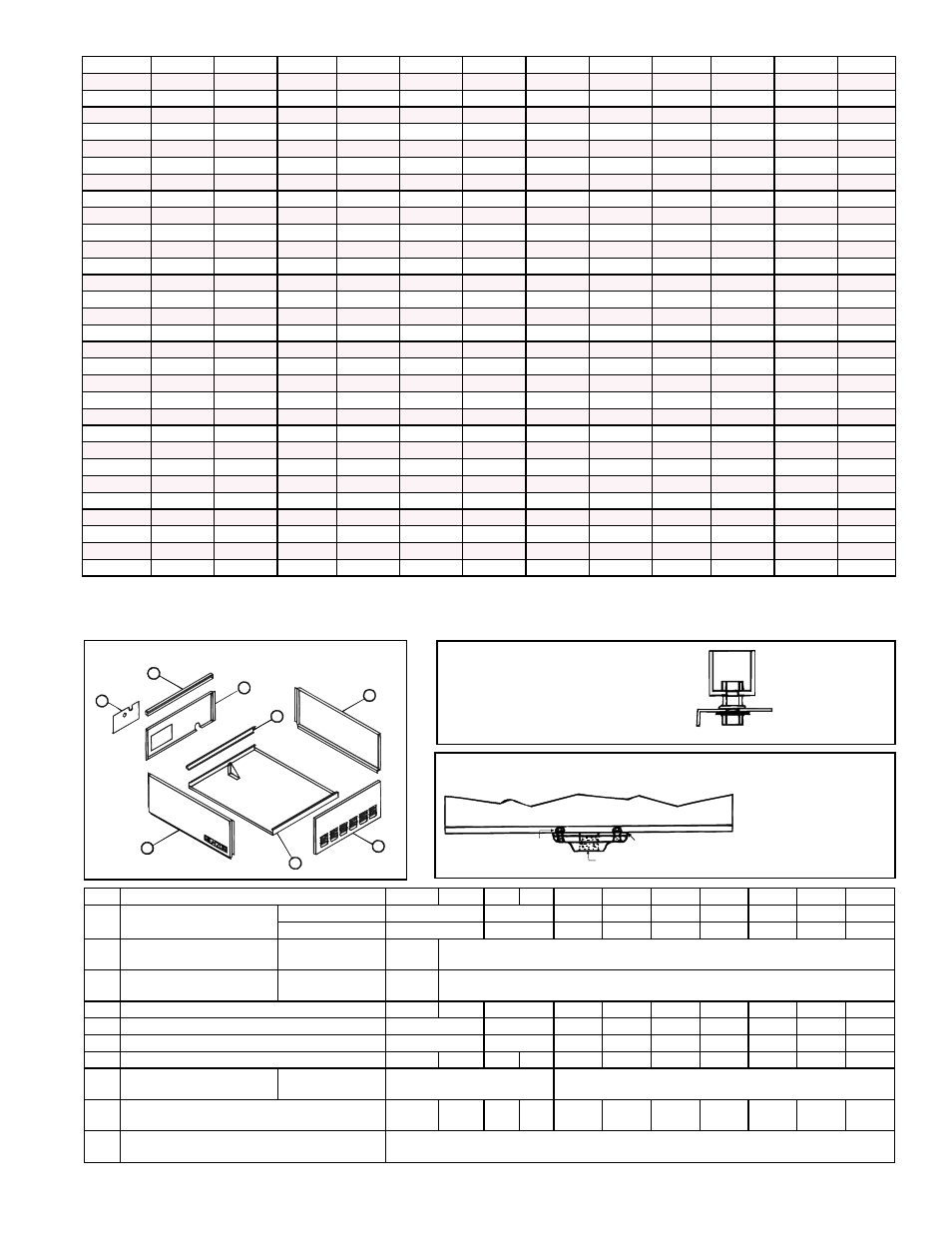

Reznor HEEDU Parts Manuals - Manual (Page 3)

Form P-EEDU, P/N 263547R1, Page 3
Year Jan Feb Mar Apr May June July Aug Sept Oct Nov Dec
1991 AQA AQB AQC AQD AQE AQF AQG AQH AQI AQJ AQK AQL
1992 ARA ARB ARC ARD ARE ARF ARG ARH ARI ARJ ARK ARL
1993 ASA ASB ASC ASD ASE ASF ASG ASH ASI ASJ ASK ASL
1994 ATA ATB ATC ATD ATE ATF ATG ATH ATI ATJ ATK ATL
1995 AUA AUB AUC AUD AUE AUF AUG AUH AUI AUJ AUK AUL
1996 AVA AVB AVC AVD AVE AVF AVG AVH AVI AVJ AVK AVL
1997 AWA AWB AWC AWD AWE AWF AWG AWH AWI AWJ AWK AWL
1998 AXA AXB AXC AXD AXE AXF AXG AXH AXI AXJ AXK AXL
1999 AYA AYB AYC AYD AYE AYF AYG AYH AYI AYJ AYK AYL
2000 AZA AZB AZC AZD AZE AZF AZG AZH AZI AZJ AZK AZL
2001 BAA BAB BAC BAD BAE BAF BAG BAH BAI BAJ BAK BAL
2002 BBA BBB BBC BBD BBE BBF BBG BBH BBI BBJ BBK BBL
2003 BCA BCB BCC BCD BCE BCF BCG BCH BCI BCJ BCK BCL
2004 BDA BDB` BDC BDD BDE BDF BDG BDH BDI BDJ BDK BDL
2005 BEA BEB BEC BED BEE BEF BEG BEH BEI BEJ BEK BEL
2006 BFA BFB BFC BFD BFE BFF BFG BFH BFI BFJ BFK BFL
2007 BGA BGB BGC BGD BGE BGF BGG BGH BGI BGJ BGK BGL
2008 BHA BHB BHC BHD BHE BHF BHG BHH BHI BHJ BHK BHL
2009 BIA BIB BIC BID BIE BIF BIG BIH BII BIJ BIK BIL
2010 BJA BJB BJC BJD BJE BJF BJG BJH BJI BJJ BJK BJL
2011 BKA BKB BKC BKD BKE BKF BKG BKH BKI BKJ BKK BKL
2012 BLA BLB BLC BLD BLE BLF BLG BLH BLI BLJ BLK BLL
2013 BMA BMB BMC BMD BME BMF BMG BMH BMI BMJ BMK BML
2014 BNA BNB BNC BND BNE BNF BNG BNH BNI BNJ BNK BNL
2015 BOA BOB BOC BOD BOE BOF BOG BOH BOI BOJ BOK BOL
2016 BPA BPB BPC BPD BPE BPF BPG BPH BPI BPJ BPK BPL
2017 BQA BQB BQC BQD BQE BQF BQG BQH BQI BQJ BQK BQL
2018 BRA BRB BRC BRD BRE BRF BRG BRH BRI BRJ BRK BRL
2019 BSA BSB BSC BSD BSE BSF BSG BSH BSI BSJ BSK BSL
2020 BTA BTB BTC BTD BTE BTF BTG BTH BTI BTJ BTK BTL
Cabinet Parts, Hanger Kit, and Condensate Drain
Bottom of the Furnace Casing
#10 x 1-1/4 Bolt
and Nut 3/4” Pipe Waste Nut
Gasket
Free-turning,
threaded socket
for 1” pipe
Terminate drain
outside of the
building.
Condensate Drain Kit, P/N 31765 (Same as Option CS1)
Hanger Kit, P/N 57959, Four
Threaded Sockets
(Same as Option CK3)
Socket Assembly only,
P/N 9557
8
7
6
5
2
3
1
4
Cabinet Parts
Code Description 75 100 125 140 170 200 225 250 300 350 400
1 Bottom Pan
Aluminized Steel 85983 85984 85985 85986 85987 85988 85989 85990 85991
Stainless Steel 86050 86051 86052 86053 86054 86055 86056 86057 86058
2 Left Side Panel Assy (Size
75 includes insulation)
Beginning with
Series 6 142099
142080
3 Right Side Panel Assy (Size
75 includes insulation)
Beginning with
Series 6 142100
142081
4 Bottom Front Panel (Size 75 includes insulation) 64692 55378 55386 55392 55398 55404 55410 55422 55434 55444
5 Bottom Stiffening Channel 55379 55387 55393 55399 55405 55411 55423 55435 55445
6 Burner Panel 55506 55507 55508 55509 55510 55511 55512 55513 55514
7 Bottom Rear Channel N/A N/A N/A N/A 65074 65075 65076 65077 65078 65079 65080
8 Rear Cover Plate
(aka Ignition Plate Assy)
Beginning with
Series 6
142053 142054
9A Inner Bottom Panel - Size 75 only ("false
bottom" - not illustrated)
64694 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
9B Painted Side Panel (not illustrated) - Same as
panels in Option AZ9
99125
