Form P-EEDU, P/N 263547R1, Page 5
Code 27 -
Vent Cap
36
37
36
32
31
30
32
37
34
29
30
33
Limit Control (Code 35) on Bracket
(Code 34) is accessible from "inside" or
"outside" the furnace
Outside Inside
Beginning
with
Series 6,
"V-shaped"
tube baffles
(Code 38) fit
in between
the top of
the heat
exchanger
tubes in
Sizes 140-
400
38

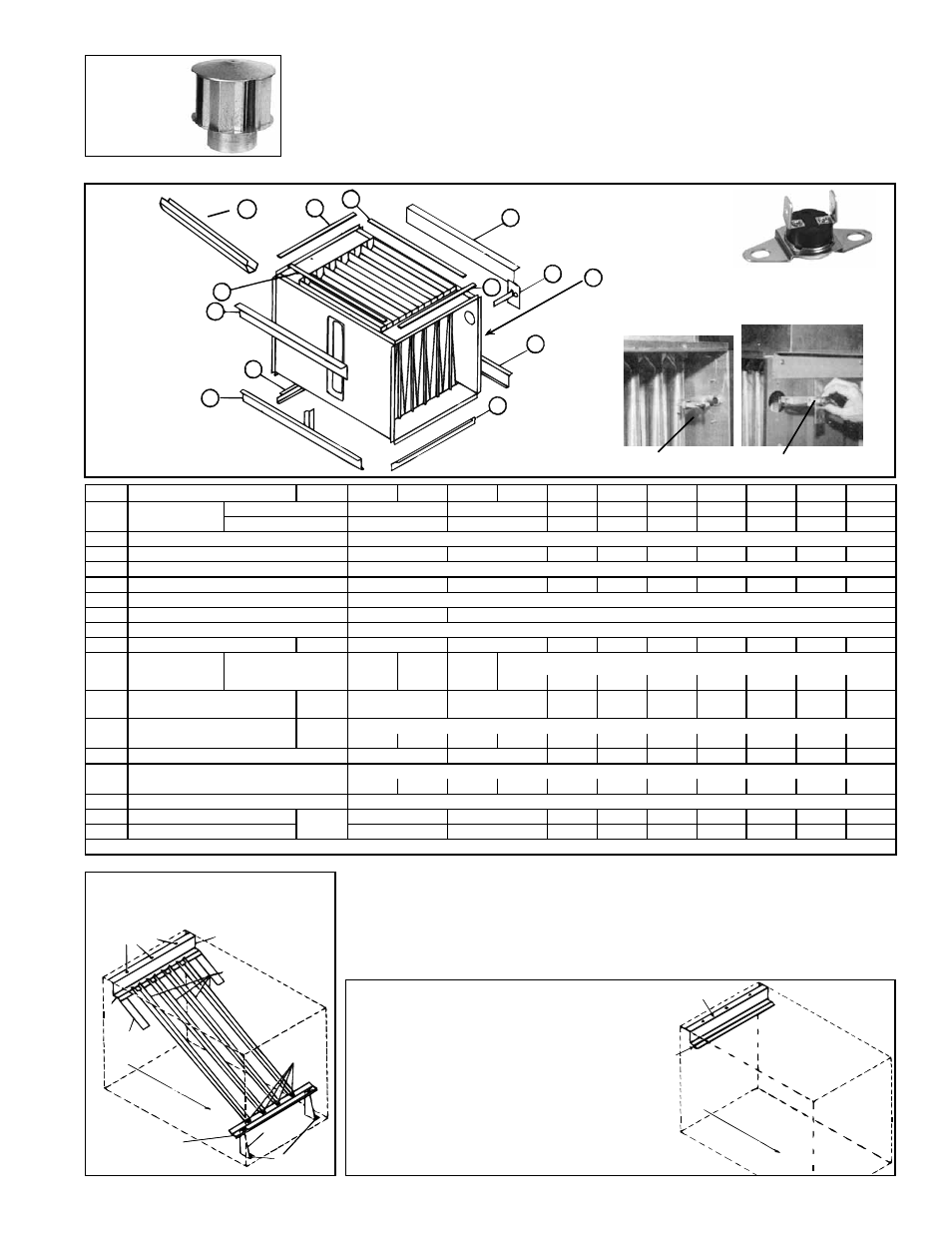

Heat Exchanger and Components
40E
40F
Airflow
40C
Attach with
screws 40E
40B
Screws
40D
40F
40A
Airflow
Screws
Code 40 - Heat Exchanger
Baffle Assembly
Heat Exchanger Baffle Assembly
All Model EEDU units have a heat exchanger directional air baffle assembly.
When replacing a heat exchanger, check to see if the baffle assembly can be salvaged.
If the baffle assembly cannot be salvaged, Code 40 must be ordered separately and be
field installed in the replacement heat exchanger. The heat exchanger baffle assembly
for a Model EEDU furnace includes Codes 40A, 40B, 40C, 40D, 40E, and 40F.
Code 35 -
Limit
Control
Code Description (Qty*) 75 100 125 140 170 200 225 250 300 350 400
29 Heat Exchanger
Aluminized Steel 65094 65095 65096 65097 65098 65099 65100 65101 65102
321 Stainless Steel 59174 59180 59186 59192 59198 59204 59210 59216 59222
30 Burner Angle ( 2) 55452
31 Rear Burner Support 54419 45632 45639 45646 45653 45660 45667 45674 45681
32 Hanger Support Angle (2) 55505
33 Baffle 54420 46217 46218 46219 46220 46221 46222 46223 46224
34 Limit Control Bracket 63175
35 Limit Control 36T21 85449, 200°F 45602, 180°F
36 Side Gasket Strip Craneglas (2) 62933
37 Front and Rear Gasket Strip (2) 62921 62922 62923 62924 62925 62926 62927 62929 62931
38 Tube Baffles
Beginning with Series 6
(None prior to Series 6)
-- -- --
85727
(5) (6) (7) (8) (8) (11) (13) (15)
40 Heat Exchanger Baffle Assembly
EEDU
only
55094 55095 55519 55096 55520 55097 55539 55540 55541
40A Baffle Support Bracket
EEDU
only
55101
(2) (2) (2) (2) (2) (2) (2) (2) (4) (4) (4)
40B Bottom Baffle Support 46478 46484 52497 46489 52498 46494 52499 52500 52501
40C Finger Baffle
45399
(3) (3) (4) (4) (5) (6) (7) (8) (10) (12) (14)
40D Side Finger Baffle (2) 55128
40E Rear Top Baffle Support EEDU &
HEEDU
55103 55104 55105 55106 55107 55108 55109 55111 55113
40F Rear Top Baffle 55116 55117 55118 55119 55120 55121 55122 55124 55126
*Quantity other than one is in parenthesis; a quantity at the beginning of the row applies to all sizes.
Model HEEDU units designed for high CFM have
only a rear top baffle support (Code 40E) and a
rear top baffle (Code 40F). If these parts cannot be
salvaged, order and install replacements.
Baffle parts cannot be installed in the replace-
ment heat exchanger at the factory. They must be
ordered separately and installed in the field.
NOTE: Model HEEDU was discontinued 6/2011.
High CFM conversion instructions are included
with Model EEDU; refer to Form I-EEDU (Version
B or later) and contact factory for required label.
