26
Table 11
Figure 10

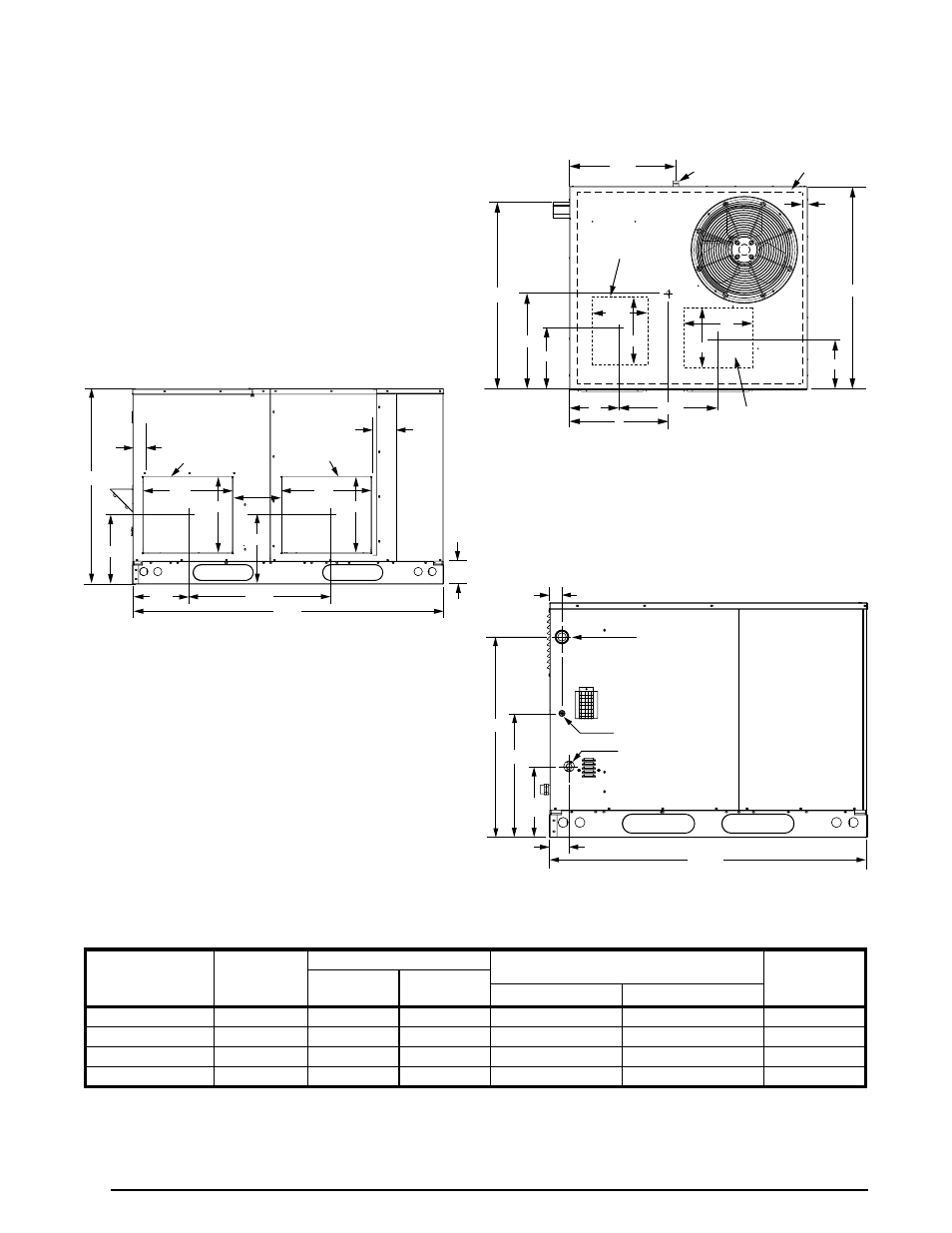

Figure 10. Unit Dimensions
Table 11. Center of Gravity & Shipping Weights
MODEL
NUMBER
UNIT
WEIGHT
(LB)
CENTER OF GRAVITY -C-
(HEIGHT IN INCHES)
-D-
-A- -B-
WITH BASE RAILS WITHOUT BASE RAILS
E24K080X 437 26.0 27.0 39.0 35.3 55.8
E36K100X 457 26.0 27.0 39.0 35.3 55.8
E48K120X 530 27.0 26.5 47.0 43.3 55.8
E60K120X 630 30.0 26.5 47.0 43.3 63.6*
NOTE: Unit weights shown are with the unit unpacked.
*Extended base pan models use same roof curb as 2 - 4 ton units.
Top View
31.5
13.50
16
12
13.31
16
CG
A
3/4" NPT
FEMALE DRAIN
CONNECTOR
B
DOWNFLOW
SUPPLY DUCT
OPENING
DOWNFLOW
RETURN DUCT
OPENING
23.50
45.75
13.50
12
47.50
INSIDE PERIMETER
OF BASE RAIL
(IF USED)
2.63
Side View
47.50
ELECTRIC
SUPPLY ENTRY
LOW VOLTAGE ENTRY
GAS SUPPLY
ENTRY
15.75
23.63
30
2.90
1.8
BLOWER
ACCESS
Back View
12.45
12.45
4.0
D
8.75
HORIZONTAL
SUPPLY DUCT
OPENING
HORIZONTAL
RETURN DUCT
OPENING
4.0
1.75
9.75 24.75
16.0
CONDENSING
COIL
13.5
16.0 16.0
C
13.5
FIGURES & TABLES
Dimensions shown in inches (mm)
