Top View
24 9/10
13 1/2
16
12
13 3/10
13 1/2
16
12
CG
A
47 1/2
3/4" NPT Female
Drain Connector
B
DOWNFLOW
SUPPLY DUCT
OPENING
DOWNFLOW
RETURN DUCT
OPENING
23 1/2
Back View
13.5
16.0
13.7
13.5
16.0
12.45
11.75 22.75
55.8
C
HORIZONTAL
SUPPLY DUCT
OPENING HORIZONTAL
RETURN DUCT
OPENING
4.0
CONDENSING
COIL
5.0
8
4.00
Table 4. Center of Gravity & Unit Shipping Weights
Model Number
Q6SD-/PPH1SD
Unit
Weight
Center of Gravity Height -C-
(in inches)
-A- -B-
with base rails without base rails
X36 460 28.0 25.5 39.0 35.3
X48 570 29.5 26.0 43.0 39.3
X60 580 29.5 26.0 43.0 39.3
Side View
1 1/4 Ø Power Entry
1 3/4 Ø Power Entry (Capped)
22/25 Ø Control Wiring Entry
23 3/5
27 1/5
30
1 4/5
4

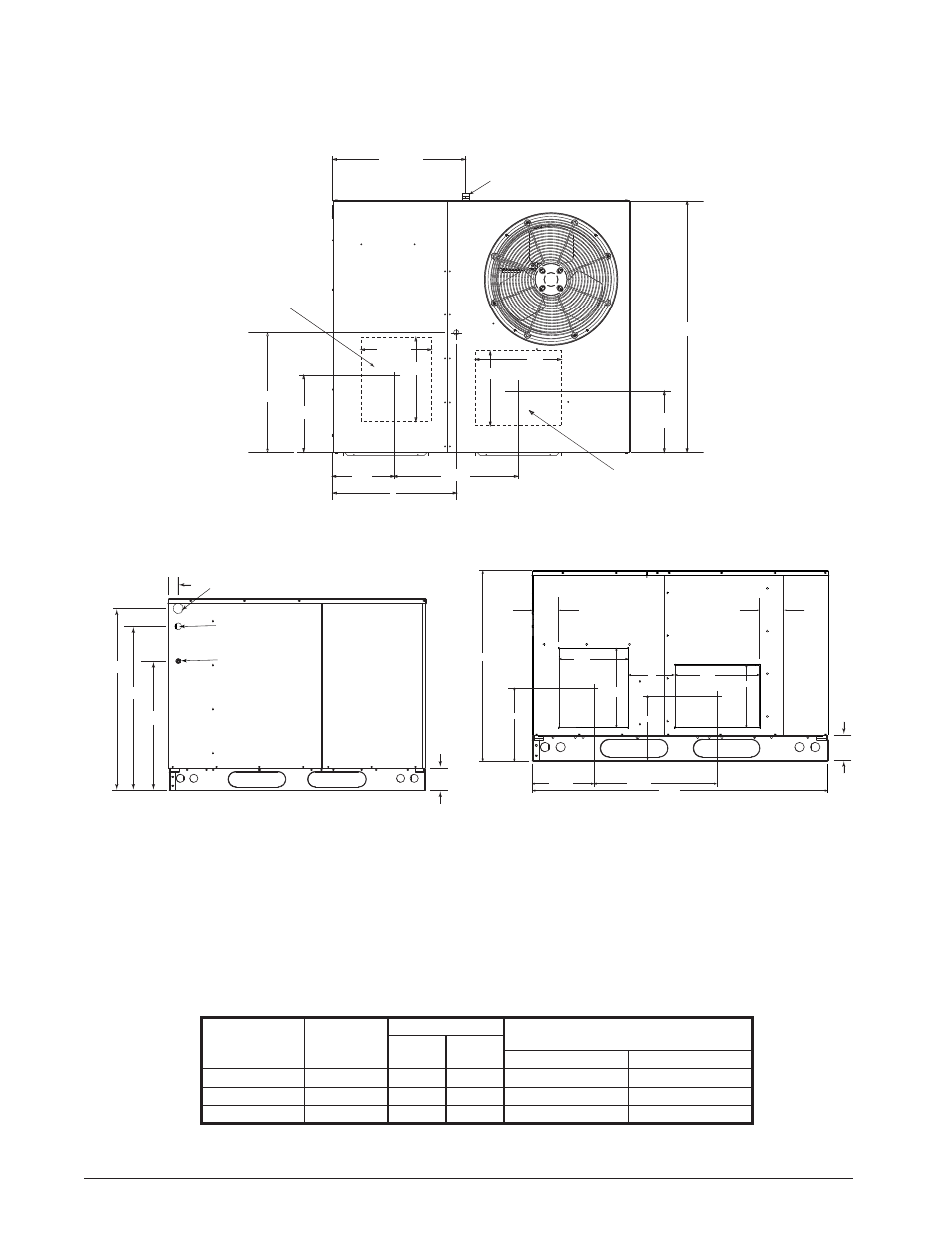

Figure 7. Q6SD Heat pump Dimensions
