Two washers (from the kit) are required between
the hanger bar and the heater to provide clearance
for removing the heater side panel for service.

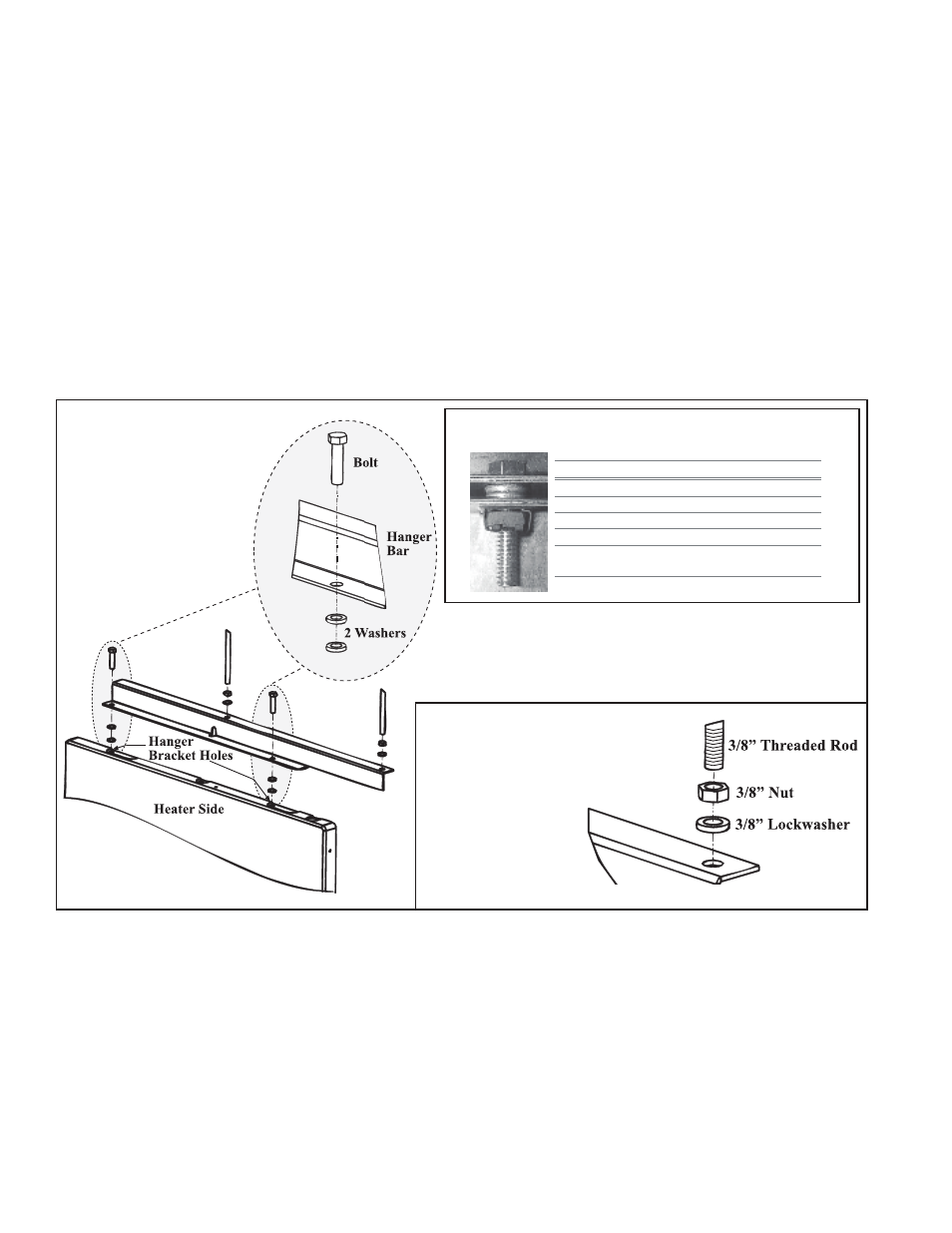

FIGURE 6D - Use
threaded hanger
rods to suspend the
heater from the
hanger bar
suspension points
(hardware and
rods are field
supplied)
Sequence:
Bolt
Hanger Bar
2 Washers
Heater Top Panel
Hanger Bracket Nut (behind the heater side
panel; do not remove side panel)
FIGURE 6C - Attach a
Hanger Bar along the Top
Edge on Each Side of the
Heater (bars extend out
over the blower)
View of hanger bar hardware with heater side panel removed
(for illustration only; do not remove side panel to install)
Installation Instructions for Option CK19
Tools Required - 9/16" Open-End Wrench
1.
Locate the four hanger bracket holes in the top of the heater cabinet (two on
each side).
2.
On the side of the heater where the electrical supply connects, carefully place
two lockwashers over each hanger bracket hole. From the kit, select the hanger
bar with the wider flange and the cutout hole in the center. Position the hanger
bar along the top edge of the heater on top of the washers. (Two washers are
required between the heater and the hanger bar to allow for removal of the side
panel.). Attach the hanger bar with two of the bolts, securing them to the hanger
bracket weld nut. See FIGURE 6C.
3.
Attach the left side hanger bar the same way using the remaining four washers
and two bolts.
4.
The heater is ready for suspension from 3/8" threaded hanger rods. Use field-
supplied hardware to attach the hanger rods as illustrated in FIGURE 6D.
OPTION CK19 -
Alternative 4-Pt
Suspension
Points for Model B
Blower Units
(cont'd)
