Page 5

Form I-OPT-HK (Version A.1), Mfg #98346 (Rev 4), Page 5
OPTION CK10 -
4-Point
Suspension with
Swivel Connectors
(Models LDAP;
UDAP, UDAS;
UDBP, UDBS; F, B;
OH, OB, RA, RAD -
See paragraph for
specific
applications)
Option CK10 (Package P/N 134477) Swivels for 1/2"
hanger rods/brackets includes:

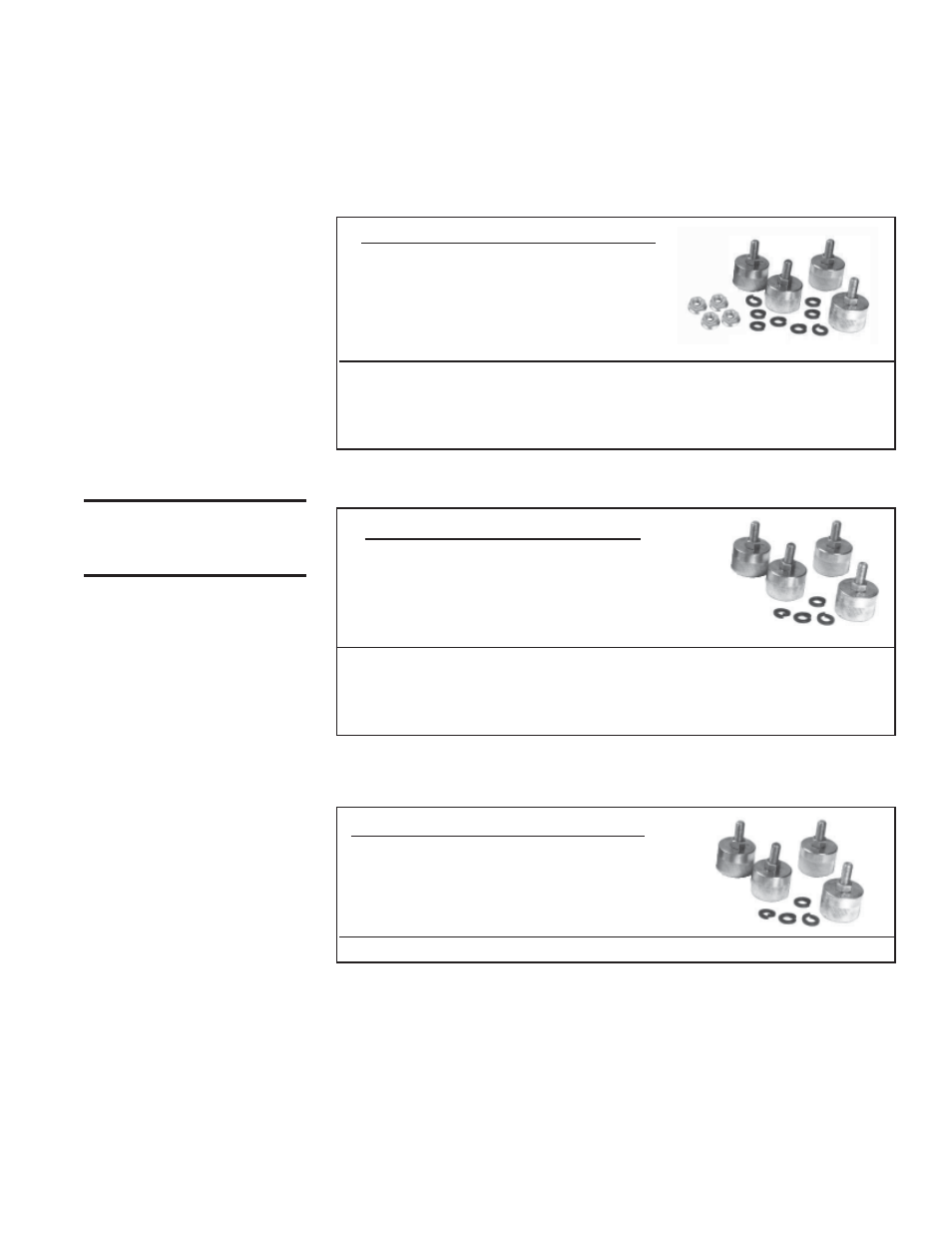

FIGURE 5B - Swivel Hanger Kit,
P/N 134477 for 1/2" Hanger Brackets
Applications: All sizes of Models OH/OB/RA/RAD manufactured beginning
10/94 (NOTE: Models RA/RAD 350 manufactured prior to 10/94 have 7/16"
hanger brackets. A swivel hanger kit is not available for RA/RAD 350 with
7/16" hanger brackets.)
This option is designed to add swivel connectors to a Model F unit heater that
is already equipped with optional 4-point suspension or to a Model LDAP,
UDAP, UDAS, UDBP, UDBS, B, OH, OB, RA or RAD heater that is standardly
equipped with 4-point suspension. The four swivel connections allow the heater
to be suspended from four 1", threaded stationary pipes.
Option CK10 (Package P/N 98511) Swivels for 3/8"
hanger rods/brackets includes:
Qty Description
P/N
4
Swivel Connector Assy 134476
4
1/2" Lockwasher
45549
CAUTION: Check to be
sure that all swivels turn
freely.
(NOTE: Model F kits also
apply to obsolete Model FE.
Model B kits also apply to
obsolete Model BE.)
FIGURE 5A - Swivel Hanger Kit,
P/N 98511, for 3/8" Hanger Brackets
Applications: All sizes of Models UDAP/UDAS ; all sizes of Models UDBP/
UDBS ; all sizes of Models F/B ; all sizes of Models OH/OB manufactured
prior to 10/94; and Models RA/RAD 110/140/235 manufactured prior to 10/
94.
Qty Description
P/N
4
Swivel Connector Assy
17627
8
3/8" Lockwasher
5197
4
3/8" Hex Nuts
1438
FIGURE 5C - Swivel Hanger Kit,
P/N 207938, for 1/2" Hanger Brackets
Applications: All sizes of Model LDAP .
Qty Description
P/N
4
Swivel Connector Assy
207939
4
1/2" Lockwasher
45549
Option CK10 (Package P/N 207938) Swivels for 1/2"
hanger rods/brackets includes:
Installation
Instructions for
Option CK10
Select the instructions for the unit being installed.
Models UDAS, UDAP, F, B -
Follow the same instructions as for Option CK8,
pages 3-4. Repeat the process at all four hanger bracket locations. (NOTE: The
four nuts and four of the washers in the kit will not be used.)
(UDAS NOTE: Be sure that any unused suspension holes on the control side
are plugged; see heater installation instructions. )
Models UDBP, UDBS - The suspension points on the hanger bar on the top of
Model UDBP and UDBS heaters are not threaded. At each hole, place a
lockwasher, insert the swivel through the lockwasher and the hanger bar. Fas-
