Page 4

Form I-OPT-HK (Version A.1), Mfg #98346 (Rev 4), Page 4
OPTION CK9 -
4-Point
Suspension with
Swivel Connectors
- Models F only

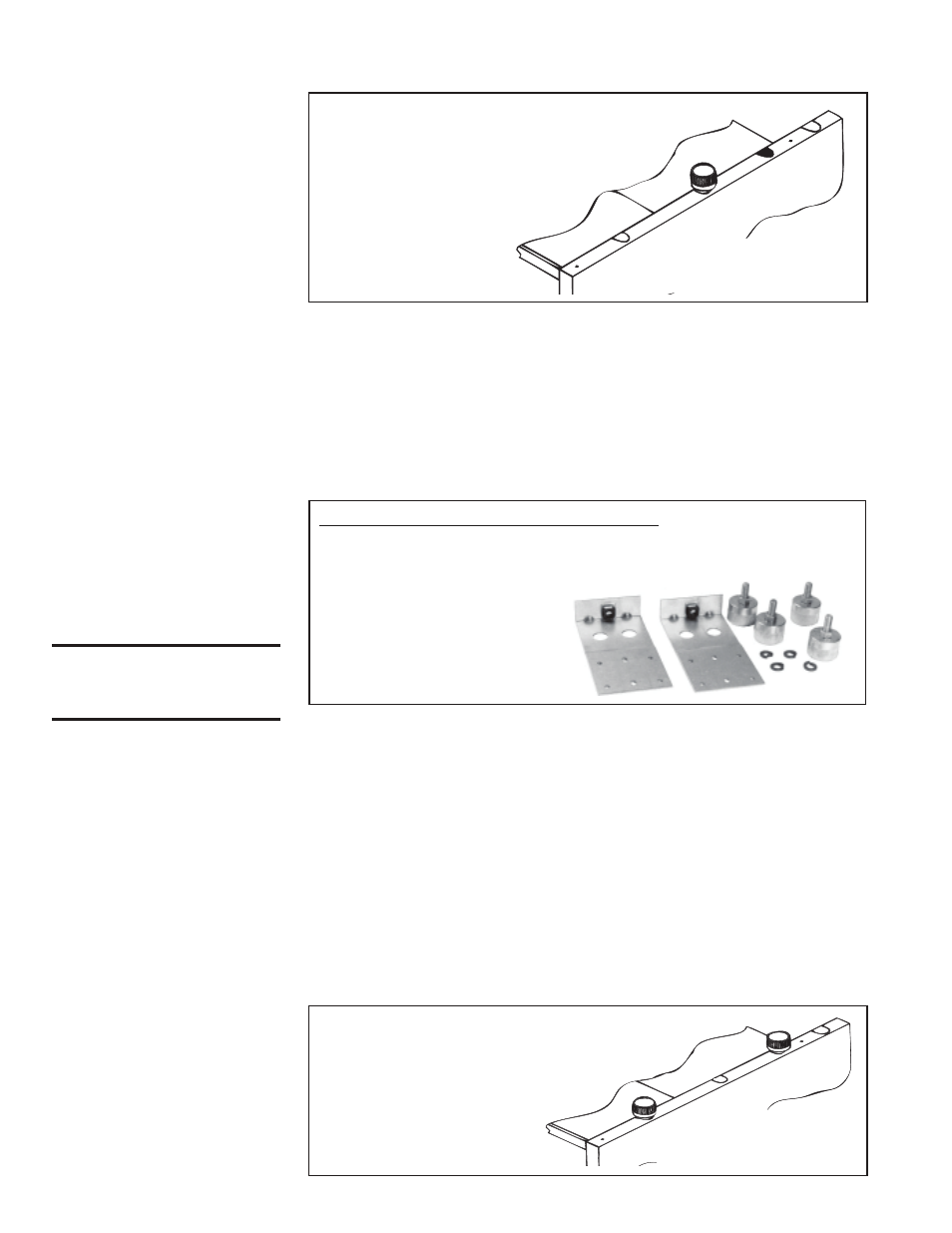

FIGURE 4A - Swivel 4-pt
Hanger Kit, Option CK9
CAUTION: Check to be
sure that all swivels turn
freely.
OPTION CK8 -
2-Point
Suspension with
Swivel Connectors
-Models UDAP,
UDAS, and F
(cont'd)
Models UDAP, UDAS, and F
4.
Repeat Steps 2 and 3 at the other suspension point.
5.
Installation of the 2-point swivel connection kit is complete. Follow the instruc-
tions in the heater installation manual to complete installation of the heater.
Hanger Option Kits and Instructions (cont'd)
This option is designed to convert a Model F with standard 2-point suspension
to 4-point suspension with swivel connectors.
Option CK9 (Package P/N 98510) includes:
Qty Description
P/N
2
Hanger Bracket Assembly
98386
4
Swivel Connector Assembly 17627
4
3/8" Lockwasher
5197
FIGURE 3D - 2-Point
Suspension with Swivel
Connectors - Model F
Installation Instructions for Option CK9
Tools Required - 9/16" Open-End Wrench; 5/16" Nut Driver
1. Convert to 4-point Suspension -
Refer to instructions for Option CK7 on
pages 2-3. Follow Steps 1 through 5 to convert the heater to 4-point suspension.
2. Install Swivel Connectors -
Refer to instructions for Option CK8 on page 3.
Follow Model F Steps 1 through 3 to install the swivel connection. Attach a
swivel at each suspension point. See FIGURE 4B.
3.
Installation of the 4-point suspension kit with swivel connections is complete.
Since the crate bottom has been removed, protect the bottom of the heater with
plywood or other appropriate material. If the bottom is not supported, the bottom
access panel could be damaged.
Follow the instructions in the heater installation manual to complete the instal-
lation of your heater.
(NOTE: Also applies to
obsolete Model FE)
FIGURE 4b - 4-Point Suspension
with Swivel Connectors - Model F
