Form I-OPT-HK (Version A.1), Mfg #98346 (Rev 4), Page 2
OPTION CK7 -
4-Point
Suspension for
Models F
FIGURE 2A
- Hanger Kit
Option CK7
Installation Instructions for Option CK7
Tools Required - 5/16" Nut Driver
1. Remove the heater from the carton.
Remove the wooden crate bottom from the bottom of the heater.
Remove one of the heater outer side panels.
2. Remove the Factory-Installed Hanger Bracket Assembly
Remove the two screws that are holding the factory-installed hanger bracket
assembly to the heater. Re-insert the two screws (without the hanger bracket)
into the same holes in the heater inner side panel.
3. Determine the new locations for the two hanger bracket assemblies (one from
the kit and the one removed in Step 2). See FIGURE 2B.
FIGURE 2B - New
Bracket Locations
Option Kits and Instructions

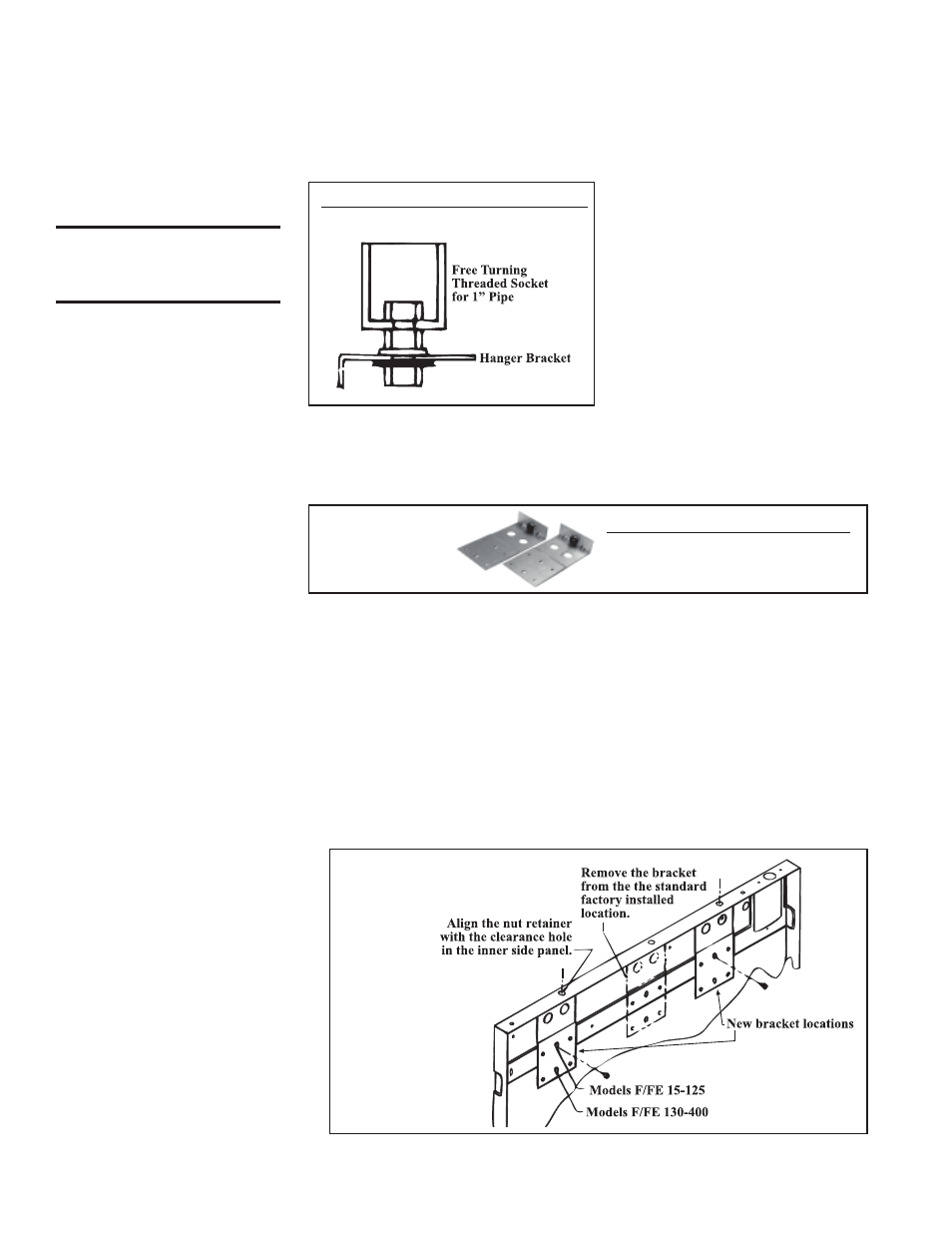

FIGURE 1
Instructions
1. Remove lockwasher and nut
from swivel connector.
2. Put bolt down through hole in the
hanger bracket.
3. Attach securely with lockwasher
and nut.
4. Repeat on all hanger brackets.
OPTION CK3 -
Swivel Connectors
for Model Series
EEDU
This option is designed to add swivel connections to a Model (H)EEDU duct
furnace to suspend a single furnace from four 1" threaded stationary pipes.
Option CK3 (Package P/N 57959) includes:
Qty Description P/N
4 Swivel Connector Assy 9557
This option is designed to convert a Model F with standard 2-point suspension
to 4-point suspension.
Option CK7 (Package P/N 98508) includes:
Qty Description P/N
2 Hanger Bracket 96386
Assembly
CAUTION: Check to be
sure that all swivels turn
freely.
4. Install Hanger Bracket Assemblies - Remove the screw from the inner side
panel at one of the new locations. Position one of the hanger bracket assemblies
(NOTE: Also applies to
obsolete Model FE.)
