accordance with the Standard for Parking
Structures, ANSI/NFPA 88A, or the Standard
for Repair Garages, ANSI/NFPA 88B, or the
Canadian
Natural Gas and Propane
Installation Code, CSA B149.1, and are so
marked. Ensure that minimum clearances will
be maintained to vehicles parked below the
heater.
F. The standard heaters are approved for
installations between 0 - 2000ft (0 - 610m) for
the US and 0 - 4500 ft (1370m) for Canada.
Conversion kits are available on installations
above these heights in the USA.
G. Massachusetts Requirement: If the
heater is being installed in the Commonwealth
of Massachusetts, this unit must be installed by
a licensed plumber or licenced gas fitter.
1.2 Heater Suspension
Attachment to the heater support lugs should be
made by D shackle. The hanging attachments to
overhead steelwork etc. must be purpose made
to sound engineering practice or supplied by
others. They must be adequately fixed and
designed to carry the whole weight of the
heater. In the event of suitable roof steelwork
being unavailable, additional steelwork should
be fitted to enable vertical hangers to be used
for suspending the heaters.
These methods are illustrated in Figure 1. If
there are any doubts as to the strength or
suitability of roof steelwork to which heaters are
to be suspended, please refer to a Consultant,
Architect or owner of the building.
It is recommended that the heater is raised to its
final position once the assembly of the tube/
bracket/reflector has been completed. Longer
tube assemblies may be raised in more than
one sub-assembly with final tube connection
made in the air.

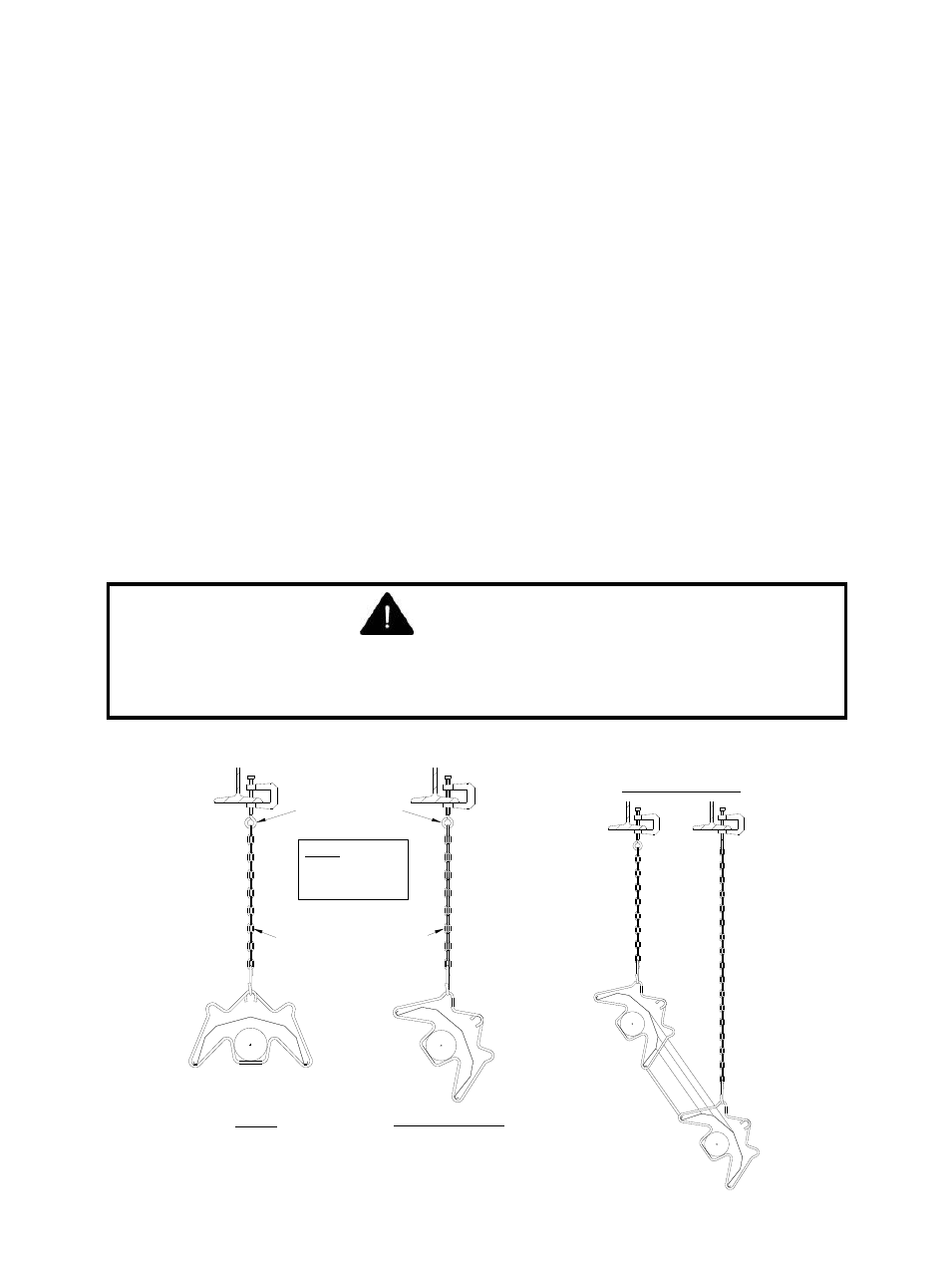

Figure 1. Recommended Methods of Heater Suspension.
WARNING:
If not installed, operated and maintained in accordance with the manufacturer’s instructions,
this product could expose you to substances in fuel or from fuel combustion which are
known to the state of California to cause cancer, birth defects or other reproductive harm.
CHAIN 55° SUSPENSION
2/0 GA CHAIN
(TWISTED LINK, PLATED)
NOTE.
HOOKS ARE TO
BE CLOSED UP
AFTER ASSEMBLY
EYE HOOKS
EXHAUST
END
BURNER
END
U TUBE VARIANTS
Suitable Chain
Working Load Limit
100lb.
