Perfect Aire PATWH14002 - Manual (Page 20)

4
2
3
4 4
4 4
3
8 3 8

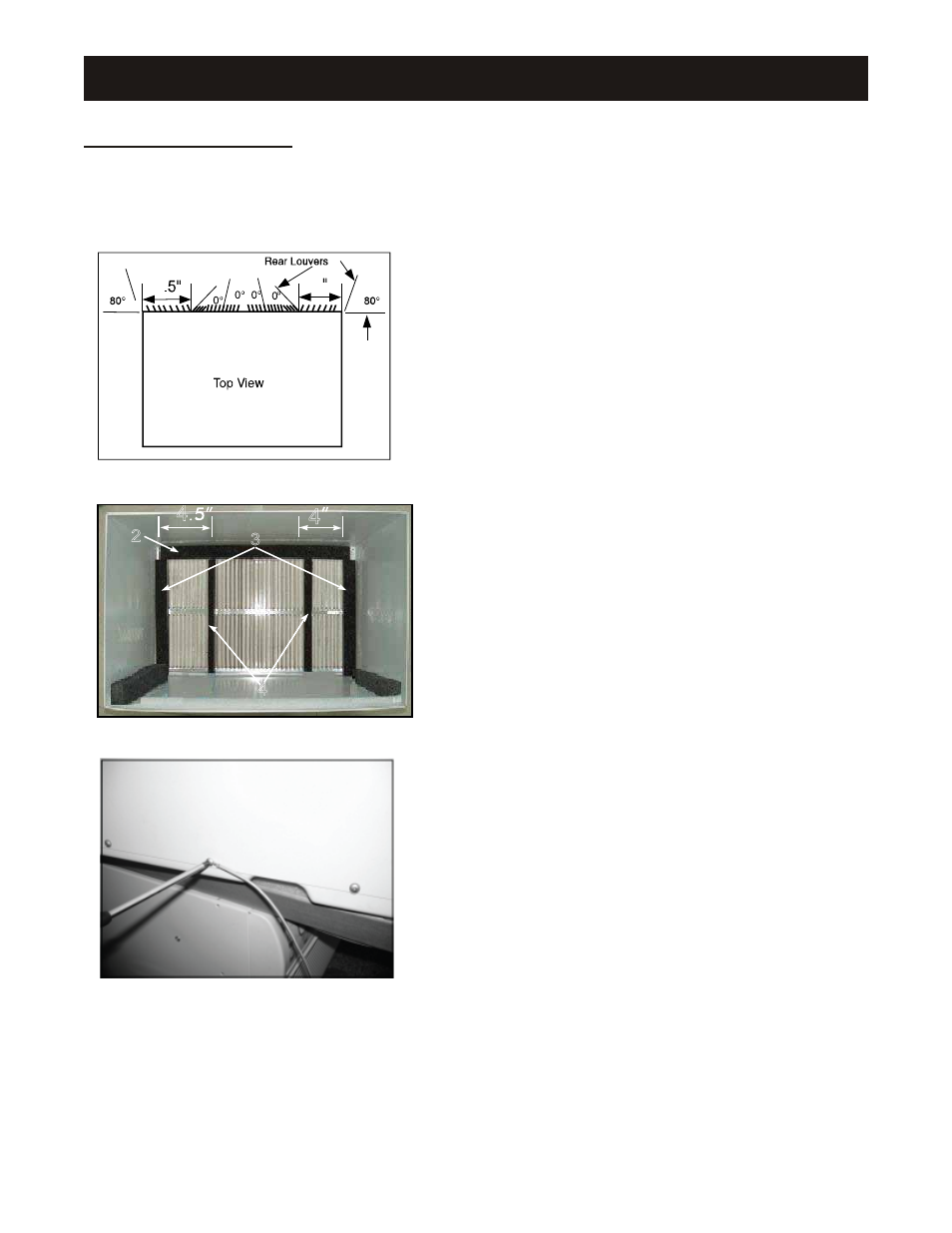

#8 Perfect Aire, White Westinghouse,
Frigidaire, Carrier 52F Series •
16” & 17½” Deep
1. Remove existing rear grille as shown on page 11
of this manual and replace with provided louvered
panel. Install as shown here.
Note: You may need to drill holes in flange of existing
sleeve to match new rear grille.
Because of the increased unit depth, first try dry
fitting, using methods described below:
2. Attach (1) 1“ x 3
/
8
” x 25“ long seal in the center at the top
of the sleeve. Remove the backing and press into position.
3. Attach (2) 1” x 3
/
8
“ x 14” long seals to the left and right
sides of the sleeve.
4. Attach (1) 1“ x ¾” x 14“ long seal vertically 4.5” from the
left side of the sleeve. Attach the other 1“ x ¾” x 14“ long
seal from the right slide of the sleeve.
5. Center unit and gently slide unit into sleeve.
6. Before sliding all of the way back, remove 2nd screw from
front on left side of unit.
7. Remove the plastic washer from the screw.
8. Screw and attach the other end of the ground wire to the
unit as shown in picture. Make sure that the toothed washer
is against the cabinet.
9. Slide the unit completely to the rear to ensure a good
seal, making sure the ground wire does not become tangled.
10. Seal & frame the unit as described on page 22.
11. If you have difficulty with mounthing the grille to the
sleeve, follow the instructions for direct mounting on
page 21.
INSTALLATION INSTRUCTIONS (CONTINUED)
Wall Sleeve Brands:
19
