Perfect Aire PATWH14002 - Manual (Page 15)

5
4 4
4 4
3
8 3 8

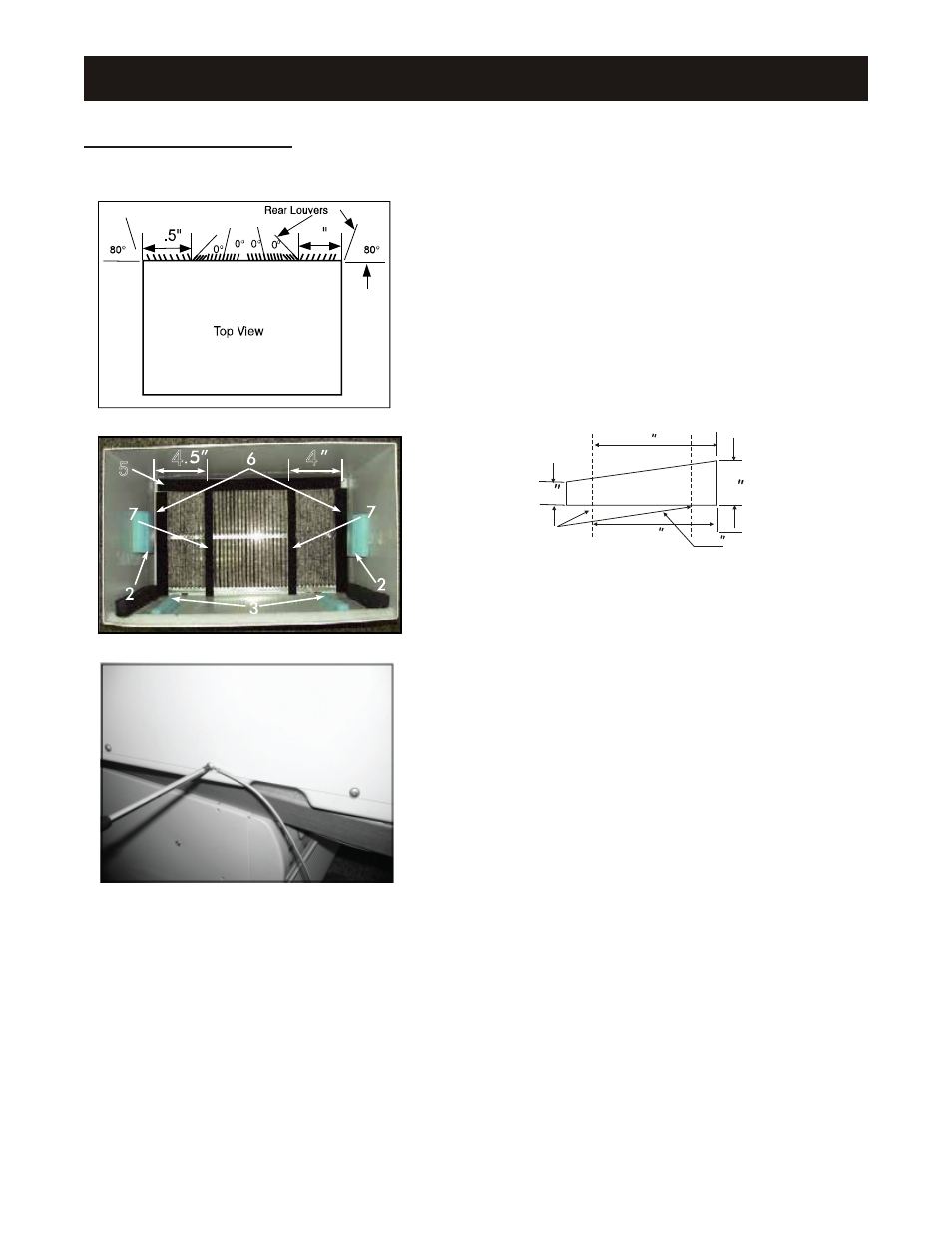

#3 Fedders or Friedrich • 16¾” Deep
1. Remove existing rear grille as shown on page 11
of this manual and replace with provided louvered
panel. Install as shown here.
Note: You may need to drill holes in flange of existing
sleeve to match new rear grille.
2. Attach (2) 4½“ x 3½” x 1½” centering/support
blocks, one on each side wall. Place in center of side
walls with the tapered end facing the opening.
3. Cut (2) 17” Tapered Spacer Blocks as shown below
into three pieces.
4. The 2½” section is placed in front of the rib on base
with the tapered end facing the back of the sleeve. Cut
the remaining portion to 12½” and place behind the rib
again, sloping toward the rear of the sleeve. This helps to
induce a rearward slope on the unit.
5. Attach (1) 1” x 3
/
8
” x 25” long seal in the center at the top
of the sleeve. Remove backing paper and press into position.
6. Attach (2) 1” x 3
/
8
” x 14” seals to the left and right sides of
the sleeve.
7. Cut (2) 1” x 3
/
8
” x 25” long seals to 14” long and attach to
the vertical sections of the rear grille as shown.
8. Gently slide unit into sleeve.
9. Before sliding all of the way back, remove 2nd screw from
front on left side of unit.
10. Remove the plastic washer from the screw.
11. Screw and attach the other end of the ground wire to the
unit as shown in picture. Make sure that the toothed washer
is against the cabinet.
12. Slide the unit completely to the rear to ensure a good
seal, making sure the ground wire does not become tangled.
13. Seal & frame the unit as described on page 22.
14. If you have difficulty with mounting the grille to the sleeve
follow the instructions for direct mounting on page 21.
Cut Here
3 /
4
17
Tapered Spacer Block
1
Protection Paper Backing
12-1/2
2-1/2
INSTALLATION INSTRUCTIONS (CONTINUED)
Wall Sleeve Brands:
14
