Wall Sleeve Brands:
#1 Emerson • 15” Deep

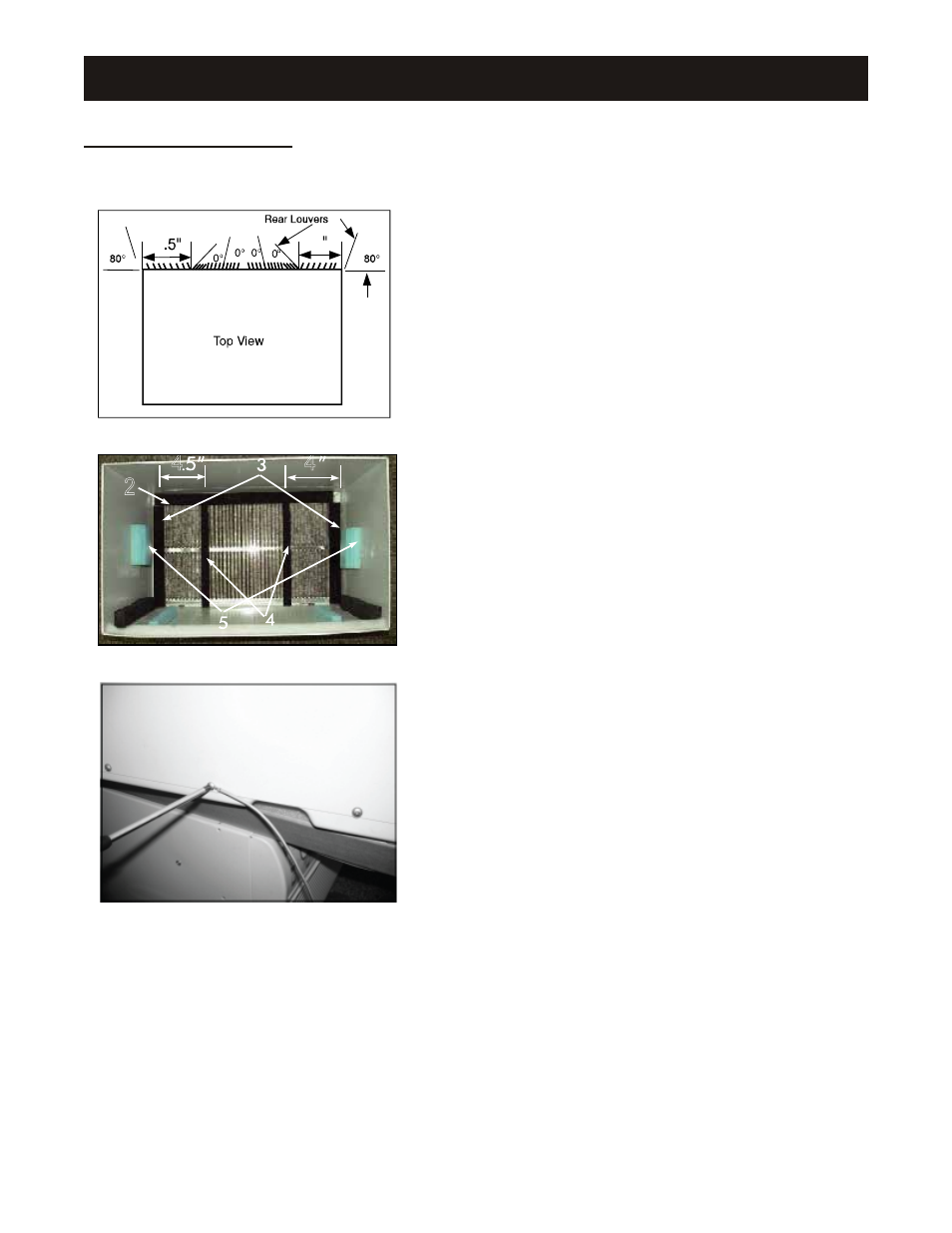

1. Remove existing rear grille as shown on page 11
of this manual and replace with provided louvered
panel. Install as shown here.
Note: You may need to drill holes in flange of existing
sleeve to match new rear grille.
2. Attach (1) 1” x 3
/
8
” x 25” long seal in the center at
the top of the sleeve. Remove the backing paper and
press into position.
3. Attach the (2) 1” x 3
/
8
” x 14” long seals to the left
and right sides of the sleeve.
4. Cut (2) 1” x 3
/
8
” x 25” long seals to 14” long and
attach to the vertical sections of the rear grille
as shown.
5. Attach (2) 4½” x 3½” x1½” centering/support
blocks, one on each side wall. Place in center of side
wall with the tapered end facing the opening.
6. Gently slide unit into sleeve.
7. Before sliding all the way back, remove 2nd screw
from front on left side of unit.
8. Remove the plastic washer from the screw.
9. Screw and attach the other end of the ground wire
to the unit as shown in picture. Make sure that the toothed
washer is against the cabinet.
10. Slide the unit completely to the rear to ensure a
good seal, making sure the ground wire does not
become tangled.
11. Seal & frame the unit as described on page 22.
12. If you have difficulty with mounting the grille to the
sleeve, follow the instructions for direct mounting on
page 21.
2
4 4
4 4
3
8 3 8
INSTALLATION INSTRUCTIONS (CONTINUED)
