Perfect Aire PATWH14002 - Manual (Page 14)

Cut Here
3 /
4
17
Tapered Spacer Block
1
Protection Paper
Backing
5
4
4 4
4 4
3
8 3 8
#2 Fedders • 19¾” Deep

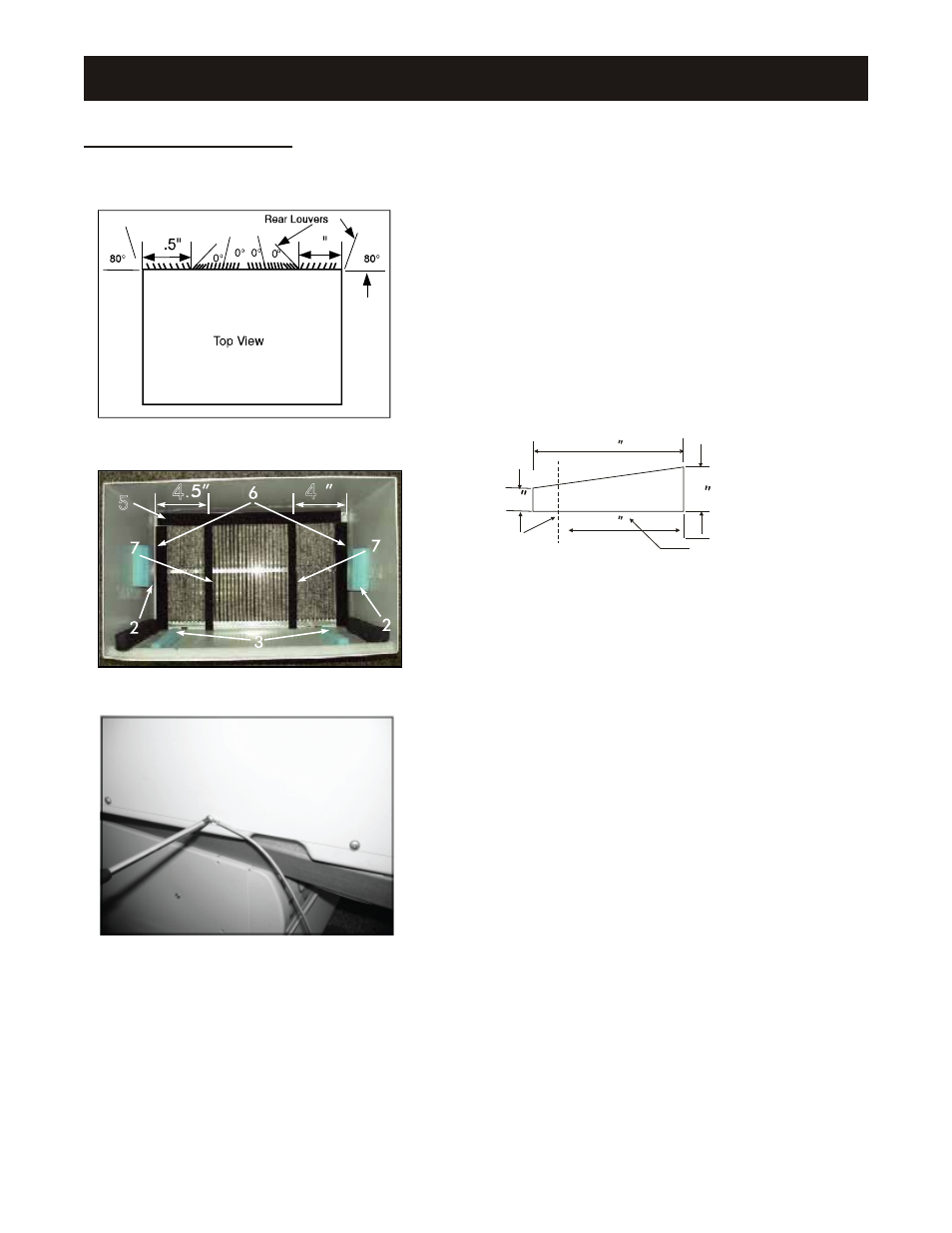

1. Remove existing rear grille as shown on page 11
of this manual and replace with provided louvered
panel. Install as shown here.
Note: You may need to drill holes in flange of existing
sleeve to match new rear grille.
2. Attach (2) 4½” x 3½” x 1½” centering/support
blocks, one on each side wall. Place in center of side
walls with the tapered end facing the opening.
3. Cut the (2) 17” Tapered Spacer Blocks as shown
below into two pieces.
4. The 4“ section is placed in front of the rib on base
with the tapered end facing the back of the sleeve. The
remaining portion behind the rib again is sloping toward
the rear of the sleeve. This helps induce a rearward slope
on the unit.
5. Attach (1) 1” x
3
/
8
” x 25” long seal in the center at the
top of the sleeve. Remove the backing paper and press
into position.
6. Attach (2) 1” x
3
/
8
” x 14” long seals to the left and right
sides of the sleeve.
7. Cut (2) 1” x
3
/
8
” x 25” long seal to 14” long and attach
it to the vertical sections of the rear grille as shown.
8. Gently slide unit into sleeve.
9. Before sliding all of the way back, remove 2nd screw
from front on left side of the unit.
10. Remove the plasic washer from the screw.
11. Screw and attach the other end of the ground wire to
the unit as shown in picture. Make sure that the toothed
washer is against the cabinet.
12. Slide the unit completely to the rear to ensure a good
seal, making sure the ground wire does not become tangled.
13. Seal & frame the unit as described on page 22.
14. If you have difficulty with mounting the grille to the
sleeve, follow the instructions for direct mounting on
page 21.
INSTALLATION INSTRUCTIONS (CONTINUED)
Wall Sleeve Brands:
13
