Carrier OMNIZONE 50XCA06-24 - Manual (Page 6)

6
C
4.9 (1"-2" FLTR)
E
D
B
1.2
OUTDOOR RTN
AIR FLOW
INDOOR RTN
AIR FLOW
FILTER ACCESS
(BOTH SIDES)
COND VFD
(OPT)
A
F
I
G
H
T
U
V
S
S
S
V
K
J
M
L
13.2
N
N
N
Q Q
O
R
R
P
S S
V V
T
U
TOP VIEW
RIGHT VIEW
REAR VIEW
INDOOR
SUPPLY
AIR FLOW
CONDENSER
DISCHARGE
REAR VIEW 50XCA24 50XCA16
NOTE: Dimensions are in inches.
UNIT
50XCA
WIDTH HEIGHT DEPTH
COND
SECTION
EVAP
SECTION
EVAP RETURN DUCT EVAP RETURN DUCT
EVAP SUPPLY DUCT
(Blower Opening)
COND DISCHARGE
DUCT (Blower Opening)
A B C D E F G H I J K L M N O P Q R S T U V
16 88.0 90.1 31.0 54.5 35.5 81.0 31.8 56.7 5.5 80.0 32.8 1.5 5.7 12.5 13.8 8.5 13.5 11.7 18.9 16.2 36.5 16.2
24 88.0 100.1 31.0 60.5 39.5 81.5 35.8 62.6 5.5 80.0 38.5 1.5 5.7 14.9 13.8 8.6 8.3 13.2 15.0 16.2 42.0 8.3
a50-8502

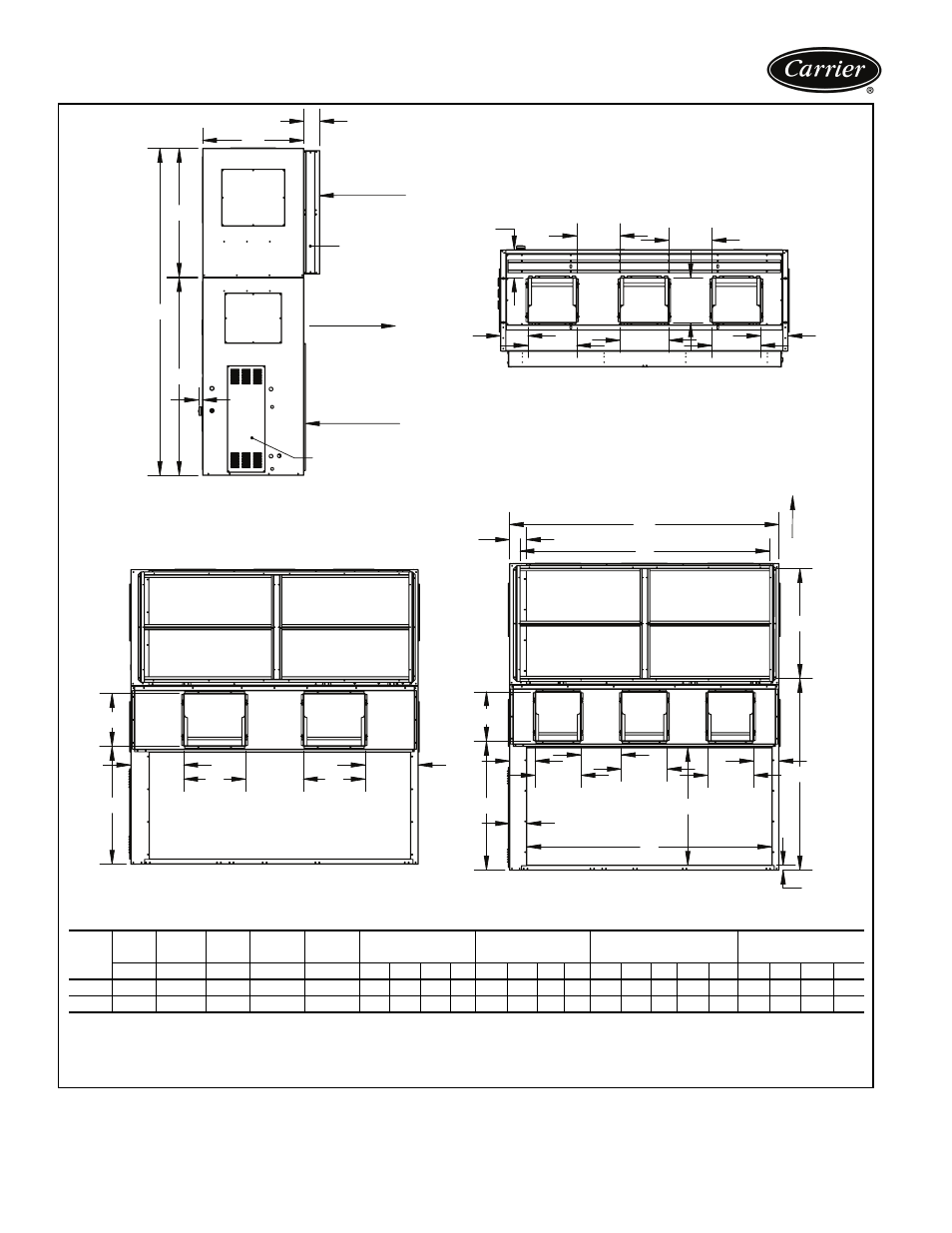

Dimensions — 50XCA16,24
