UNIT ELECTRICAL CHARACTERISTICS
UNIT WEIGHT
UNIT HEIGHT
IN. [MM]
"A"
CENTER OF GRAVITY
IN. [MM]
lb kg X Y Z
50JS018 208/230-1-60 283 128.4 37.02 [940.3] 19.5 [495.3] 16.8 [425.5] 15.0 [381.0]
50JS024 208/230-1-60 289 131.1 39.02 [991.1] 18.5 [469.9] 16.8 [425.5] 15.0 [381.0]
50JS030 208/230-1-60, 208/230-3-60 287 130.2 39.02 [991.1] 19.5 [495.3] 17.5 [444.5] 15.0 [381.0]
50JS036 208/230-1-60, 208/230-3-60, 460-3-60 291 132.0 37.02 [940.3] 19.5 [495.3] 17.8 [450.9] 13.0 [330.2]
50JS042 208/230-1-60, 208/230-3-60, 460-3-60 323 146.5 37.02 [940.3] 19.5 [495.3] 17.8 [450.9] 13.0 [330.2]
50JX024 208/230-1-60 299 135.6 41.02 [1041.9] 19.0 [482.6] 18.3 [463.6] 16.0 [406.4]
50JX030 208/230-1-60,208/230-3-60 320 145.2 37.02 [940.3] 20.0 [ 508] 19.3 [ 489.0] 17.6 [447.0]
50JX036 208/230-1-60,208/230-3-60, 460-3-60 328 148.8 37.02 [940.3] 20.0 [508] 19.0 [482.6] 16.5 [419.1]

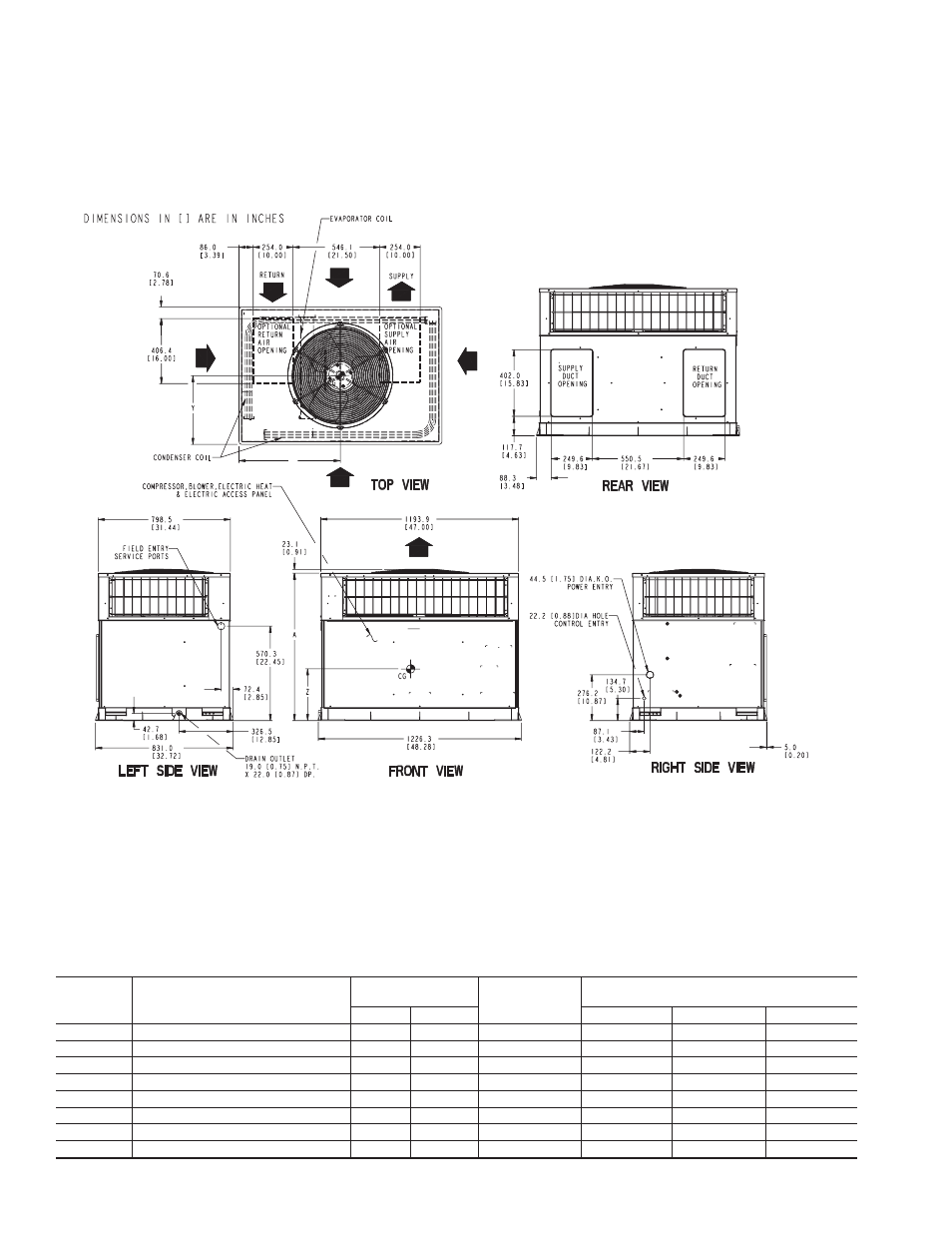

Fig. 2—50JS018-042/50JX024-036 Unit Dimensions
C99007
REQUIRED CLEARANCE FOR OPERATION AND SERVICING
INCHES [mm]
EVAP. COIL ACCESS SIDE............................................................36.00 [914.0]
POWER ENTRY SIDE....................................................................42.00 [1066.8]
(EXCEPT FOR NEC REQUIREMENTS)
UNIT TOP .......................................................................................48.00 [1219.2]
SIDE OPPOSITE DUCTS ..............................................................36.00 [914.0]
DUCT PANEL .................................................................................12.00 [304.8] *
*MINIMUM DISTANCES: IF UNIT IS PLACED LESS THAN 304.8 [12.00] FROM
WALL SYSTEM, THEN SYSTEM PERFORMANCE MAYBE COMPROMISE.
REQUIRED CLEARANCE TO COMBUSTIBLE MATL.
INCHES [mm]
TOP OF UNIT ...................................................................................14.00 [355.6]
DUCT SIDE OF UNIT.........................................................................2.00 [50.8]
SIDE OPPOSITE DUCTS ................................................................14.00 [355.6]
BOTTOM OF UNIT .............................................................................0.50 [12.7]
ELECTRIC HEAT PANEL .................................................................36.00 [914.4]
NEC. REQUIRED CLEARANCES.
INCHES [mm]
BETWEEN UNITS, POWER ENTRY SIDE ....................................42.00 [1066.8]
UNIT AND UNGROUNDED SURFACES, POWER ENTRY SIDE .36.00 [914.0]
UNIT AND BLOCK OR CONCRETE WALLS AND OTHER
GROUNDED SURFACES, POWER ENTRY SIDE.........................42.00 [1066.8]
