11

DIReCTIOnS FOR USe

All casters should be locked during use with a patient.

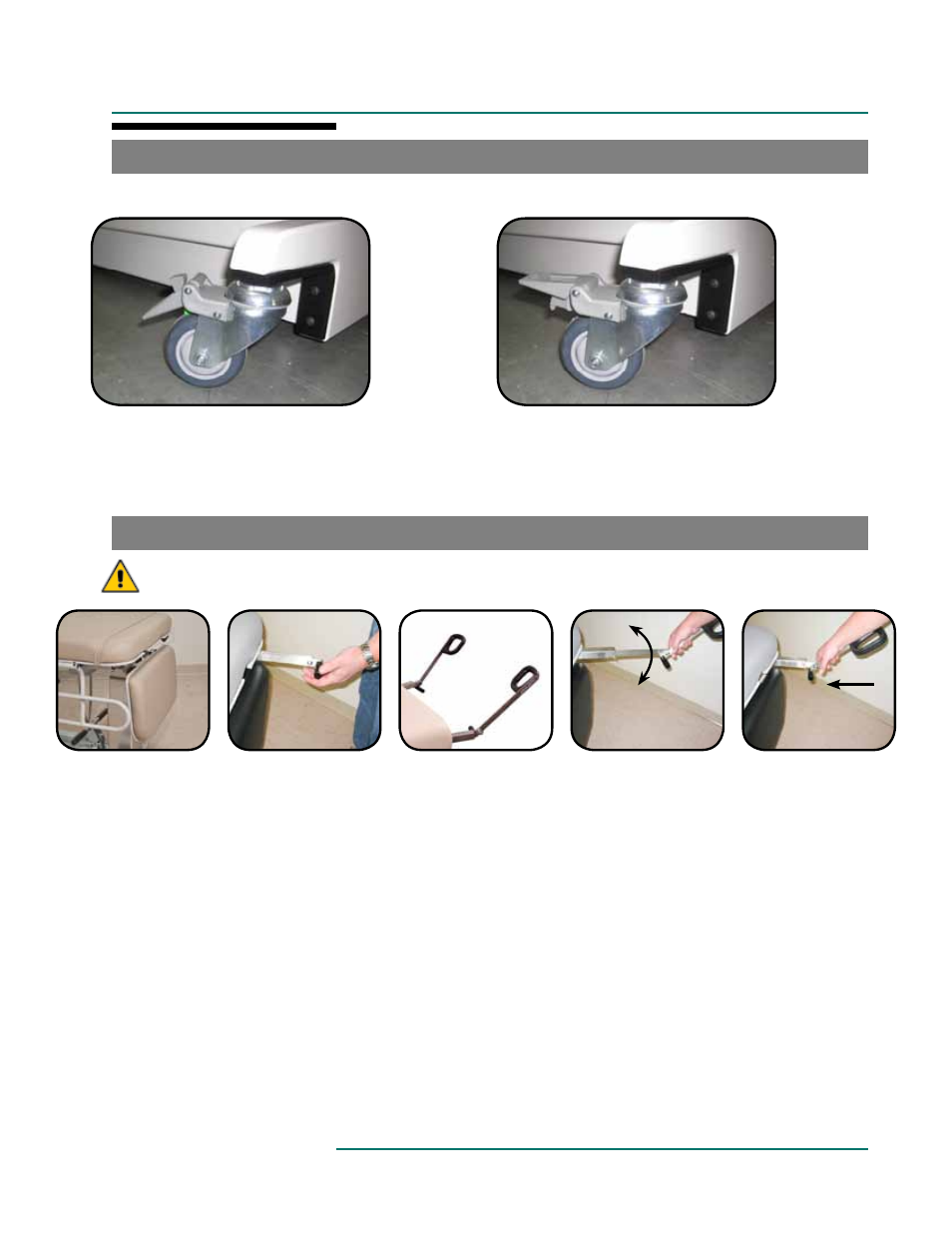

lOCKInG CASTeRS USe

lOCKInG The CASTeRS

1. Place your shoe on the end of the casters locking tab.

2. Press firmly downward until you here a clicking noise

and the caster is locked.

Un-lOCKInG The CASTeRS

1. Place your shoe on top of the casters locking tab.

2. Press firmly inward and downward until you here a click-

ing noise and the caster is unlocked.

1. Fully lower the manual

adjustable foot rest to allow

access to the stirrup.

3. Fold out to fully open

position.

2. Grasp Stirrup handle &

pull out firmly while lifting

slightly. Pull fully out.

4. To rotate stirrup to the

desired angle, lift slightly

and move to the desired

position. There are 3

detent positions. Stop lift-

ing and move slightly left

or right for the nearest

detent position.

5. To reduce stirrup

length, lift the handle

slightly and push into

desired position. Stirrup

will automatically lock

into nearest detent posi-

tion.

To store stirrups,

lift slightly, rotate towards the middle of the table and

fold the foot rest down. Then lift slightly and push into the storage position.

ReTRACTAble FOOT ReSTS (STIRRUP) USe

CAUTIOn

Pinch Point - Keep fingers away from pinch point.
