16

4.4.2 DELTA (LPZ)

No mounting bracket is required. Mount the
main lift sensor as illustrated in Figure 16.
Ensure sensor cable is securely fastened with
cable ties.

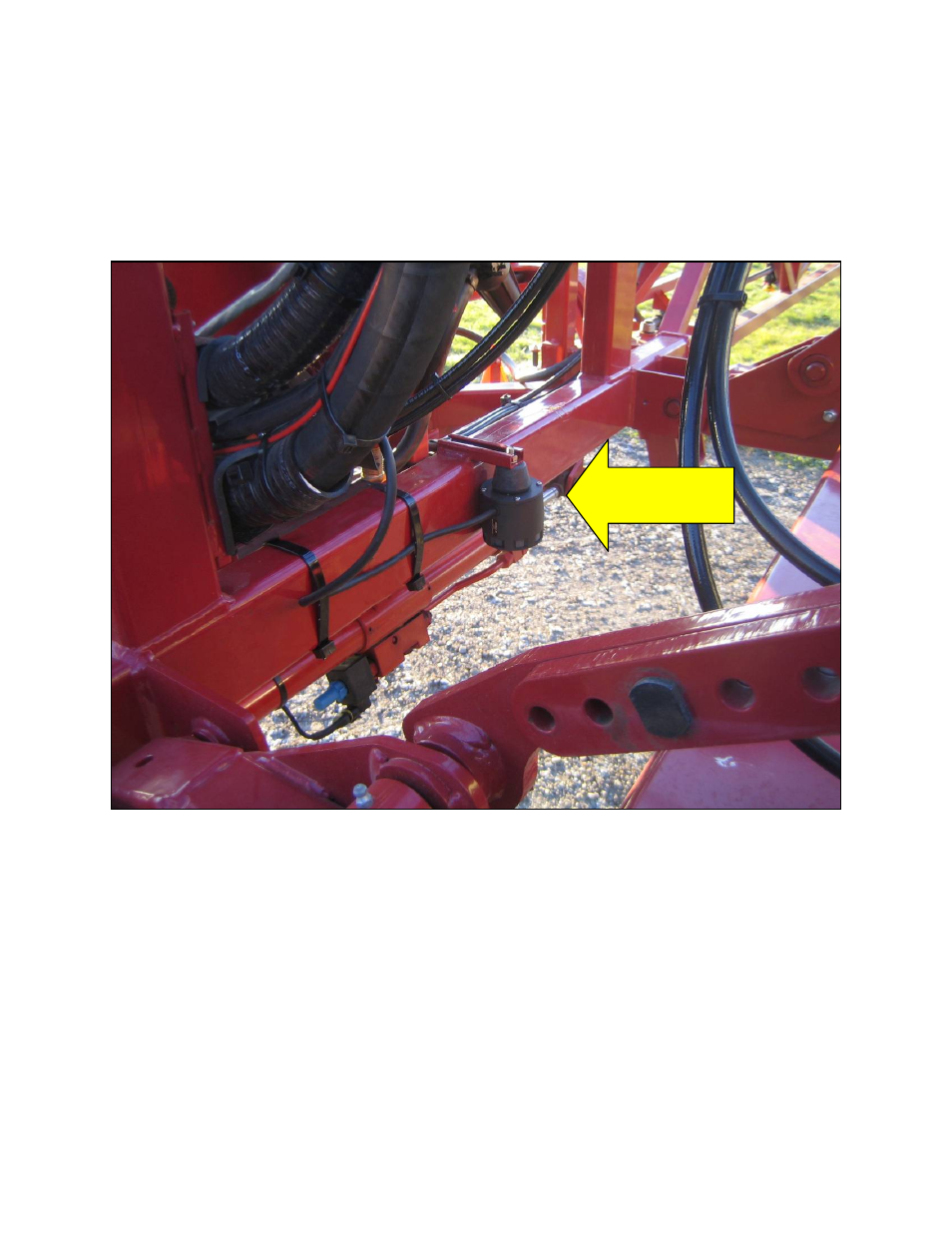

Figure 16: Main Lift Sensor Mounting on LPZ Center-Part
