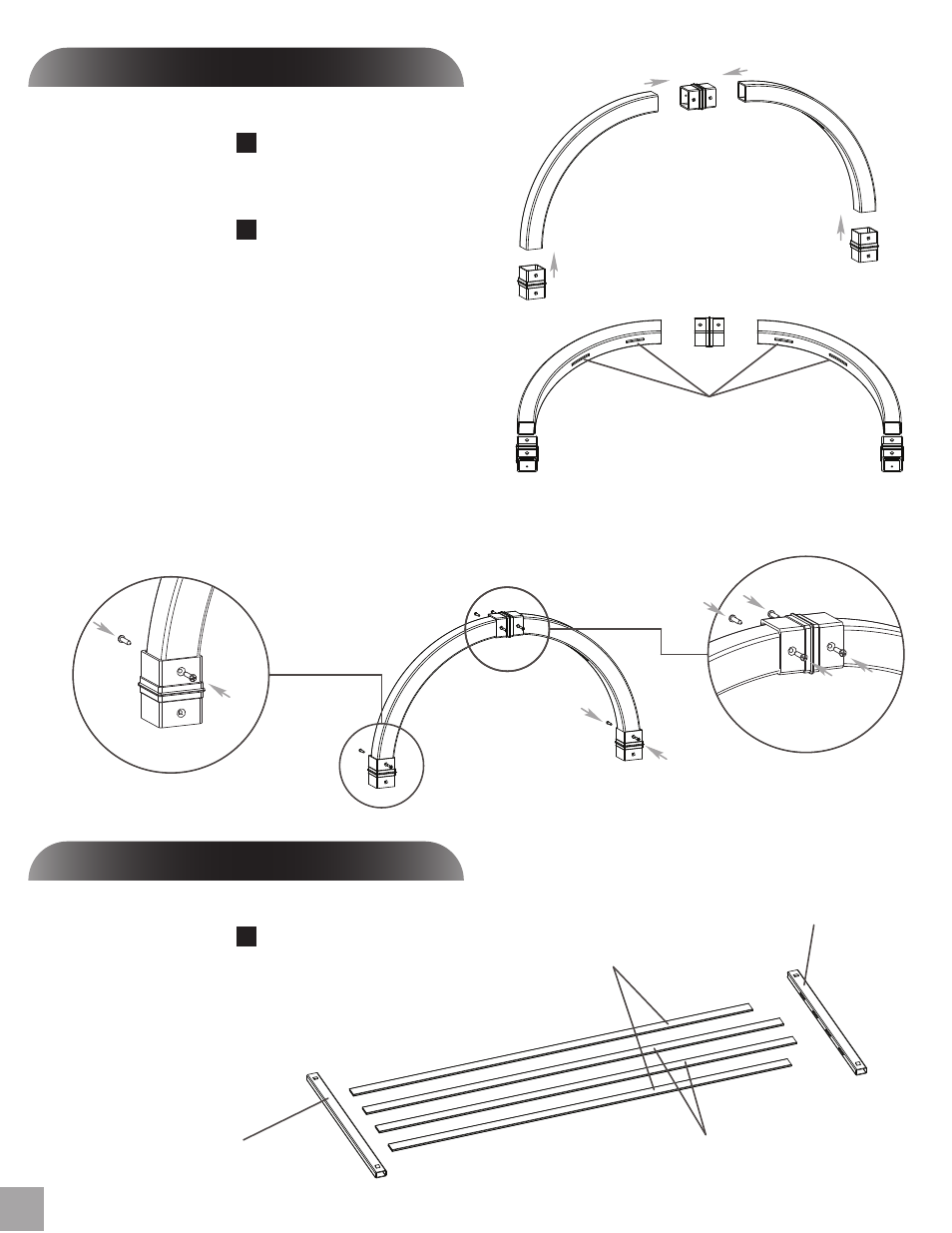

Insert the top arches into the post caps as shown. Note the
locations of the routed holes on bottom of the arches.
Insert until the arches ‘bottom out’ on the post caps.
With 8 of the provided screws, fasten the post caps on
both sides to the arches as shown.
1
2
S T E P O N E
Assemble the Top Arch
Wa v e r l e y Tr e l l i s I n s t r u c t i o n s
1
Bottom View
Routed Holes
2
Layout the top rail, bottom rail, and vertical spindles as shown.
Note the difference between the top and bottom rail, as well
as the different lengths of the vertical spindles.
1
S T E P T W O
Assemble the Trellis
1
Short
Long
Top Rail
(Holes on both top and bottom of rail)
Bottom Rail
(Holes only on top of rail)
