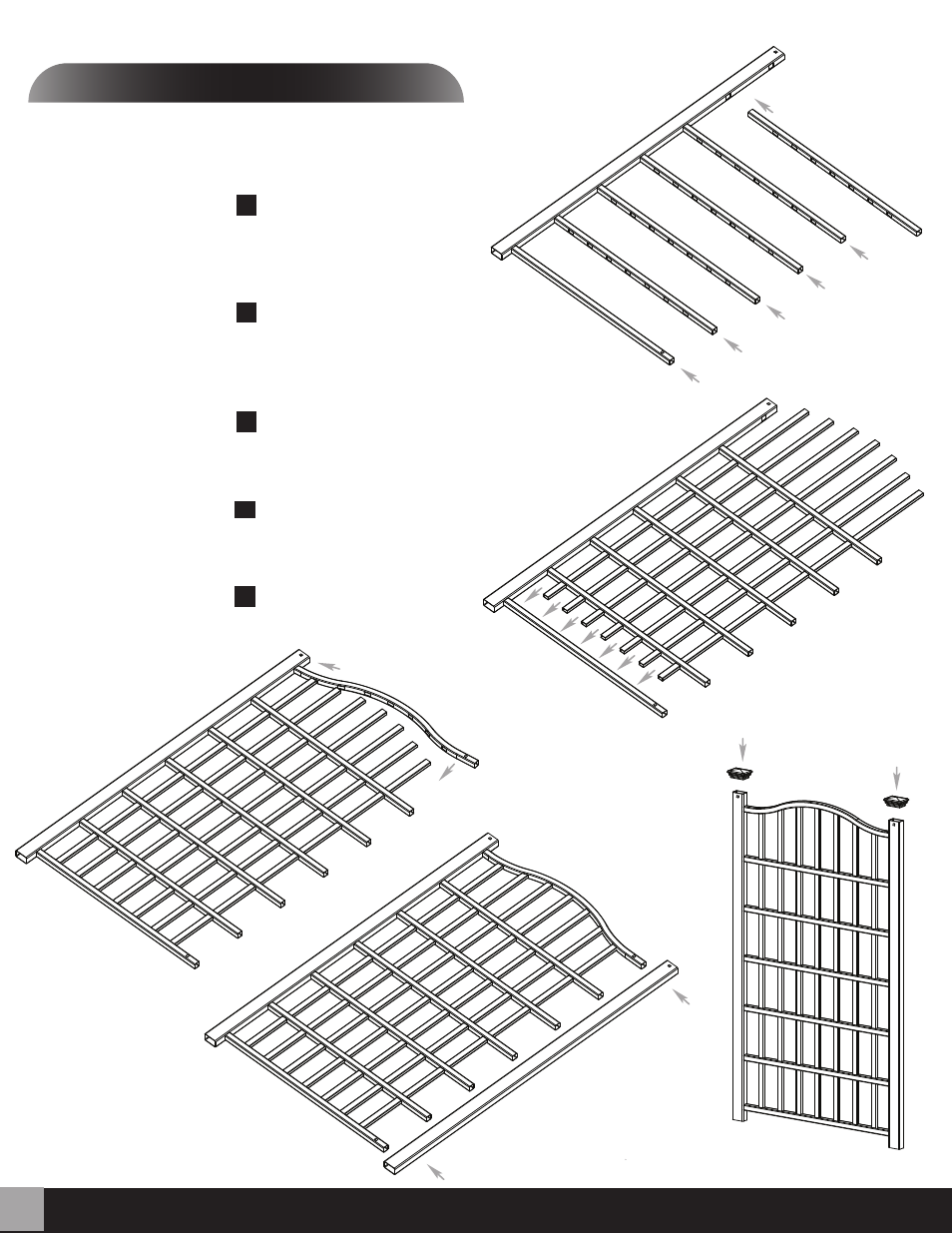

Lay one of the posts on the ground and insert the bottom
rail and the five horizontal rails as shown aside.
Note the holesorientation and ensure that they all face
the same direction as shown in drawing aside.
Insert the seven vertical spindles as shown aside.
Please note that there are four different lengths of
spindles and they should be inserted according to the
pattern shown (spindles are labeled accordingly).
Continue assembly by inserting the top arched rail end
into the post and progressively into each of the vertical
spindles.
Proceed to attach the second post to the trellis assembly
as shown below. Ensure tabs are inserted all the way into
the posts.
Install the post caps.
1
2
3
4
S T E P O N E
2
3
NOTE: There are locking tabs located at the ends of the
horizontal rails. Once inserted and pushed into the routed
holes, they will lock into place.
1
2
3
4
1
2
3
4
Insert 1st
