UG_1x66B_002 73M1866B/73M1966B GUI User Guide
Rev. 1.1 13

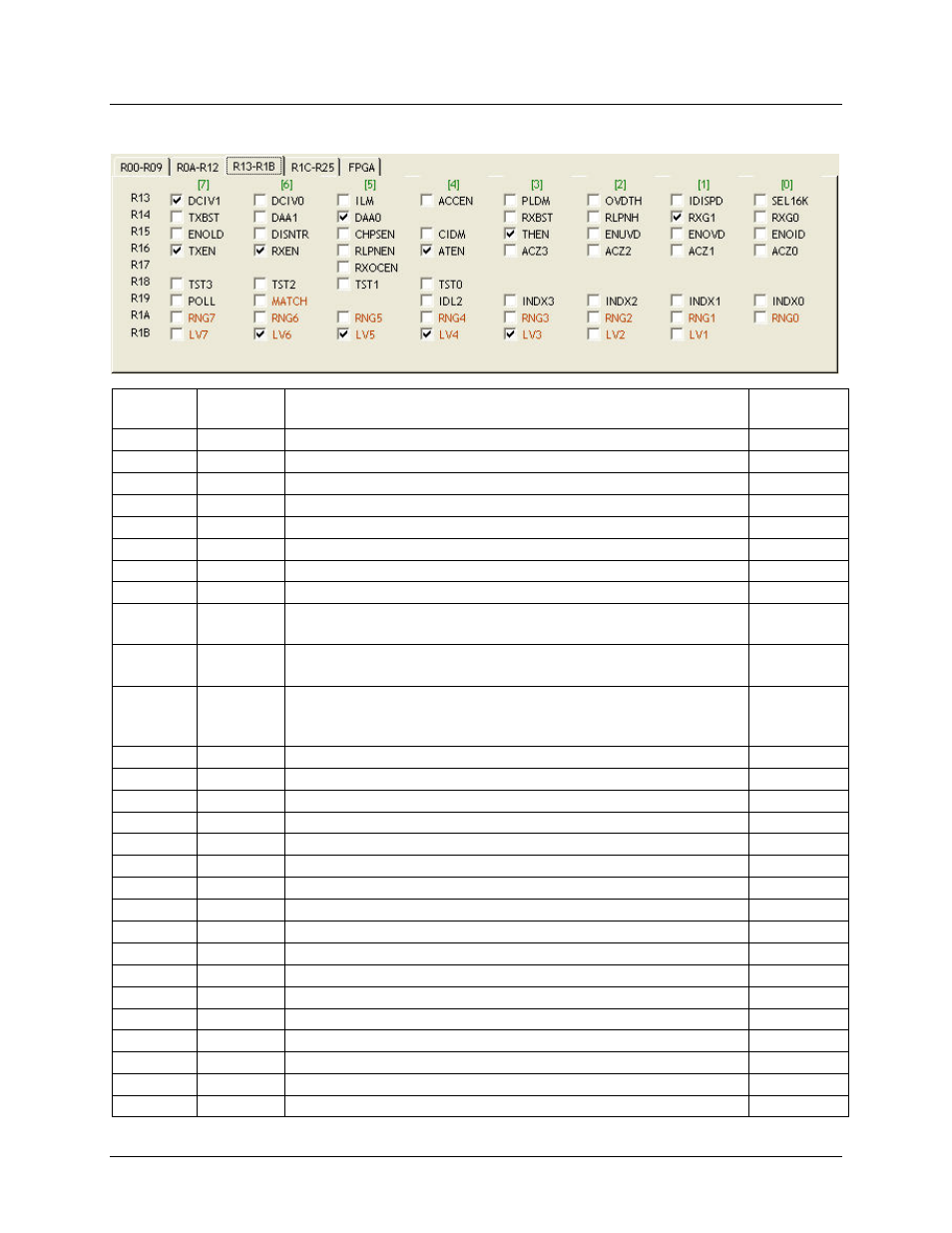

2.2.3 Controls for Registers R13 to R1C
Register Bit Name Summary Description Data Sheet
Section
R13[7:6] DCIVn DC Current Voltage Characteristic Control 10.6
R13[5] ILM Current Limit Enable – 0 = no limit, 1 = 42 mA current limit 10.6
R13[4] ACCEN AC Cancellation Enable 10.6
R13[3] PLDM Pulse Dialing Enable 10.6
R13[2] OVDTH Over-Voltage Threshold 11.12
R13[1] IDISPD Discharge and Pulse Dialing 10.6
R13[0] SEL16K Sample Rate Mode Configuration Select 8.8
R14[7] TXBST Transmit Boost 8.8
R14[6:5] DAAn Data Access Arrangement
Used with TXBST to manage transmit level. 8.8
R14[3] RXBST Received Boost
If set to 1, receive signal is increased by 20 dB. 8.8
R14[2] RLPNH Receive Low Pass Notch
0 = Selects Receive Low Pass Notch (RLPN) at 12 kHz.
1 = Selects RLPN at 16 kHz. 10.6
R14[1:0] RXGn Receive Gain Control 8.8
R15[7] ENOLD Enable Over-Load Detector 11.12
R15[6] DISNTR Disable No-Transition Timer 11.12
R15[5] CHPSEN Enable Chopper Stabilization 10.6
R15[4] CIDM Caller ID Mode 11.12
R15[3] THEN Enable Transhybrid Circuit 10.6
R15[2] ENUVD Enable Under Voltage Detector 11.12
R15[1] ENOVD Enable Over-Voltage Detector 11.12
R15[0] ENOID Enable Over-Current Detector 11.12
R16[7] TXEN Transmit Path Enable 8.8
R16[6] RXEN Receive Path Enable 8.8
R16[5] RLPNEN Receive Low Pass Notch Enable 10.6
R16[4] ATEN Active Termination Loop Enable 10.6
R16[3:0] ACZn Active Termination Loops 10.6
R17[5] RXOCEN Rx DC Offset Calibrate Enable 8.8
R18[7:4] TESTn Enable Loopback Mode 12.7
R19[7] POLL Polling Enable 6.1
