78M6610+LMU Evaluation Kit User Manual
Rev 1 17

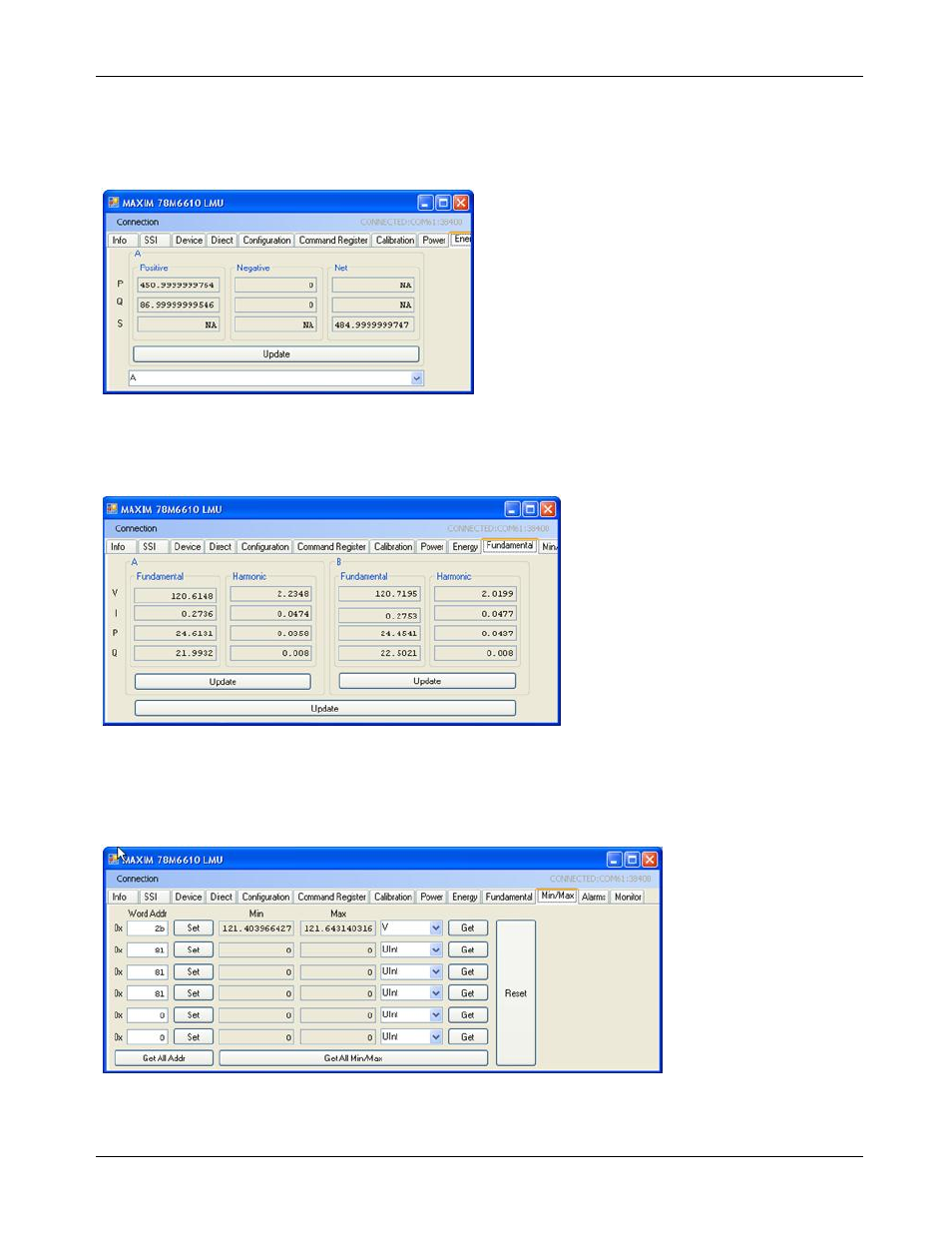

5.1.8 Energy Tab
The Energy tab displays the accumulated power both into and out of the load. The pull-down menu is used to
select the channel that is being displayed; A, B, or C, and update is used to update the displayed data
5.1.9 Fundamental Tab
The Fundamental tab is used to display the fundamental and harmonic measurements for voltage, current,
and power. The harmonics displayed can be selected with the get/set harmonic buttons.
5.1.10 Min/Max Tab
The Min/Max tab is used to display the minimum and maximum measurements for the parameters selected in
the Word Addr column. The units can be selected with the provided pull-down menu and the most recent
measurements are updated using the get buttons. All the measurements are reset with the reset button.
