5.1.6 Calibration Tab

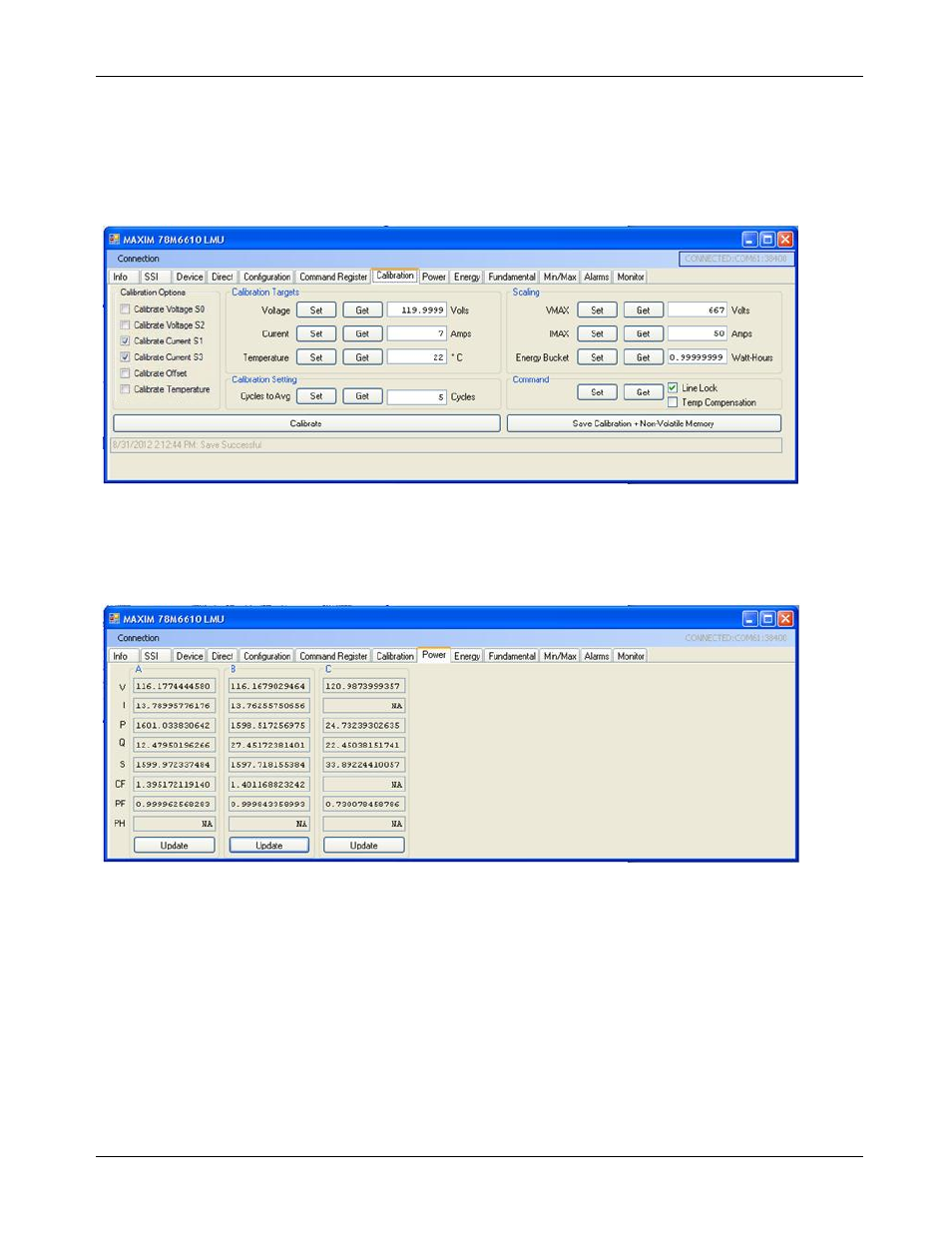

The Calibration tab is used to configure and execute calibration commands. The calibration targets can be
viewed and changed and the scaling parameters are also displayed for convenience.
The calibration and NVRAM are also saved using the provided button.
5.1.7 Power Tab
The Power tab displays the current power being consumed by the loads. P (active power), Q (reactive power),
and S (apparent power) are displayed along with the voltage, current, crest factor, and power factor are also
displayed.
