Rev: 03.17.2014 LCI Motorized Leveling (2009 - Present) Owner's Manual
Page 8

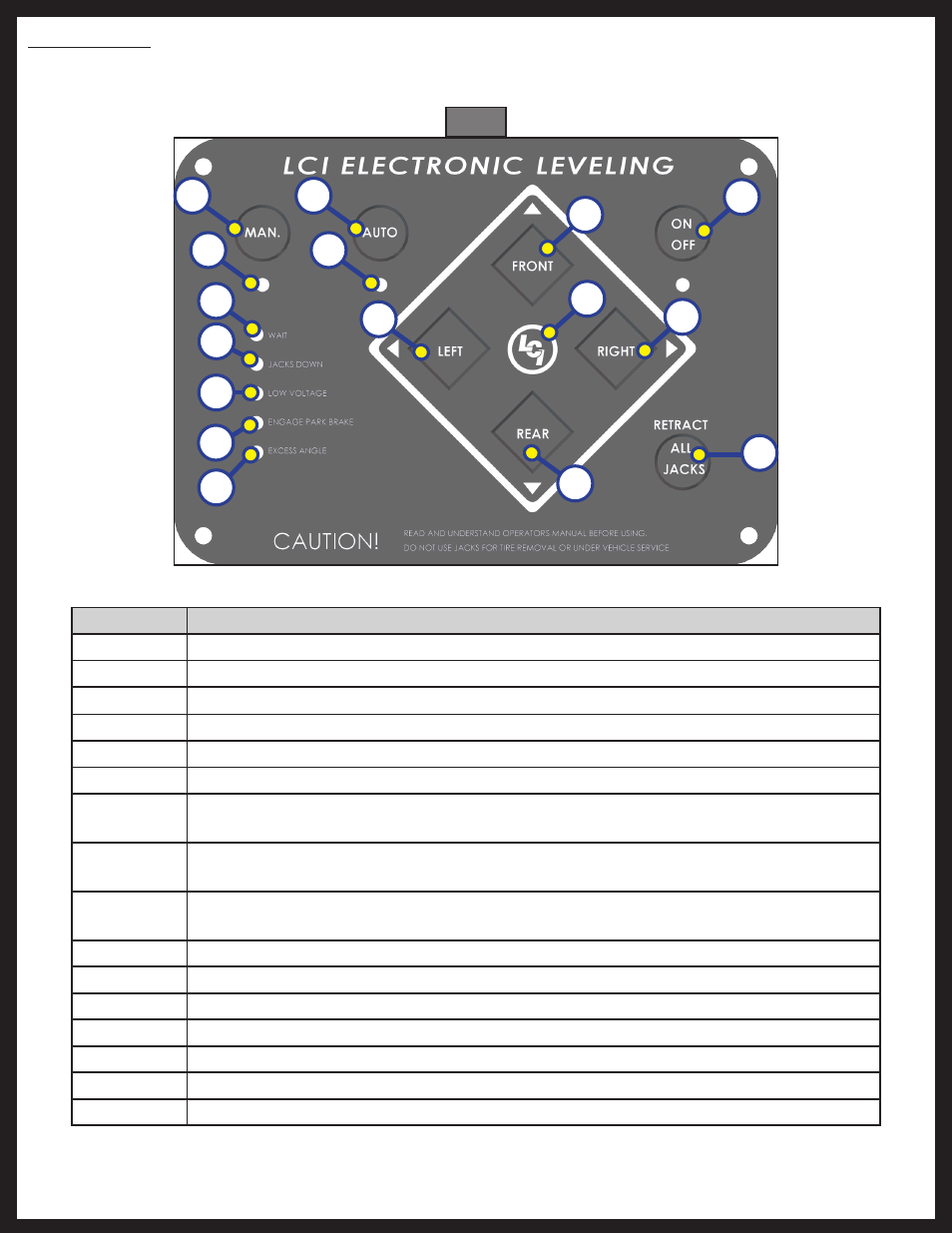

Fig. 3
A C
J
O
L K
M
P
E
F
G
I
H
N
B D
Callout Description
A Manual Operation - Places control panel in manual operation mode.
B Manual Operation LED - Indicates control panel in manual operation mode.
C Automatic Operation - Places control panel in automatic operation mode.
D Automatic Operation LED - Indicates control panel in automatic operation mode.
E Wait LED - Indicates to the operator to pause operation until the LED turns off.
F Jacks Down LED - Indicates jacks are not fully retracted.
G
Low Voltage LED - Indicates voltage has dropped below safe operable level. Solid
LED indicates voltage is too low to operate system.
H
Engage Park Brake LED - Flashes when park brake is disengaged; off when park
brake has been engaged.
I
Excess Angle LED - Coach may not be able to level in current location and must be
moved to a more level location.
J Front Button - Controls operation of both front jacks.
K Left Button - Controls operation of both left jacks.
L Right Button - Controls operation of both right jacks.
M Rear Button - Controls operation of both rear jacks.
N Coach Level LED - Indicates that the coach has been leveled.
O Power Button - Turns system on and off.
P Retract All Jacks - Retracts all jacks automatically. See page 12 for retract procedures.
Control Panel
