Lippert Components LCI Motorized Leveling (2009 - Present) - Manual (Page 7)

Rev: 03.17.2014 LCI Motorized Leveling (2009 - Present) Owner's Manual
Page 7
Aluminum Jacks

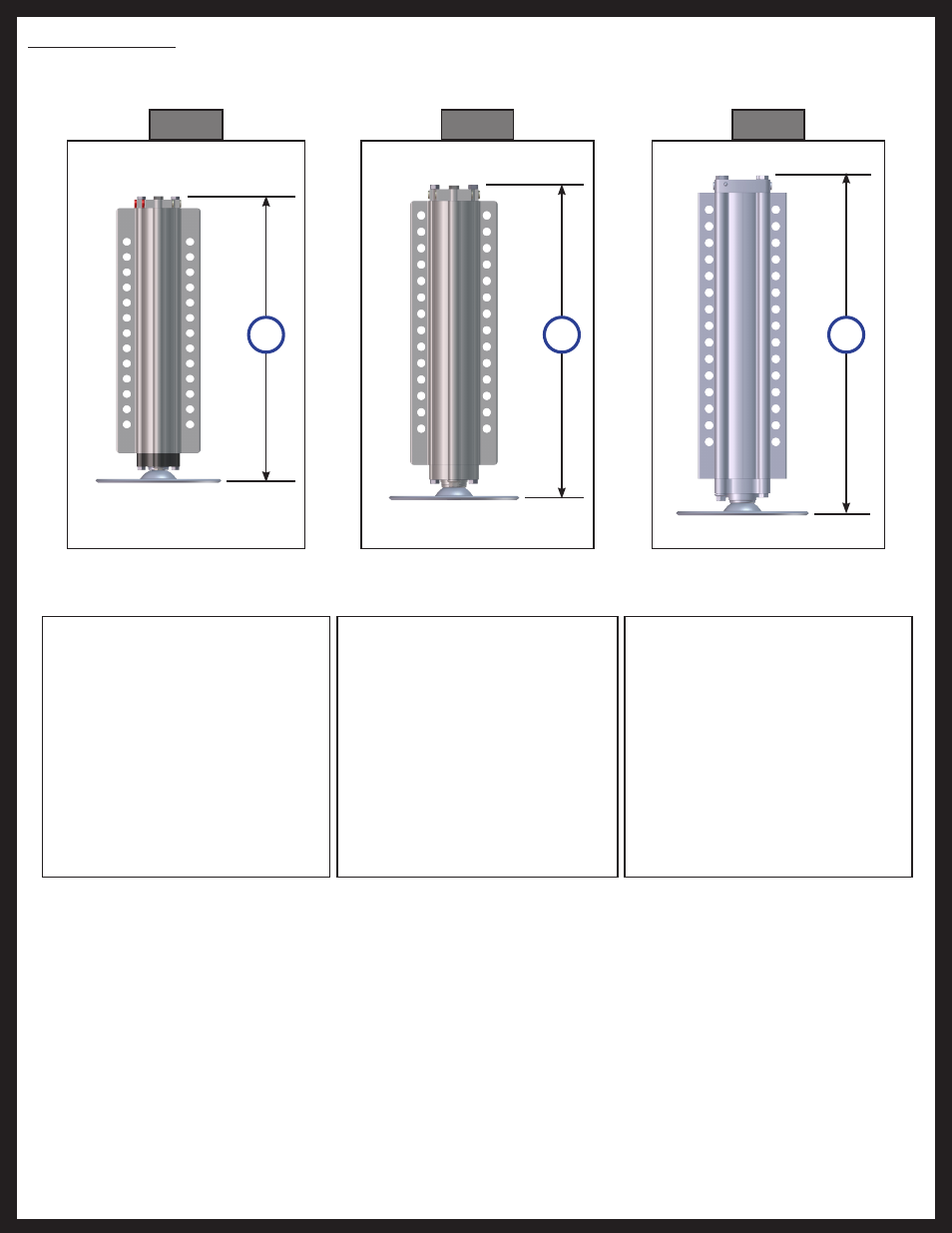

Fig. 2A - 195860
CAPACITY - 8,000 lb.
STROKE - 15.00 in.
BORE - 2.00 in.
H - 21.375 in.
ROD DIA. - 1.50 in.
9” FOOT PAD-STANDARD
12” FOOT PAD-OPTION - 117238
Fig. 2A Fig. 2B Fig. 2C
Fig. 2B - 236560
CAPACITY - 14,000 lb.
STROKE - 15.13 in.
BORE - 2.50 in.
H - 21.50 in.
ROD DIA. - 1.875 in.
9” FOOT PAD-STANDARD
12” FOOT PAD-OPTION - 117238
Fig. 2C - 258550
CAPACITY - 20,000 lb.
STROKE - 16.00 in.
BORE - 3.00 in.
H - 23.063 in.
ROD DIA. - 2.25 in.
9” FOOT PAD-STANDARD
12” FOOT PAD-OPTION - 117238
H H H
