Plumbing diagram – Lippert Components LCI Motorized Leveling (2009 - Present) User Manual
Page 17
Rev: 03.17.2014
LCI Motorized Leveling (2009 - Present) Owner's Manual
Page 17

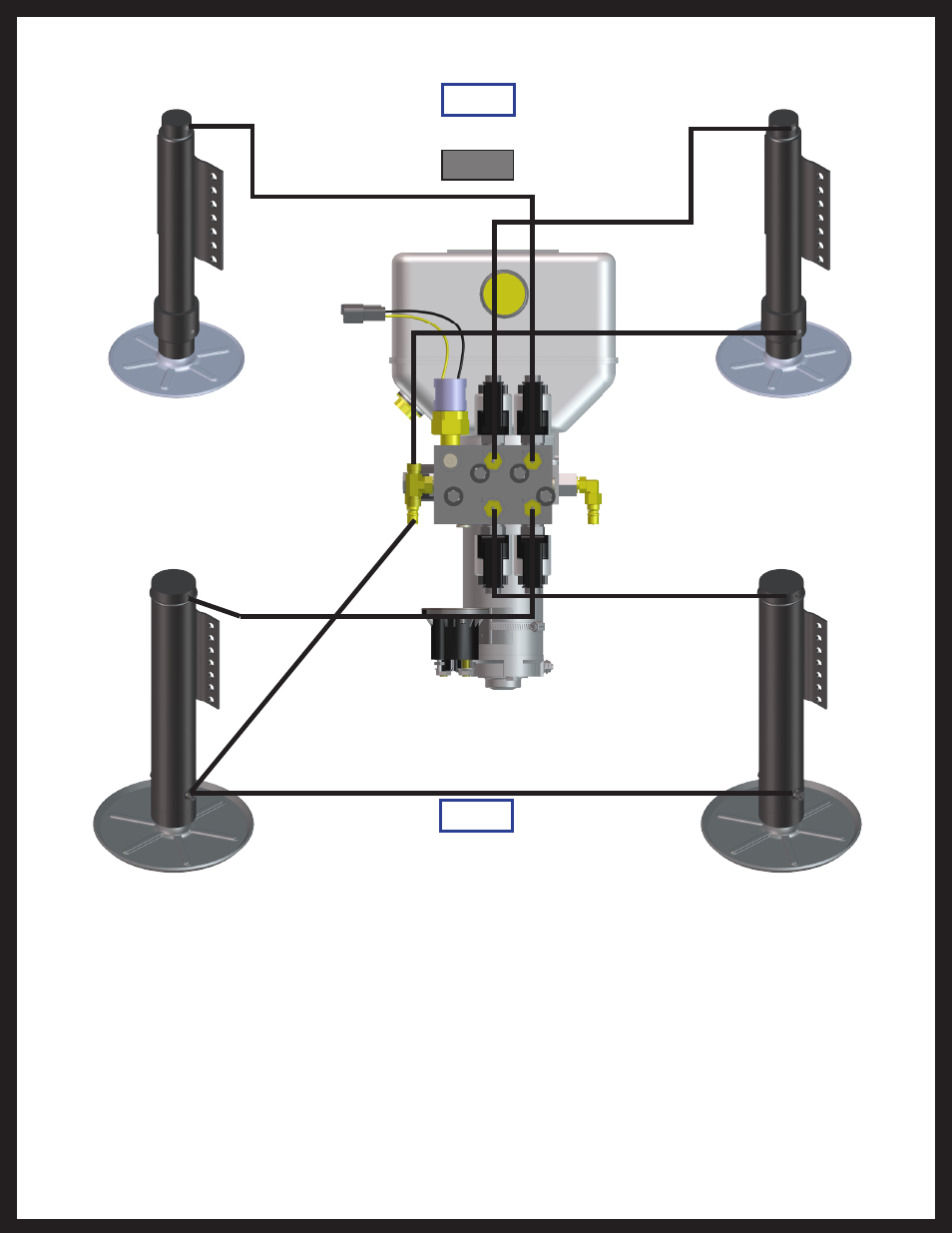

Plumbing Diagram
Fig. 11
Rear
Front
1. Hoses will vary in length by coach model.
2. Measure hose and consult LCI Service. Hose Specs. 3000 p.s.i.; ½” in. I.D.
3. Curbside Front - Black Hose - PURPLE Label & Wire
4. Roadside Front - Black Hose - GREEN Label & Wire
5. Curbside Rear - Black Hose - RED Label & Wire
6. Roadside Rear - Black Hose - BLUE Label & Wire
7. Return - Orange Hose
8. PSI Switch - Yellow Wire into Blue PSI Wire
