Lippert Components LCI Motorized Leveling (2009 - Present) User Manual

Page 6

Rev: 03.17.2014

LCI Motorized Leveling (2009 - Present) Owner's Manual

Page 6

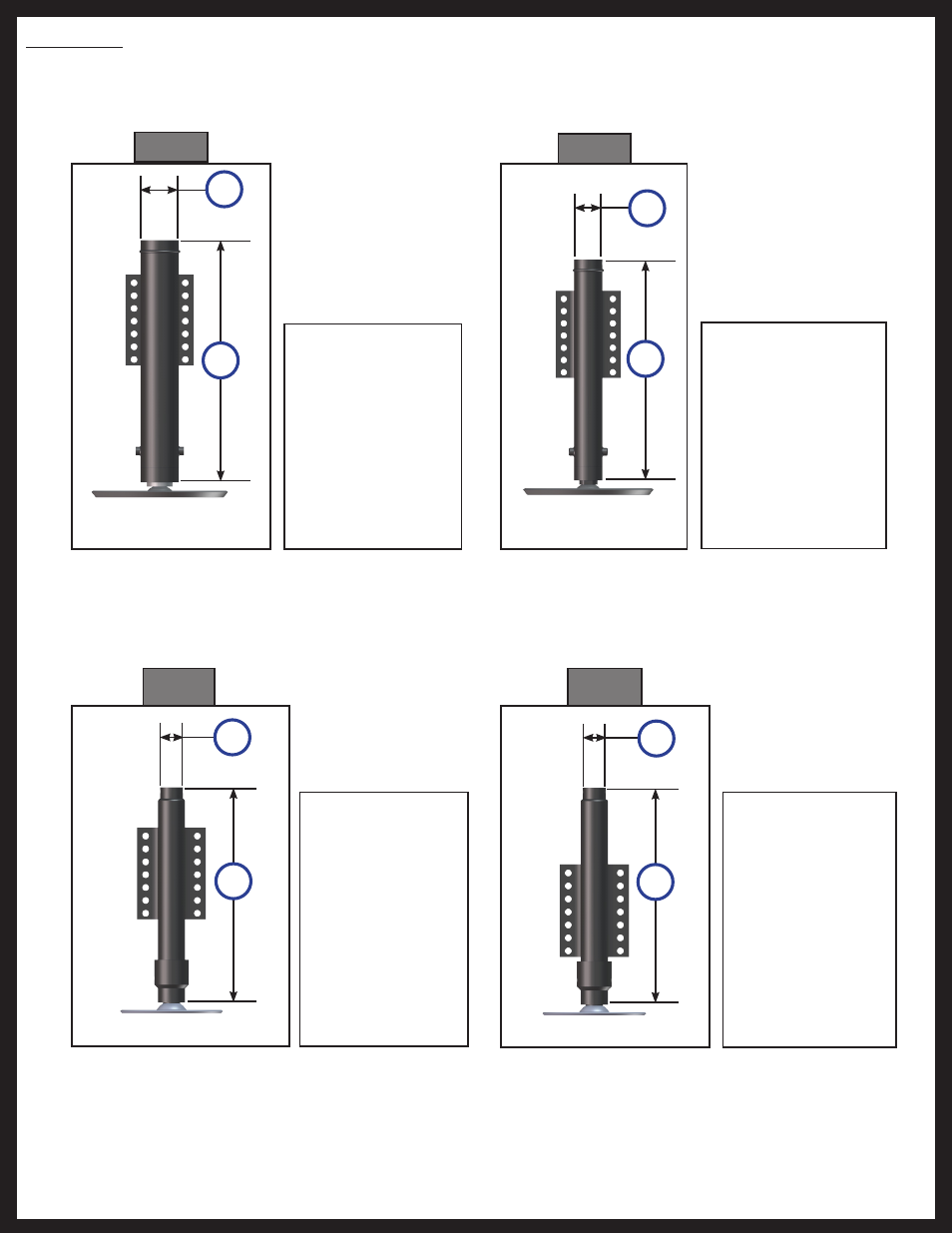

Fig. 1A

Fig. 1B

Fig. 1C

Fig. 1D

Fig. 1A - 115842

CAPACITY - 22,000 lb.
STROKE - 16 in.
H - 20 1/2 in.
D - 3 3/8 in.
12” SHOE-STANDARD

Fig. 1B - 115841

CAPACITY - 12,000 lb.
STROKE - 15 in.
H - 19 1/2 in.
D - 2 3/8 in.
9” SHOE-STANDARD
12” SHOE-OPTIONAL

Fig. 1C - 113314

CAPACITY - 7,000 lb.
STROKE - 13.75 in.
H - 18 1/4 in.
D - 2 3/8 in.
A - 2 1/2 in.
9” SHOE-STANDARD
12” SHOE-OPTIONAL

Fig. 1D - 117179

CAPACITY - 7,000 lb.
STROKE - 13.75 in.
H - 18 1/4 in.
D - 2 3/8 in.
A - 5 3/4 in.
9” SHOE-STANDARD
12” SHOE-OPTIONAL

NOTE: OEM to supply attachment brackets for leveling jacks.

Steel Jacks
