Ultrasonic milk analyser
Operation manual 23.08.10 13/98

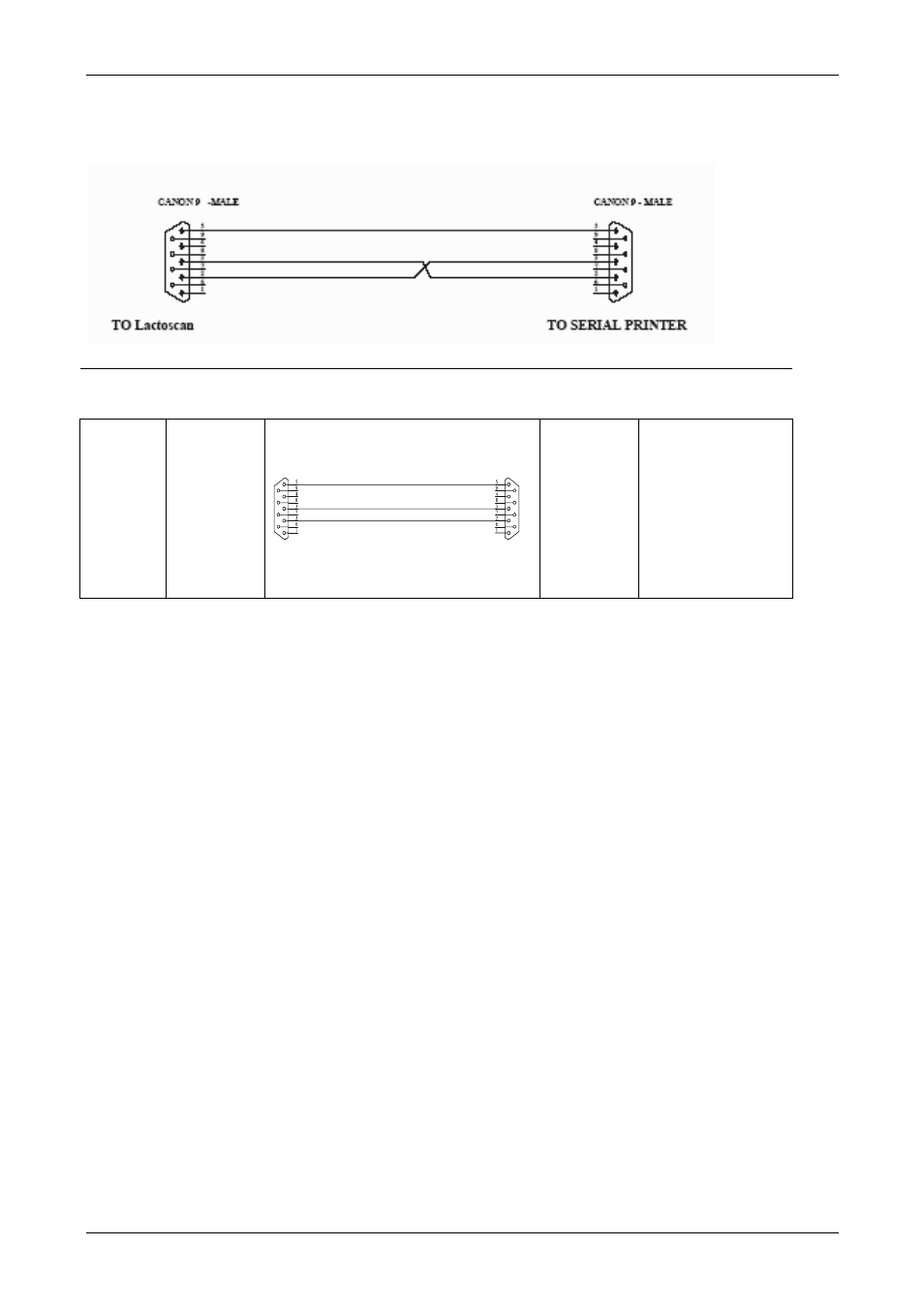

Fig. 5 Cable Description
Art. Number 30011
RS232 Interface Cable - Milk Analyser – Serial Printer
Art. Number 30012
RS232 Interface Cable - Milk Analyser – IBM PC
2. TxD
3. RxD
5. GND
Milk
Analyser
DB 9-pin
male
PC
DB 9-pin
female
2. Receive Data
(RxD)
3. Transmit Data
(TxD)
5. Signal Ground
(GND)
Art. Number 10128
Probe pH with cable
Art. Number 30030
DC 12V Power Supply Milk Analyser Cable
1.
GND
2. No connection
3. No connection
4. 12V DC
The analyzer has an option – embedded USB interface for connection
with computer type IBM PC. It is suitable for connecting laptop computers,
where there’s no standard interface RS 232 (COM Ports). USB interface is
based on elements from company Future Technology Devices International
Ltd. – site: http://www.ftdichip.com. In order to establish connection using this
interface the necessary drivers have to be installed on the corresponding
computer. For this purpose follow the procedure, described in details on the
producer’s Internet site http://www.ftdichip.com/Drivers/VCP.htm, choose the
appropriate for the operation system of the computer drivers. After installation
of the driver, choose СОМ port, which to be used for the real communication
(chosen from the corresponding software tool from LS Service Pack).
