PRO SOLO
INTRODUCTION
Congratulations on your purchase. The PRO SOLO mkII is much more than just a
MIDI to CV converter, incorporating a built in LFO as well as portamento functions.
Please take some time out to read through all the manual to avoid any operational
difficulties.
CONNECTIONS
MIDI In
Plug your MIDI keyboard or sequencer`s MIDI Out into here.
MIDI Thru
Plug this into the MIDI In of another piece of your MIDI equipment should it be necessary.
CV
Plug this into your mono-synth`s input marked CV In, VCO In, KEY VOLT KYBD In, etc. This
controls the pitch of your synth.
GATE
Plug this into your mono-synth`s input marked GATE, V-trig, Trig, S-Trig, etc. This turns the note
on and off on your synth.
AUX
Plug this into your mono-synth`s input marked VCF, fcM, PWM, VCA, Filter, Volume, or any
other external control voltage input. This enables you to control effects such as filter cut-off
from MIDI controllers (Velocity, mod wheel, etc.).
Note; not all mono-synths have additional control inputs.
9V DC
Plug your power adapter into here. The converter will take an adapter with an output of 9
volts DC regulated or unregulated, centre +ve. We recommend a Kenton power supply
which is made especially for the PRO-SOLO but any plug-top supply can be used as long as
the output is 9 volts DC.
WARNING - Do not use an adaptor with an output voltage higher than 9V. The SOLO must not share an adaptor
with any other device. Failure to observe this will invalidate your warranty, and will probably damage the other
device, the PRO-SOLO and/or the power supply.

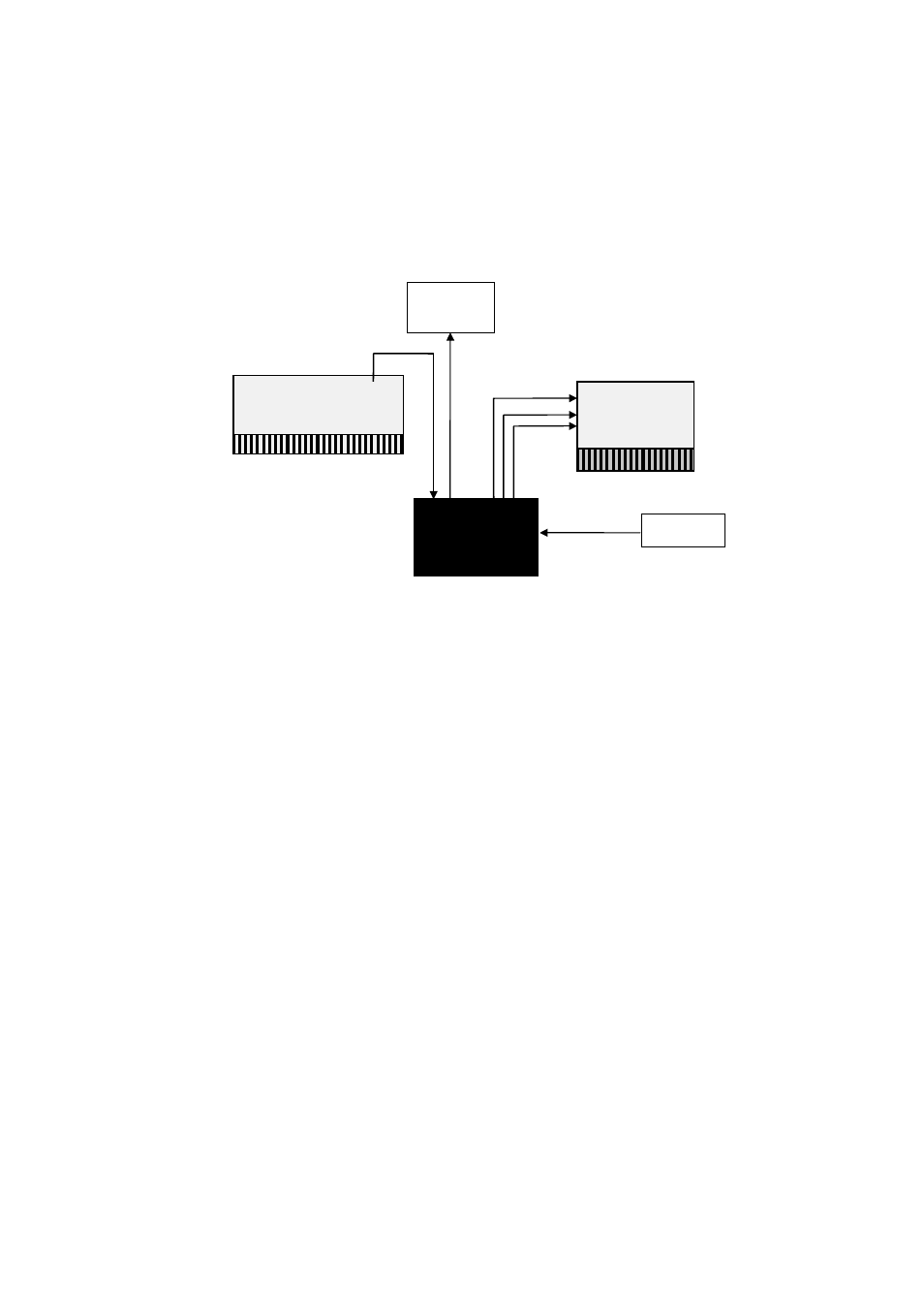

MIDI Master
keyboard/computer Analogue
synth
MIDI out
AUX,
Gate, CV
Filter, Gate, CV
MIDI
In
To the MIDI In
of your other
MIDI keyboard
MIDI
Thru
9 volt external
power adapter
