MODELS
WSB920
WSB940
WSB950
WSB960
Performance characteristics
Batch size lbs {g}
19.8 {9000}
19.8 {9000}
19.8 {9000}
19.8 {9000}
Maximum throughput lbs/hr
{kg/hr}*
5200 {2359}
3300 {1487}
2492 {1132}
2124 {965}
Bin capacity - main ingredient
ft
3
{liter}
6.7 {189.7}
6.7 {189.7}
6.7 {189.7}
NA
Bin capacity - minor ingredient
ft
3
{liter}
NA
3.8 {107.6}
3.8 {107.6}
3.8 {107.6}
Maximum number of materials
6
8
9
10
Number of discharge valves
2
4
5
6
Number of additive feeders
up to 4
up to 4
up to 4
up to 4
Control software (# of components)
4 or 12
4 or 12
12
12
Dimensions inches {mm}
A - Height above mounting plate
74 {1880.7}
74 {1880.7}
74 {1880.7}
74 {1880.7}
B - Width†
56 {1421.4}
56 {1421.4}
56 {1421.4}
56 {1421.4}
C - Depth†
34.4 {875.3}
34.4 {875.3}
34.4 {875.3}
34.4 {875.3}
D - Controller height
11.25 {285.75}
11.25 {285.75}
11.25 {285.75}
11.25 {285.75}
E - Controller width
12.25 {311.15}
12.25 {311.15}
12.25 {311.15}
12.25 {311.15}
F - Controller depth
8.19 {208.03}
8.19 {208.03}
8.19 {208.03}
8.19 {208.03}
Weight lbs {kg}
Installed
480 {218}
480 {218}
480 {218}
480 {218}
Shipping
600 {272.2}
600 {272.2}
600 {272.2}
600 {272.2}
Voltage Running load amps
‡
120V/1 phase/60 hz (control and mixer)
8.5
8.5
8.5
8.5
220V/1 phase/60 hz (control and mixer)
4.3
4.3
4.3
4.3
220V/1 phase/50 hz (control)
0.15
0.15
0.15
0.15
220V/3 phase/50 hz (mixer)
2.2
2.2
2.2
2.2
400V/3 phase/50 hz (mixer)
1.1
1.1
1.1
1.1
Compressed air requirements
Discharge valves
80 psi @ 0.2 ft
3
/min {5.5 bars @ 0.09 liters/sec}; 1/4 in. NPT fitting
Compressed air feeder 40 psi @ 2.0 ft
3
/min {2.8 bars @ 0.94 liters/sec}; 1/4 in. NPT fitting
Maximum loader sizes§
Number of 20 inch loaders
2
2
2
3
Number of 15 inch loaders
2
4
5
6

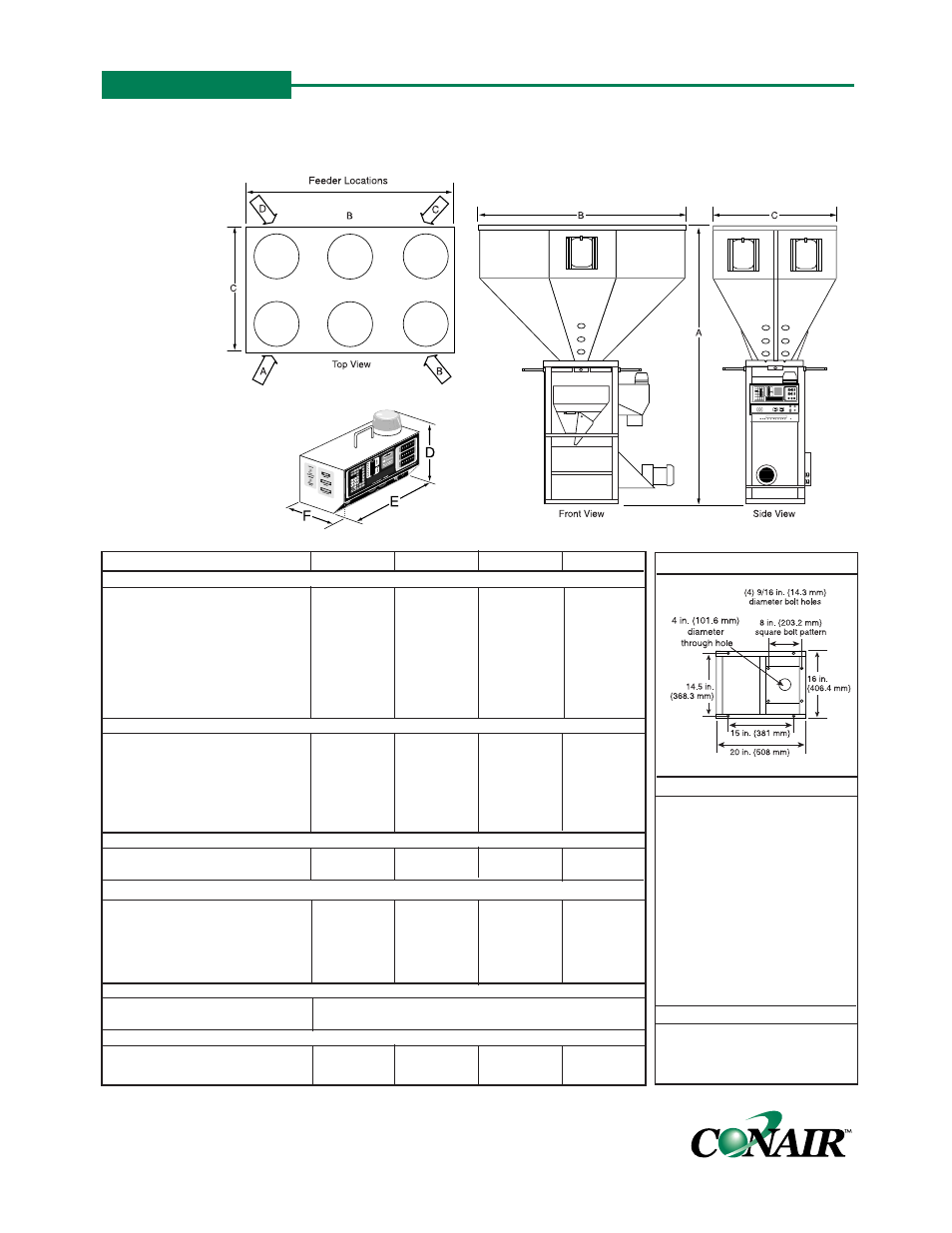

GRAVIMETRIC BATCH BLENDERS
WSB 920, 940, 950 and 960 Models
MOUNTING INTERFACE
SPECIFICATION NOTES:
* Maximum throughput rates are
based on using all dispense
valves. Use of feeders for minor
ingredients will reduce this rate.
† Feeders will increase width and
depth dimensions. Please refer
to feeder specification.
‡
Each auger feeder requires an
additional 1 amp @ 120V or 0.5
amp @ 240V.
§ Maximum loader sizes may be
used only when the loader is
adjacent to loaders of a smaller
size.
APPLICATION NOTE:
We recommend using a flow con-
trol valve when mounting the
blender to a stand, surge bin or
hopper.
SPECIFICATIONS
TPBS004/1199
IB04
CONTROL
NOTE: Loader
configuration is
the same for all
models.
APPENDIX B
